Cisco MDS 9148T Installing

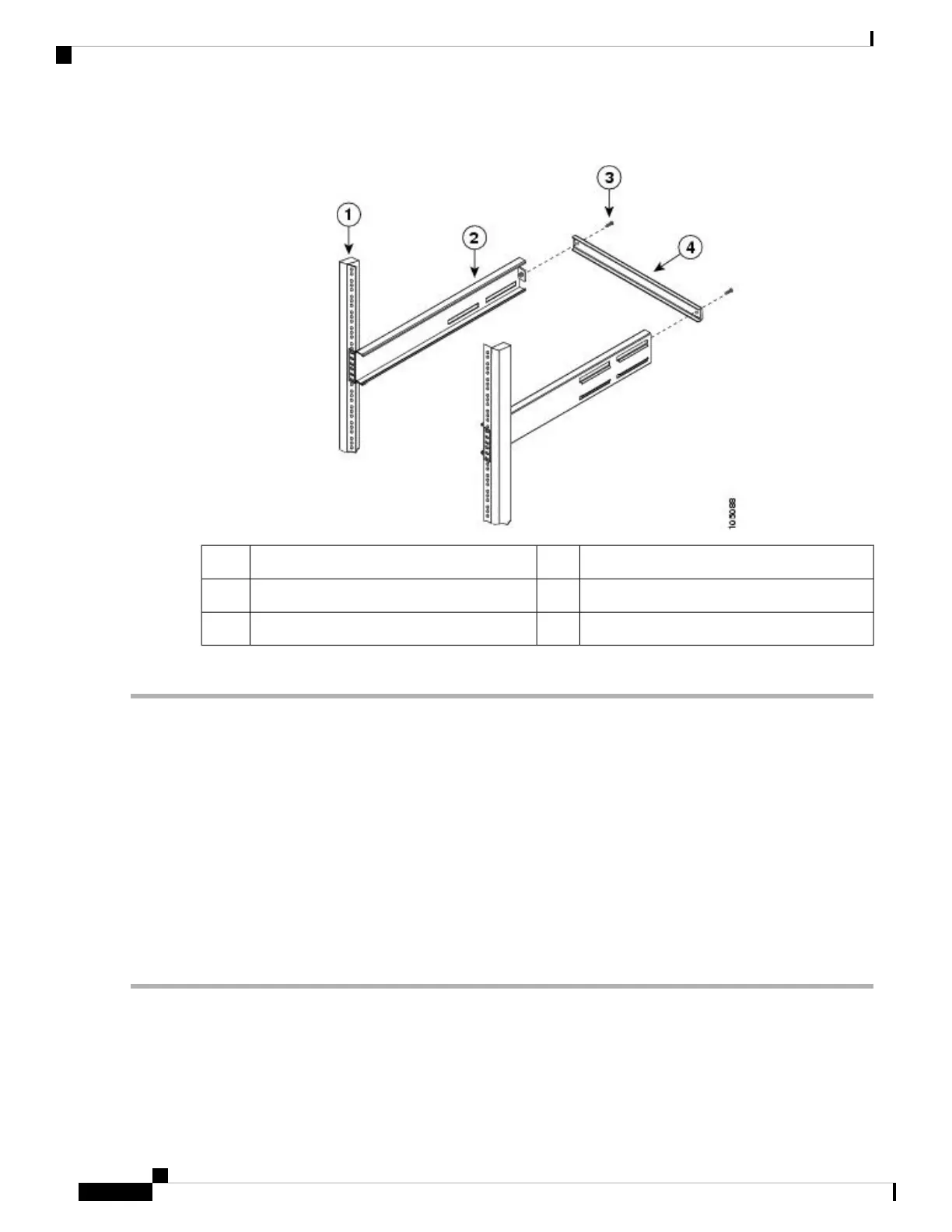

Figure 2: Installing the Shelf Bracket Kit into an EIA Rack
Crossbar4Rack-mounting post1
10-32 screws5Shelf bracket2
Slider post3
To install the shelf brackets in an EIA rack, follow these steps:
Step 1 Position a shelf bracket inside the rack-mounting posts, as shown in Figure 2: Installing the Shelf Bracket Kit into an
EIA Rack, on page 4. Align the screw holes at the front of the shelf bracket with the holes in the front rack-mounting
post. Then, attach the shelf bracket to the front rack-mounting post using a minimum of four 12-24 or 10-24 screws.
The bottom hole of the shelf bracket should align with the bottom hole (the hole immediately above the 1/2
in. spacing) of a rack unit on the rack-mounting post.
Note
Step 2 Repeat Step 1 with the other shelf brackets.
Step 3 Verify that the shelf brackets are at the same height (using the level or tape measure, as desired).
Step 4 Attach the crossbar to the shelf brackets, as shown in Figure 2: Installing the Shelf Bracket Kit into an EIA Rack, on page
4, using the 10-32 screws.
Step 5 Insert the slider posts into the shelf brackets, as shown in Figure 2: Installing the Shelf Bracket Kit into an EIA Rack, on
page 4. Attach them to the rear rack-mounting posts, using a minimum of four 12-24 or 10-24 screws.
Installing the Cisco MDS 9148T Switch
4
Installing the Cisco MDS 9148T Switch
Installing the Shelf Bracket Kit into a Four-Post EIA Rack
