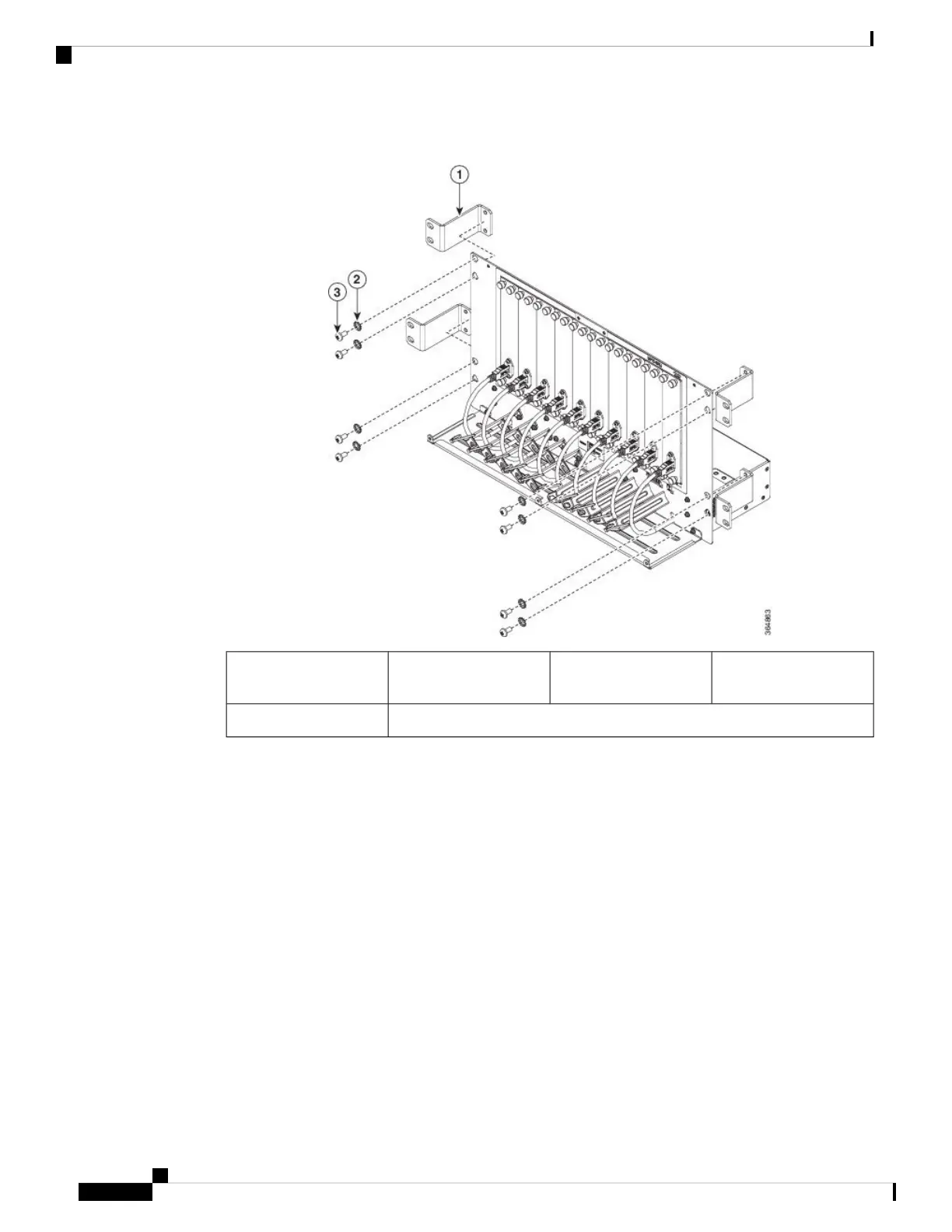

Figure 6: Mounting Brackets on the MF10-6RU Unit for a 21-inch ETSI Rack Installation
Washer2Z shaped 21-inch ETSI
rack mounting bracket
1
Screw3
Step 2 Install the MF-6RU or MF10-6RU unit on the appropriate rack equipment:
a) Lift the MF-6RU or MF10-6RU unit to the desired position in the rack.
b) Align the screw holes on the mounting brackets with the mounting holes in the rack.
For a 19-inch ANSI rack installation, external mounting brackets are not installed on the MF-6RU
or MF10-6RU unit. The unit is mounted directly on the equipment rack using screws and washers.
Note
c) Insert the screws and tighten them.
Installing the Cisco NCS 2000 Series Passive Optical Modules
