Cisco NCS 2000 series

a) Crimp a #6 AWG ground cable to the ground lug.
b) Attach the ground lug to the MF-6RU or MF10-6RU unit The ground points are present on the rear side
of the unit as shown in the following figure.
c) Tighten the lug using two M6 screws.
d) Terminate the other end of the ground cable either at the office ground point or the rack ground point.

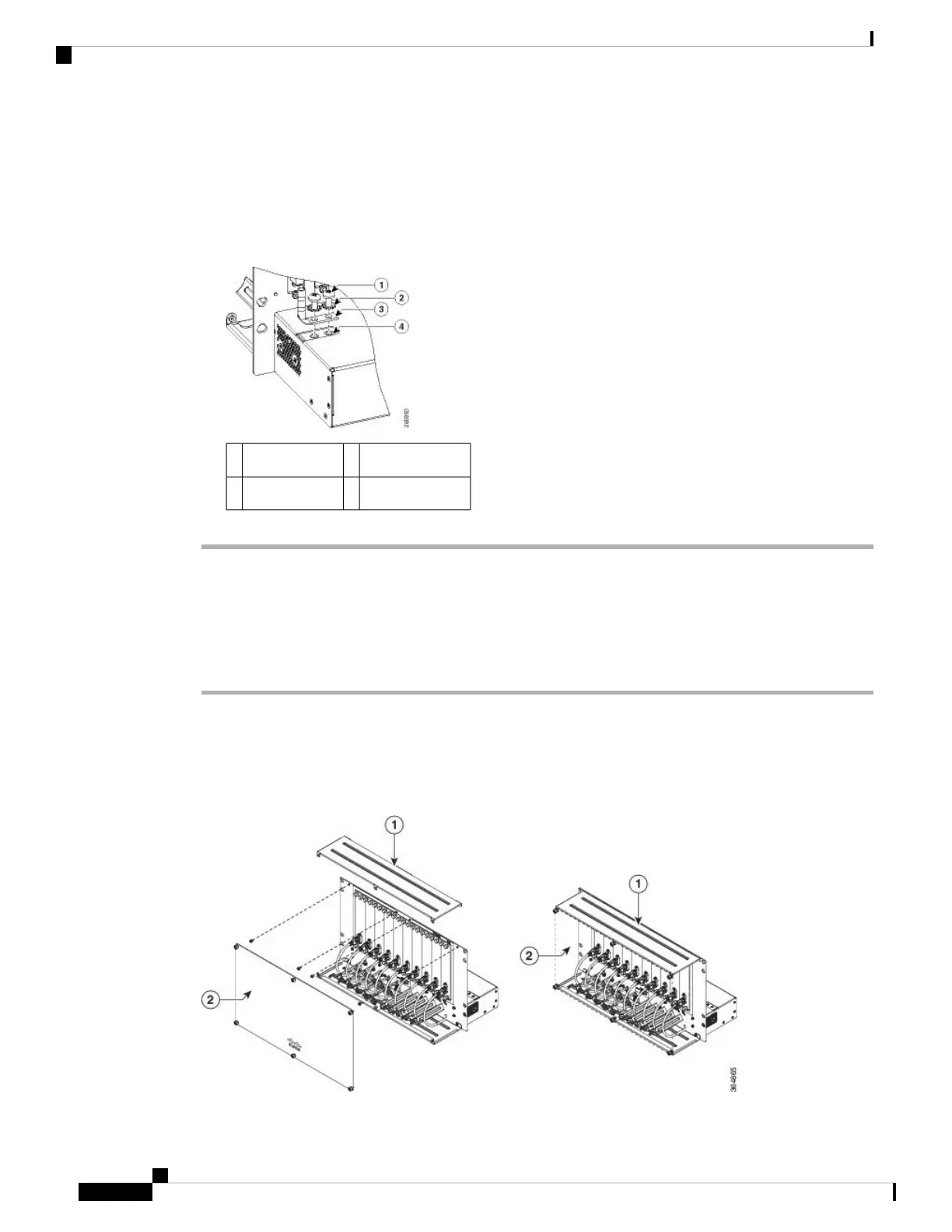

Grounding the MF-6RU or MF10-6RU Unit 365893.eps
Serrated washer2M6 x 10 screw1
Grounding point4Grounding lug3
Installing Transparent Door on MF-6RU or MF10-6RU Unit
This procedure describes the steps to install the transparent door on the MF-6RU or MF10-6RU unit.
Procedure
Step 1 Install the top cover on the MF-6RU or MF10-6RU unit using four M3 screws.
Step 2 Before installing the door, adjust the cable guide tray so that the door screws are properly aligned.
Step 3 Install the transparent door to the MF-6RU or MF10-6RU (Figure 10) unit using six self-clinching screws.
Figure 9: Installing the Transparent Door on the MF10-6RU Unit
Installing the Cisco NCS 2000 Series Passive Optical Modules
12
Installing the Cisco NCS 2000 Series Passive Optical Modules
Installing Transparent Door on MF-6RU or MF10-6RU Unit
