2-22
Cisco ONS 15454 Procedure Guide, R8.0
78-17697-01
Chapter 2 Install Cards and Fiber-Optic Cable
NTP- A20 Replace the Front Door
b. Attach the terminal lug.
c. Using the open-end wrench, attach and tighten the #4 Kepnut (49-0337-01) on the terminal lug.
Note To avoid interference with the traffic (line) card, make sure the ground strap is in a flat
position when the door is open. To move the ground strap into a flat position, rotate the
terminal lug counterclockwise before tightening the Kepnut.
Step 4 Replace the left cable-routing channel.
Step 5 Using a Phillips screwdriver, insert and tighten the screws for the cable-routing channel.
Figure 2-2 shows the shelf assembly with the front door and ground strap installed.

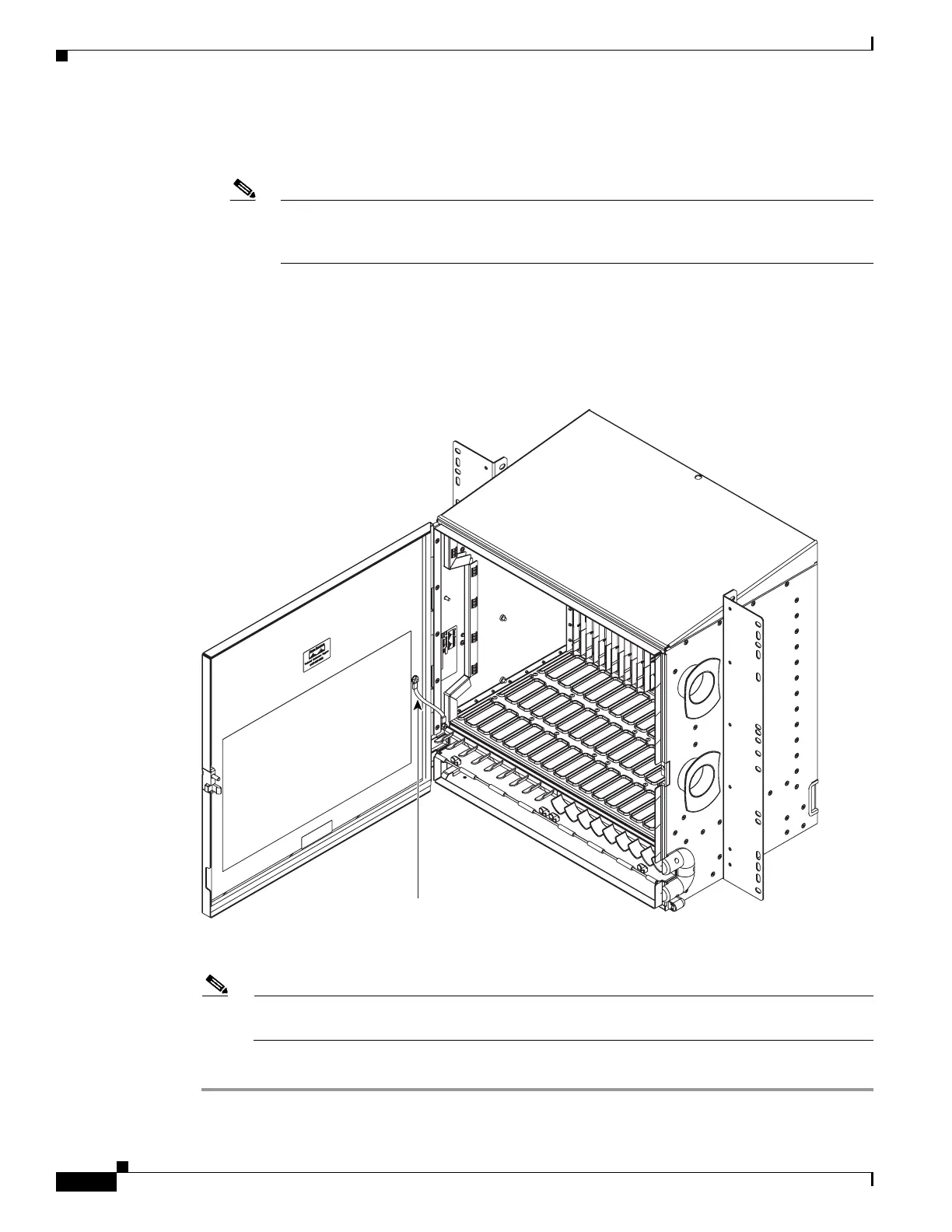

Figure 2-2 Shelf Assembly with Door Ground Strap Retrofit Kit Installed
Step 6
Swing the door closed.
Note The ONS 15454 comes with a pinned hex key tool for locking and unlocking the front door. Turn
the key counterclockwise to unlock the door and clockwise to lock it.
Stop. You have completed this procedure.
