5-14
Cisco PIX Firewall Hardware Installation Guide
78-15170-01
Chapter 5 PIX 520
Installing a Memory Upgrade

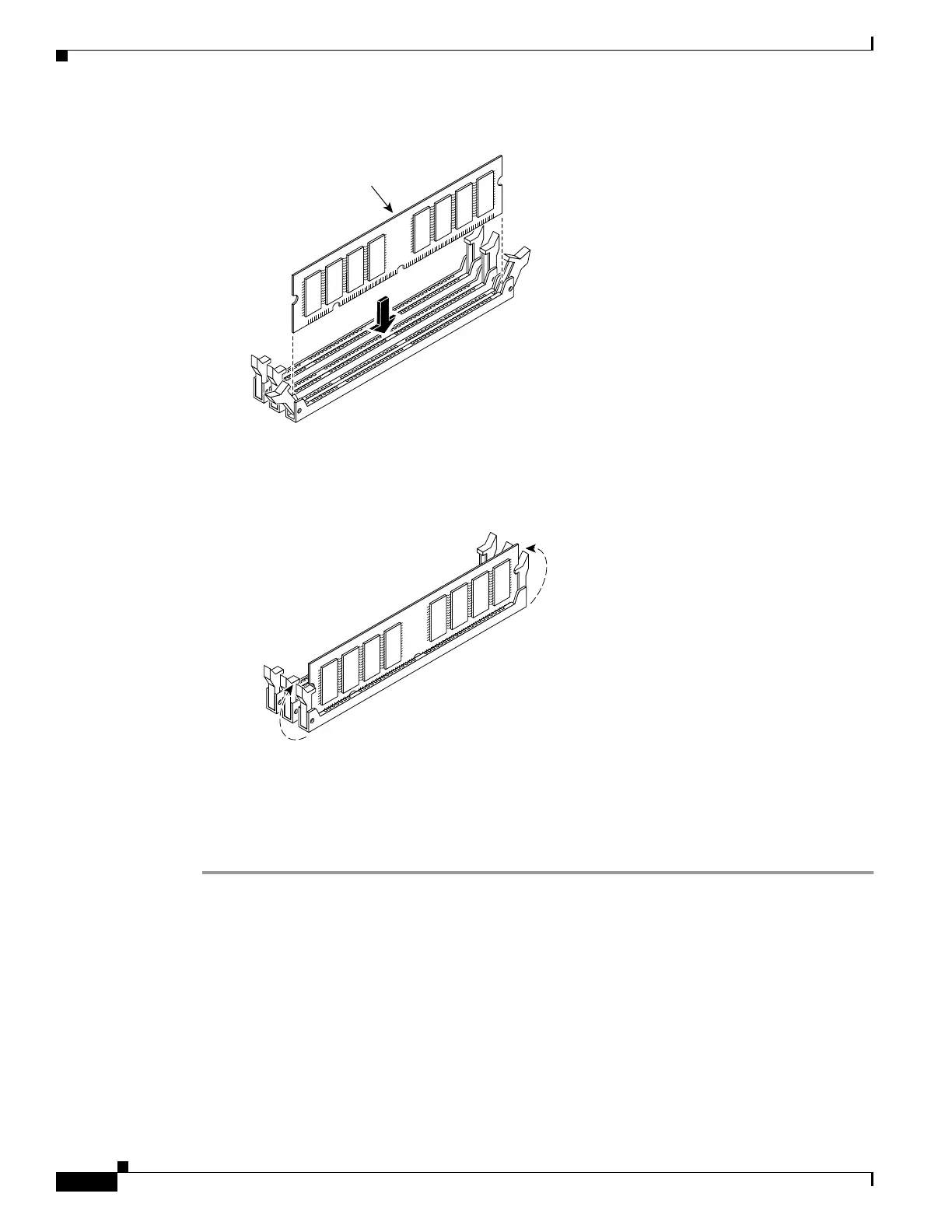

Figure 5-15 Inserting a DIMM Memory Strip in the PIX 520
Figure 5-16 Securing a DIMM Memory Strip in the PIX 520
When you finish inserting new RAM memory, replace the top panel on the PIX Firewall chassis.
Reattach the screws. If desired, rack mount the PIX Firewall and attach all cables and cords as discussed
in previous sections. After the PIX Firewall is installed, you can view the amount of RAM memory in
the system startup messages or with the show version command.
17997
DIMM
Bank 0
Bank 2
Bank 1
17998
Bank 0
Bank 2
Bank 1
