Chapter 6 PIX 525
Installing a DC Power Supply

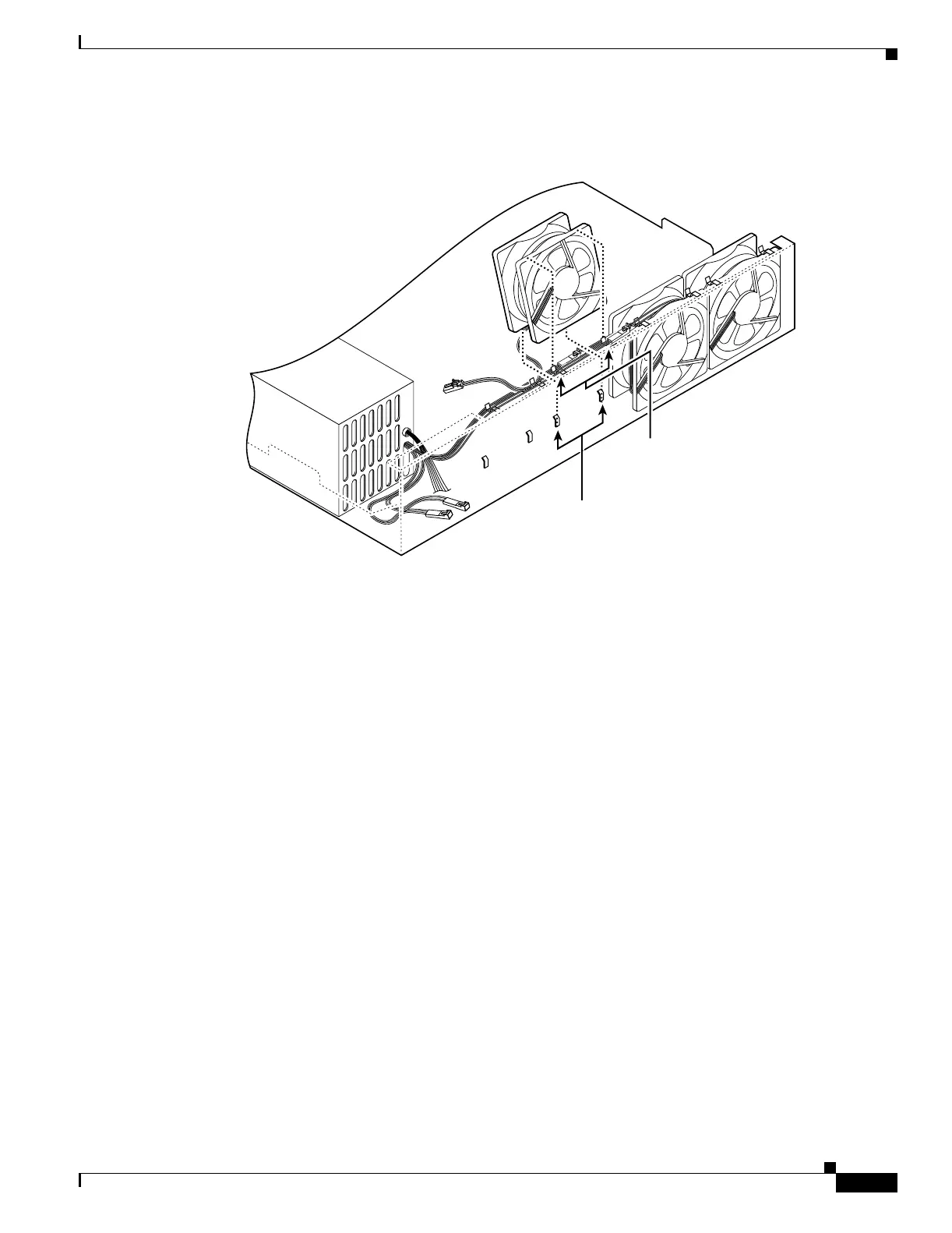

Figure 6-21 Routing the Fan Cables
Step 6
Insert the second fan as shown in Figure 6-21, making sure that the fan cable feeds to your left. Position
the cables to the two installed fans so that they will fit over the first and second fans. Press the fan into
place between the four sheet metal tabs.
31109
Front panel
Sheet metal tabs
Base tabs
