Cisco Router Cisco 3600 Installation Guide

5-27
Cisco 3600 Series Hardware Installation Guide
OL-2056-02
Chapter 5 Installing Memory in the Router
Replacing the ROM

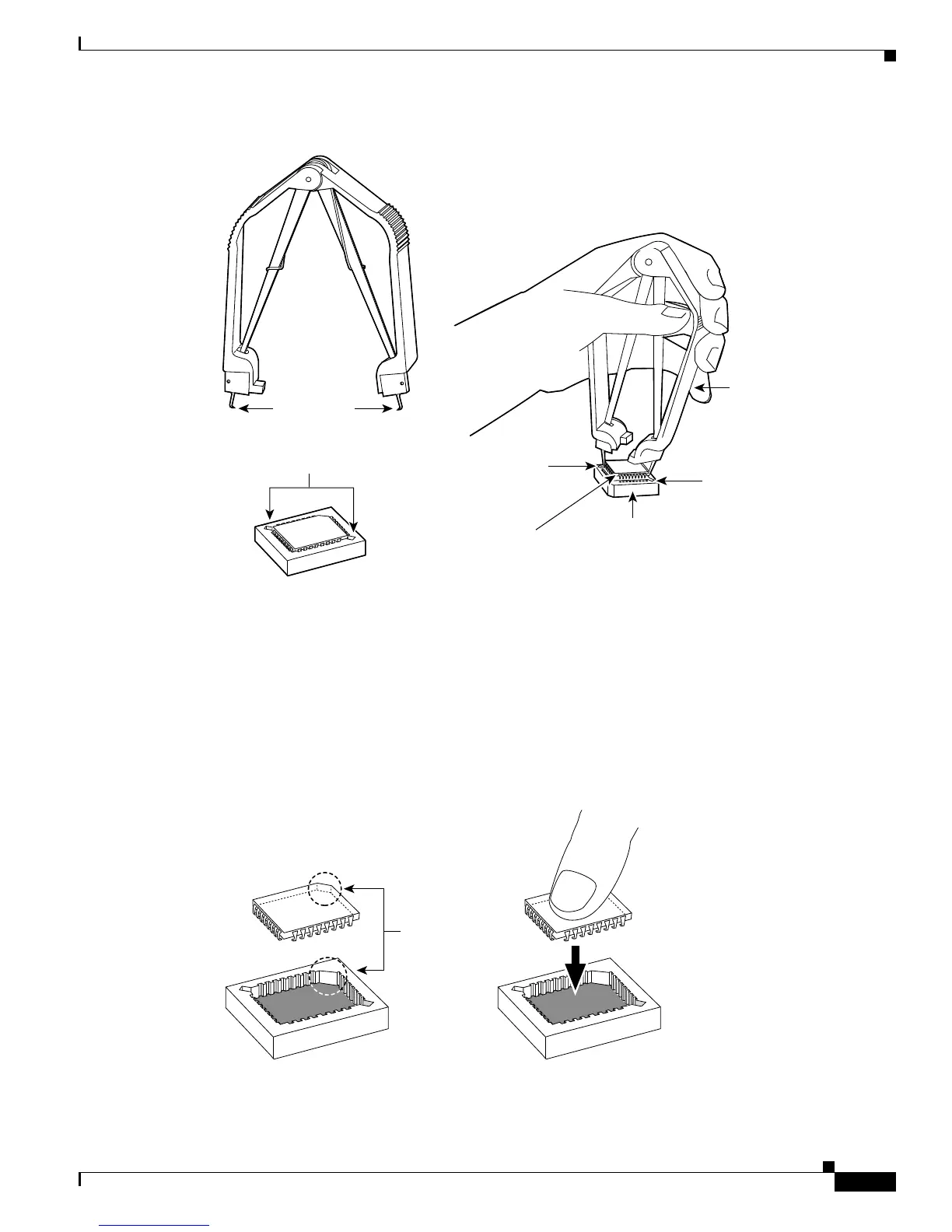

Figure 5-22 Removing the ROM from the Cisco 3660 Mainboard
Step 5 For a Cisco 3620 or Cisco 3640 router, orient and insert the new ROM in its socket (shown in Figure 5-19
and Figure 5-20), being careful to not bend or crush any of the bottom pins. To straighten out a bent pin,
use needlenose pliers. Align the notch in the new ROM with the notch in the ROM socket, ignoring the
orientation of the label.
For a Cisco 3660 router, orient and insert the new ROM in its socket as shown in Figure 5-23, being
careful to not bend or crush any of the bottom pins. To straighten out a bent pin, use needlenose pliers.
Align the notch in the new ROM with the notch in the ROM socket, ignoring the orientation of the label.
Figure 5-23 Installing the ROM in the Cisco 3660 Mainboard
Extraction slots
PLCC extraction
tool
ROM
PLCC
extraction slot
ROM socket
PLCC
extraction slot
14624
Angled tips
Align notches
on ROM
and socket
Press the
ROM into
place evenly
and firmly
14063
