Step 4 Tighten the power supply captive installation screws.
Warning To ensure protective grounding continuity, power supply captive installation screws must be tight.
Note Because the power requirement of the SCE 8000 does not exceed 1350 W, it is not necessary to connect two pairs
of input wires to each power supply. If you want to connect two pairs of input wires, both pairs of input wires for
one 2700 W DC-input power supply must come from the same battery system (A feed); and both pairs of input
wires for the other power supply must come from another battery system (B feed).
Note For multiple DC input power supplies, each DC input must be protected by a dedicated circuit breaker or fuse. The
circuit breaker or fuse should be sized according to the power supply input rating and local or national electrical
code requirements.
Step 5 Remove the four screws securing the terminal block cover, and slide the cover off of the terminal block (Figure 6).

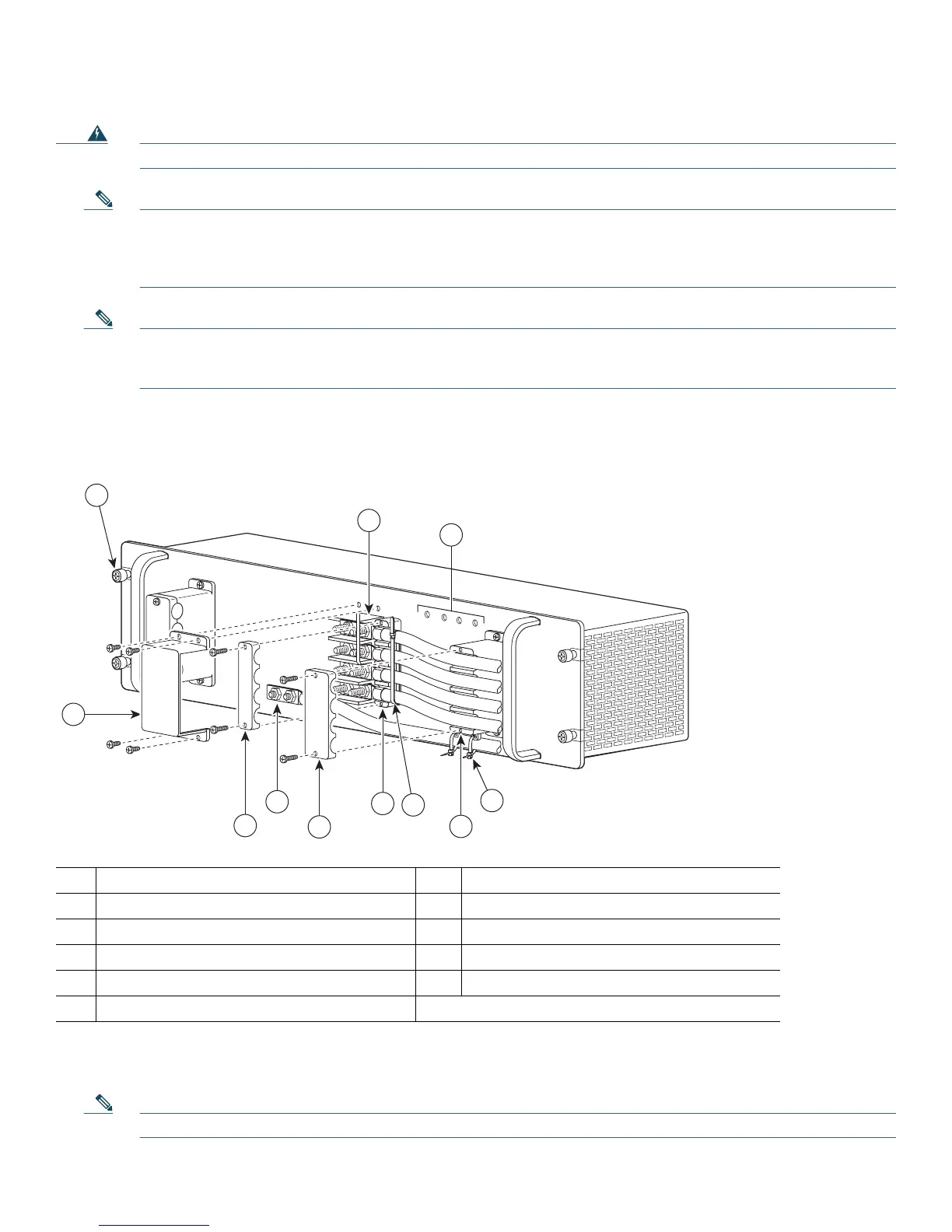

Figure 6 DC-Input Front Panel for 2700 W DC-Input Power Supply
Step 6 Attach the appropriate lugs to the DC-input wires and ground wire. The wires should be sized according to local and
national installation requirements. Use only copper wire. The maximum width of a lug is 0.600 inch (15.2 mm).
Note For North American installations, use fine-stranded copper conductors rated for 90-degrees Celsius.
1
Captive installation screw
7
Cable holder cover
2
DC power cable terminal block
8
Cable holder
3
Status LEDs
9
Tie-wrap
4
DC power cable terminal block cover
10
Cable holder
5
Cable holder cover
11
Tie-wrap
6
Ground
132219
PWR-2700-DC/4
-VE-1
-VE-1
-VE-2
-VE-2
IN
P
U
T1
O
K
48V
-60V
=40A
IN
PU
T
2
O
K
48V
-60V
=40A
FA
N
O
K
O
U
TP
U
T
FA
I
L
ALL FASTENERS MUST BE F
ULL
Y ENGAGED
PRIOR TO OPERA
TING THE PO
W
ER SUPPLY
3
2
6
4
10
1
8
5
7
11
9
