Cisco Content Delivery Engine 100/200/300/400 Hardware Installation Guide
OL-13478-03
Chapter 1 Overview of the Content Delivery Engines
Hardware Features

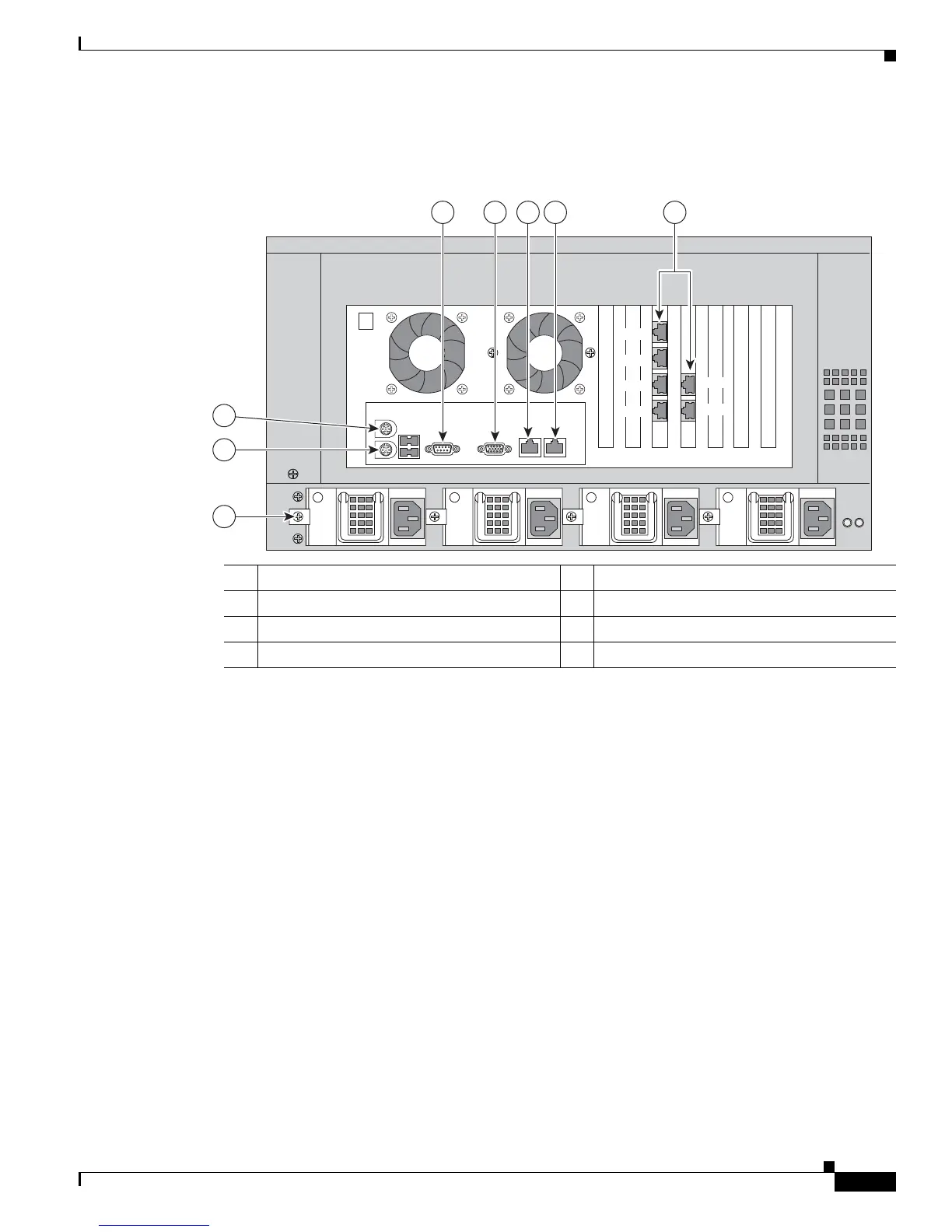

Figure 1-20 shows the location of the CDE400 back panel ports and connectors.
Figure 1-20 CDE400 Connector Locations
1 Power connectors 5 VGA interface
2 Mouse connector 6 Management Interface (eth0)
3 Keyboard connector 7 Ingest Interface (eth1)
4 Serial console interface 8 Cache/Stream interfaces (eth2 through eth7)
270604
eth0 eth1
eth2
eth3
eth4
eth5
eth6
eth7
54 6 7
1
2
3
8
