8
Note Screws are included for attaching the brackets to the chassis, but not for installing the chassis in a rack or on a wall.
You need four additional machine screws to install the chassis in a rack. Use the screw size required by your rack.

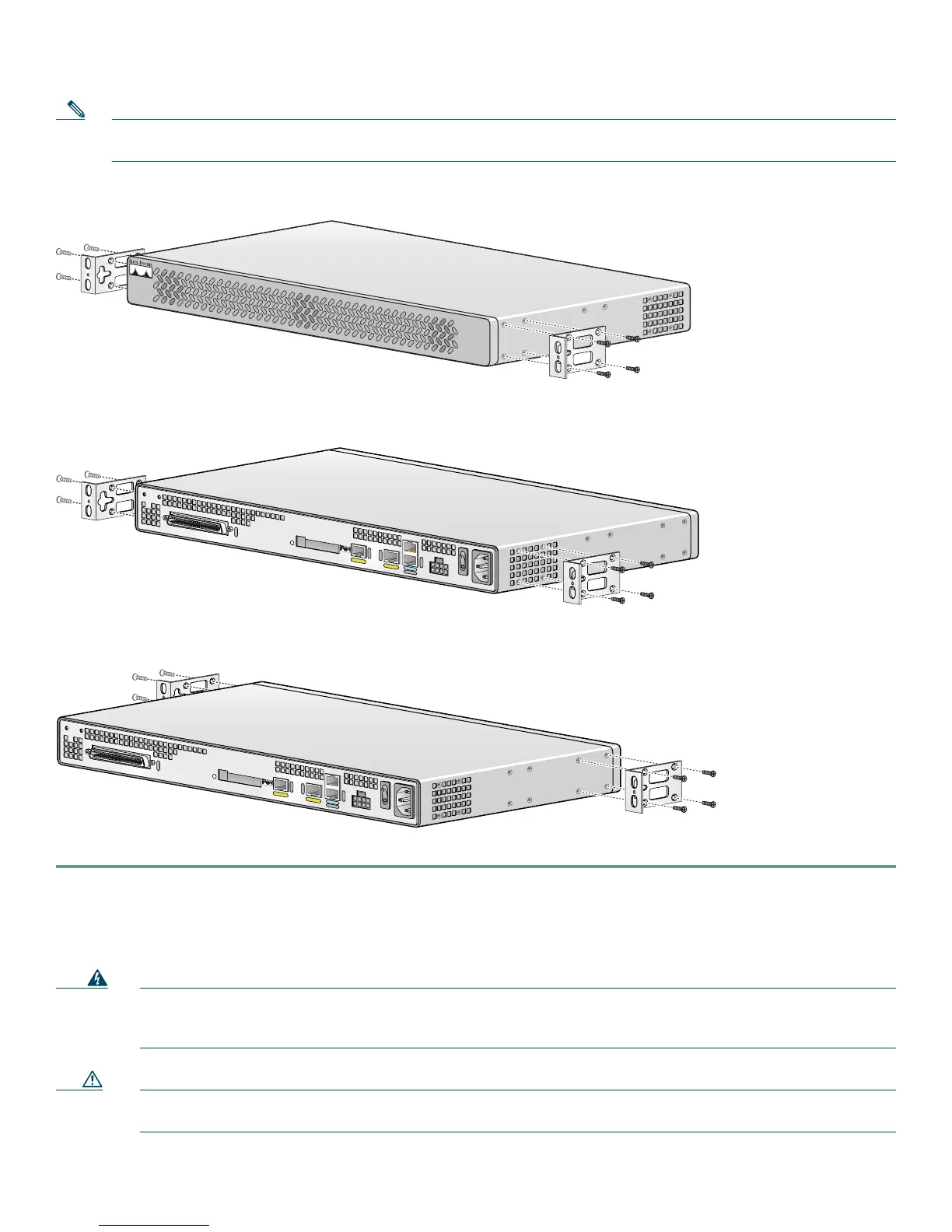

Figure 5 19-Inch Rack-Mounting with Front Panel Forward
Figure 6 19-Inch Rack-Mounting with Rear Panel Forward
Figure 7 Telco 19-Inch Rack-Mounting with Rear Panel Forward
Step 2 Install the chassis in the rack.
Wall-Mounting the Chassis
The following warning applies only when the unit is wall-mounted:
Warning
This unit is intended to be mounted on a wall. Please read the wall mounting instructions carefully before
beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a
hazardous situation to people and damage to the system.
Statement 248
Caution You can wall-mount the unit with either the right or left side facing up; however, the front and rear panels must be
vertical.
95915
C
IS
CO
V
G224
95916
V
G
224-2
4F
X
S
95917
VG224-24FXS
