Setup
Network Settings
SPS208G/SPS224G4/SPS2024 Service Provider Switches User Guide 20
2
Network Settings
The Network Settings Screen contains parameters for configuring general device
information, including the system name, location, and contact, the system MAC
Address, System Object ID, System IP and MAC addresses.
To define the general system information:
STEP 1 Click Setup > Network Settings. The Network Settings Screen opens.

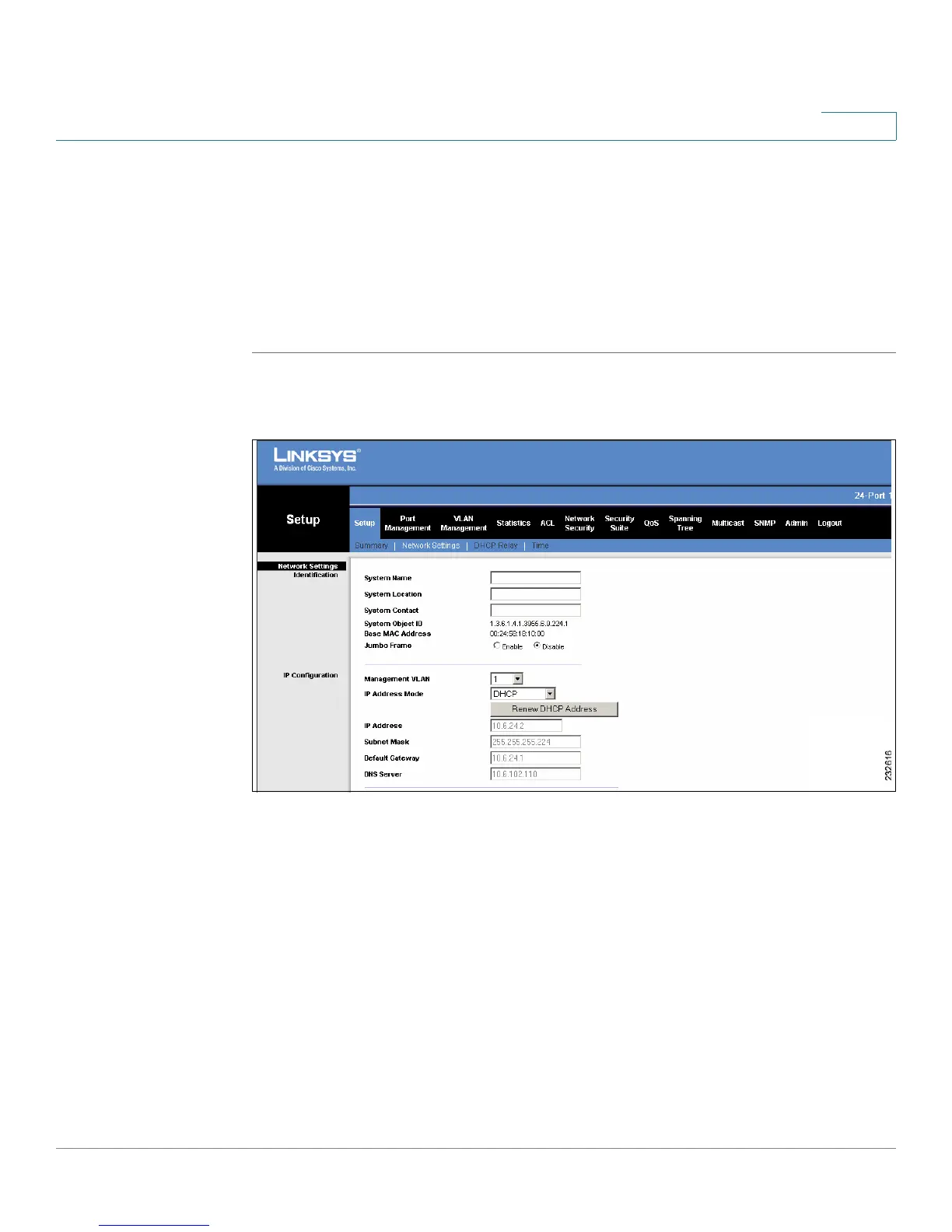

Figure 7 Network Settings Screen
The
Network Settings Screen contains the following fields:
• System Name — Specifies the user-defined system name. The field range
is 0-160 characters.
• System Location — Specifies the user-defined system location, for
example, 3rd floor. The field range is 0-160 characters.
• System Contact — Specifies the user-defined system contact person. The
field range is 0-160 characters.
• System Object ID — Displays the vendor’s authoritative system object
identification.
• Base MAC Address — Displays the master unit’s base MAC address.

Cisco SPS224G4 Specifications

General

Model	SPS224G4
Power over Ethernet (PoE)	Yes
PoE Budget	370W
Layer	Layer 2
Power Supply	Internal
Form Factor	Rack-mountable
Input Voltage	100 to 240 VAC
Input Frequency	50 to 60 Hz
MAC Address Table Size	16, 000 entries
Jumbo Frame Support	Yes (up to 9KB)
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to 70 °C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% (non-condensing)
Ports	24 x 10/100/1000 Ethernet ports, 4 x SFP Gigabit Ethernet uplinks
