D1510413 User Guide
Cisco TelePresence DX70, DX80
Produced: April 2016 for CE8.2
All contents © 2010–2016
Cisco Systems, Inc. All rights reserved.
This user guide applies to both
DX70 and DX80. The display of the
two are of dierent sizes, but the
images displayed on the screens are
identical apart from the size.
For practical purposes, the screen-
shots used in this guide have been
inserted into a drawing of the DX80.
About This User Guide
Introduction

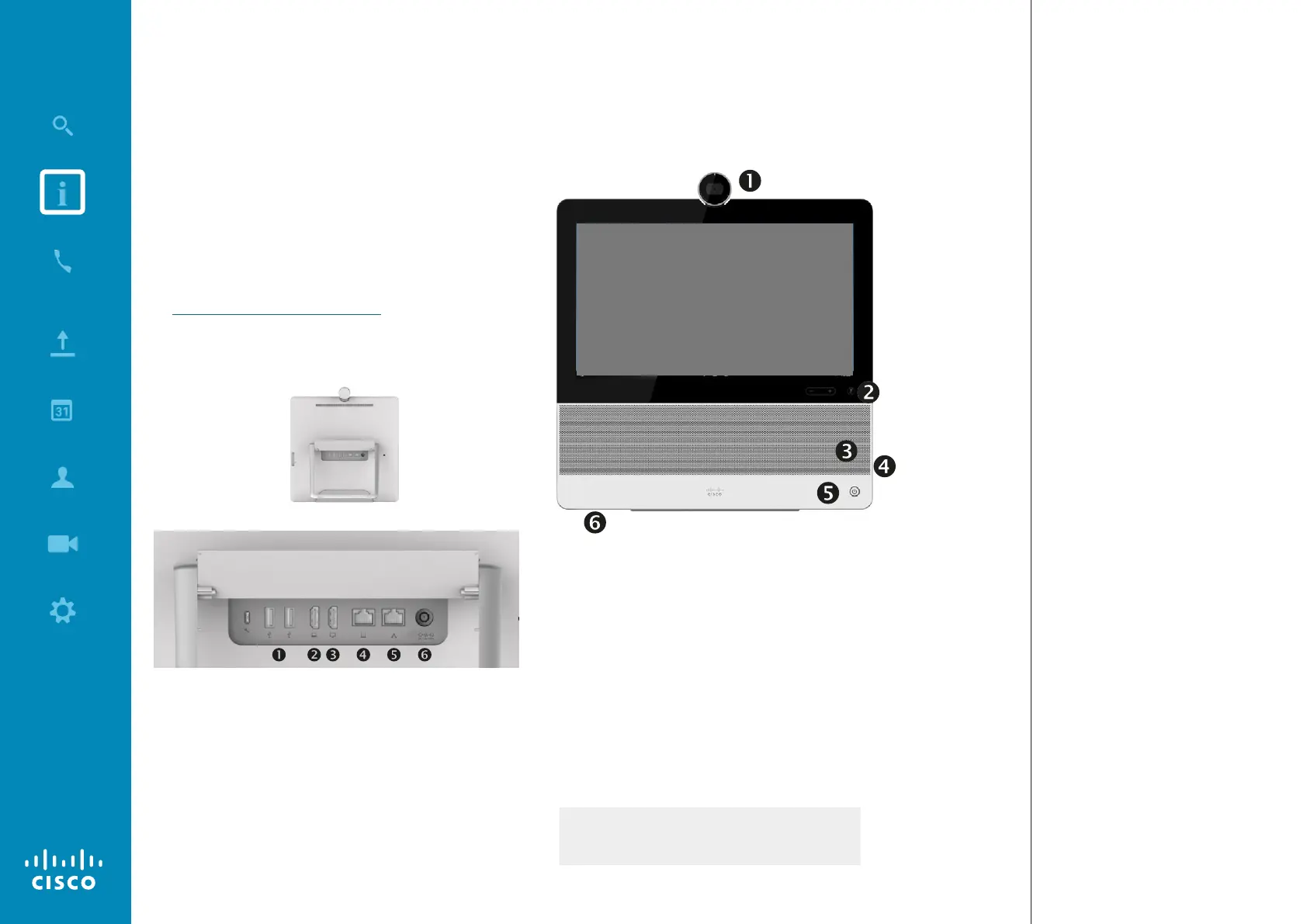

Tour the Cisco DX70
Camera with privacy shutter, turn counter-clockwise
to shut and clockwise to open
Microphone mute button and loudspeaker volume
controls
Loudspeaker
SD card slot and connectors for headset and USB.
Power On/O
Microphone
USB ports
HDMI socket PC
HDMI socket External Monitor (not in use)
LAN expansion connection. Connect your PC
LAN here to let your Cisco DX70 and PC share a
common LAN connection
LAN connection
Power supply socket
Use as PC monitor. Use an HDMI cable to connect your
computer to the HDMI socket PC (see below).
To switch between PC monitor and Video screen, just tap
the screen.
Incoming calls will appear as usual, irrespective of
mode (PC or video) unless Do not disturb is active, see
“Activate Do Not Disturb” on page 15.
The DX70 supports USB head sets as well as
headsets using minijack. For more on USB head
sets, see the following page.
