D1510413 User Guide
Cisco TelePresence DX70, DX80
Produced: April 2016 for CE8.2
All contents © 2010–2016
Cisco Systems, Inc. All rights reserved.
Introduction

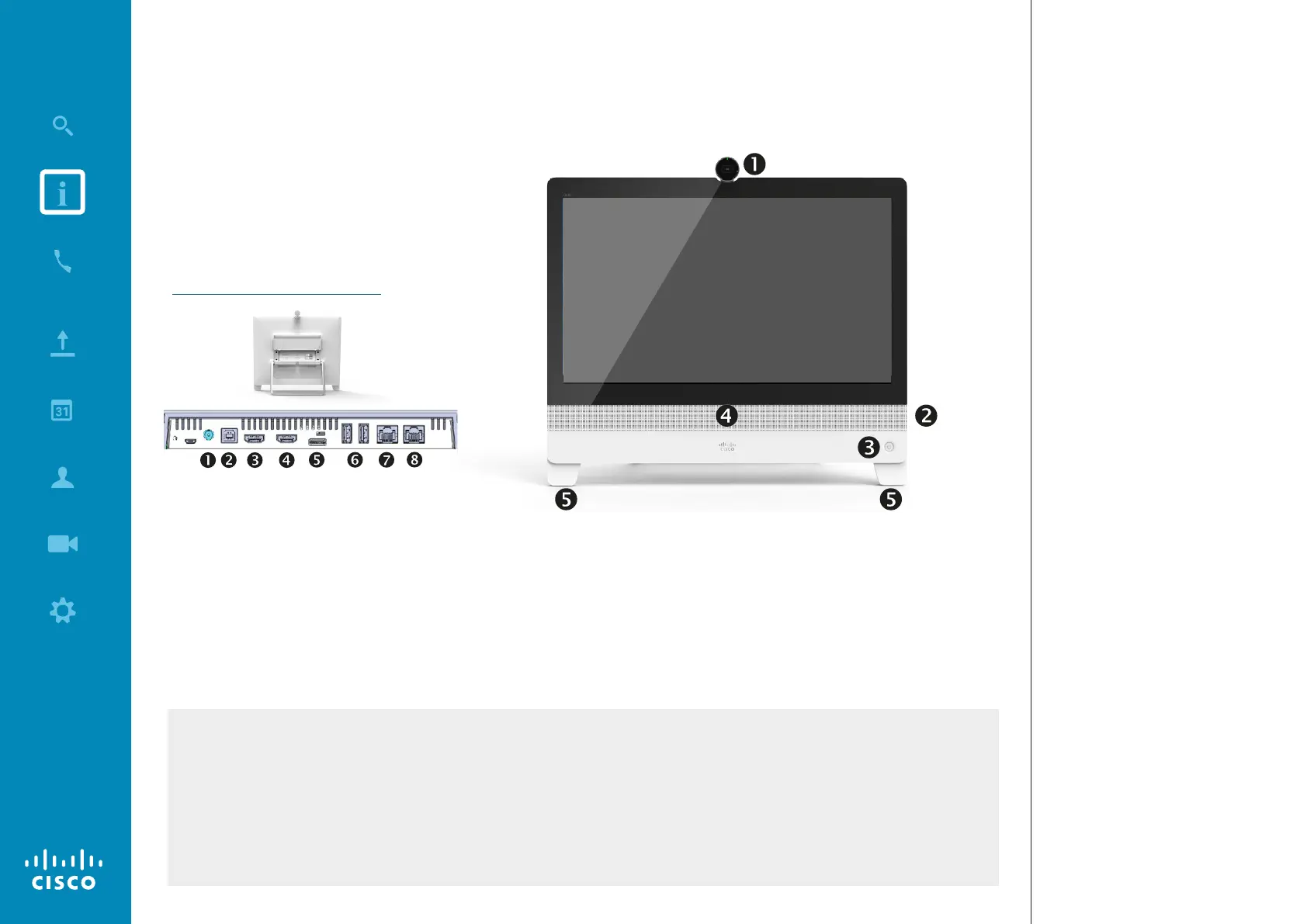

Tour the Cisco DX80
Camera with privacy shutter, turn counter-clockwise
to shut and clockwise to open
Microphone mute button, loudspeaker volume
controls and USB socket on the right side of the unit.
Power On/O
Loudspeaker
Microphone in each leg
  Power supply socket
 USB computer connection
 HDMI computer connection
 HDMI external monitor connection (not in use)
 SD card slot and Kensington lock
 USB ports
  LAN expansion connection. Connect your
computer LAN here to let your Cisco DX80 and
computer share a common LAN connection
 LAN connection
This user guide applies to both
DX70 and DX80. The display of the
two are of dierent sizes, but the
images displayed on the screens are
identical apart from the size.
For practical purposes, the screen-
shots used in this guide have been
inserted into a drawing of the DX80.
About This User Guide
Use as PC monitor. Use an HDMI cable to connect your
computer to the HDMI socket PC (see below).
To switch between PC monitor and Video screen, just tap
the screen.
Incoming calls will appear as usual, irrespective of
mode (PC or video) unless Do not disturb is active, see
“Activate Do Not Disturb” on page 15.
DX80 and USB Headsets
The DX 80 implements the standard protocol for
USB wired audio devices.
Manufacturers can implement the standard
dierently (called HID protocol).
Consequently, dierent models of from the
same manufacturer can behave dierently and
we cannot guarantee that all headsets and
handsets will work.
For CE 8.2 we have only tested wired headsets
or headsets working with a dongle. Note that
Bluetooth wireless headsets are not supported.
The provided list of headsets is by no means
exhaustive, many other headsets should work.
We recommend that you check with Jabra,
Plantronics and Sennheiser, as they are also
doing their own testing and can provide their
own list of headsets supporting DX80.
The following headsets have been tested by
Cisco:
•
Jabra Evolve 40
•
Jabra Evolve 65
•
Jabra Pro 9450
•
Jabra Pro 9470
•
Sennheiser MB Pro 2
