Connect camera cables
78-100574-02A0 | 2016 JUNE | © 2016 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX800 Dual - Floor stand
Page 22

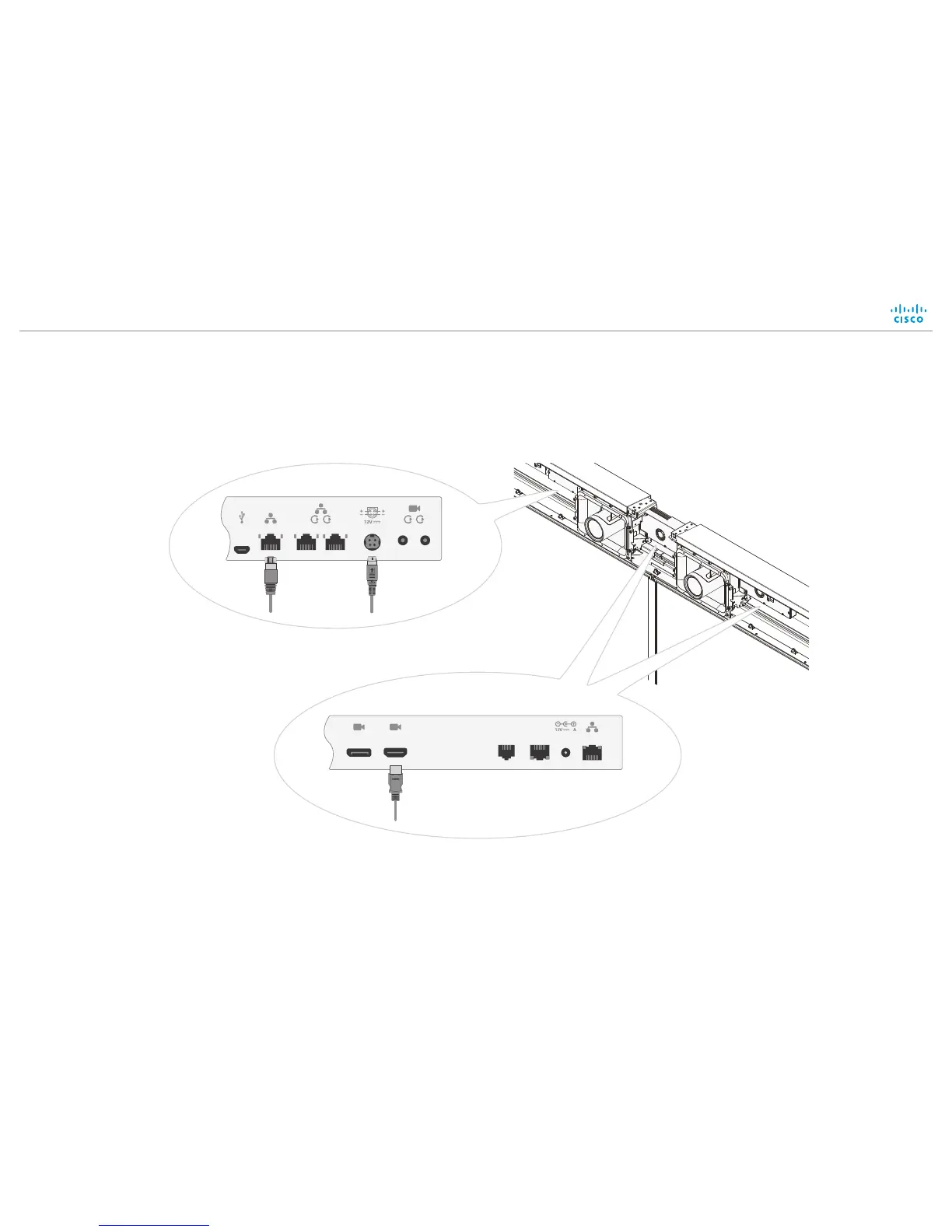

Camera connector panels
Connect an HDMI cable in the middle and an HDMI cable on the right side.
3
DAISY
CHAIN
VISCA
HDMI
2
1
2
1
2
1
2
1
Ethernet
Power
Camera connector panel (left)
Do not disconnect any pre-mounted cables.
