Camera guide

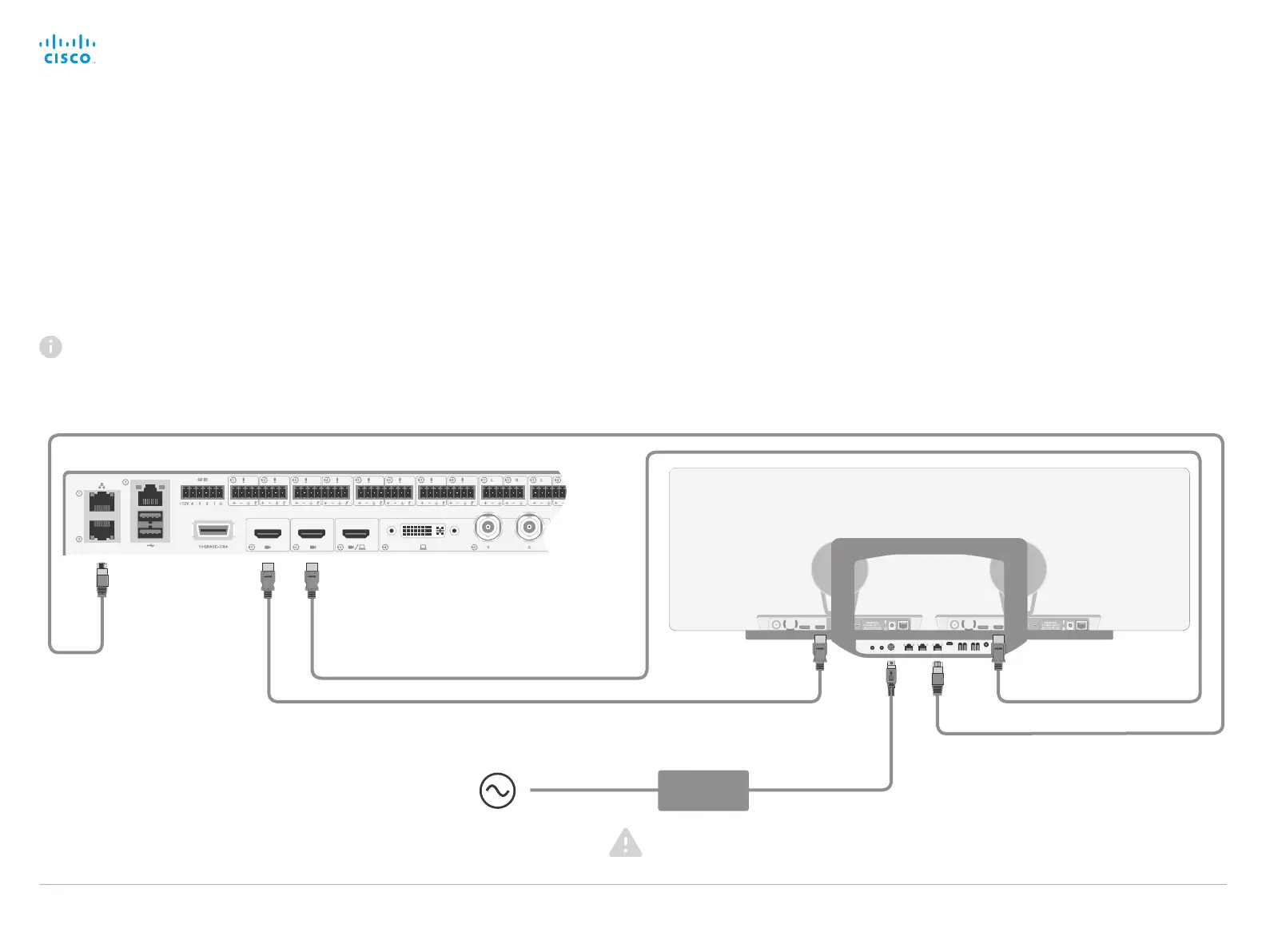

Connect SpeakerTrack 60 to SX80 Codec
Power
(100-240 V
AC
, 50/60 Hz)
Always use the provided power cable
and adapter (12 V
DC
, minimum 3 A).
Power
adapter
RJ45
HDMI 1 HDMI 2
• Connect the video cables to the codec’s camera inputs
(HDMI 1 and 2).
• Connect Ethernet to the codec’s 2nd or 3rd Ethernet port.
• Connect to power.
For further information about camera assembly and cabling,
refer to the SpeakerTrack 60 installation guide:
http://www.cisco.com/go/telepresence/docs
When using a SpeakerTrack 60 with a C Series codec, the
codec cannot be controlled with a Cisco Remote Control
TRC5. Instead, a Cisco TelePresence Touch 8 user interface
or an external control device must be used.
