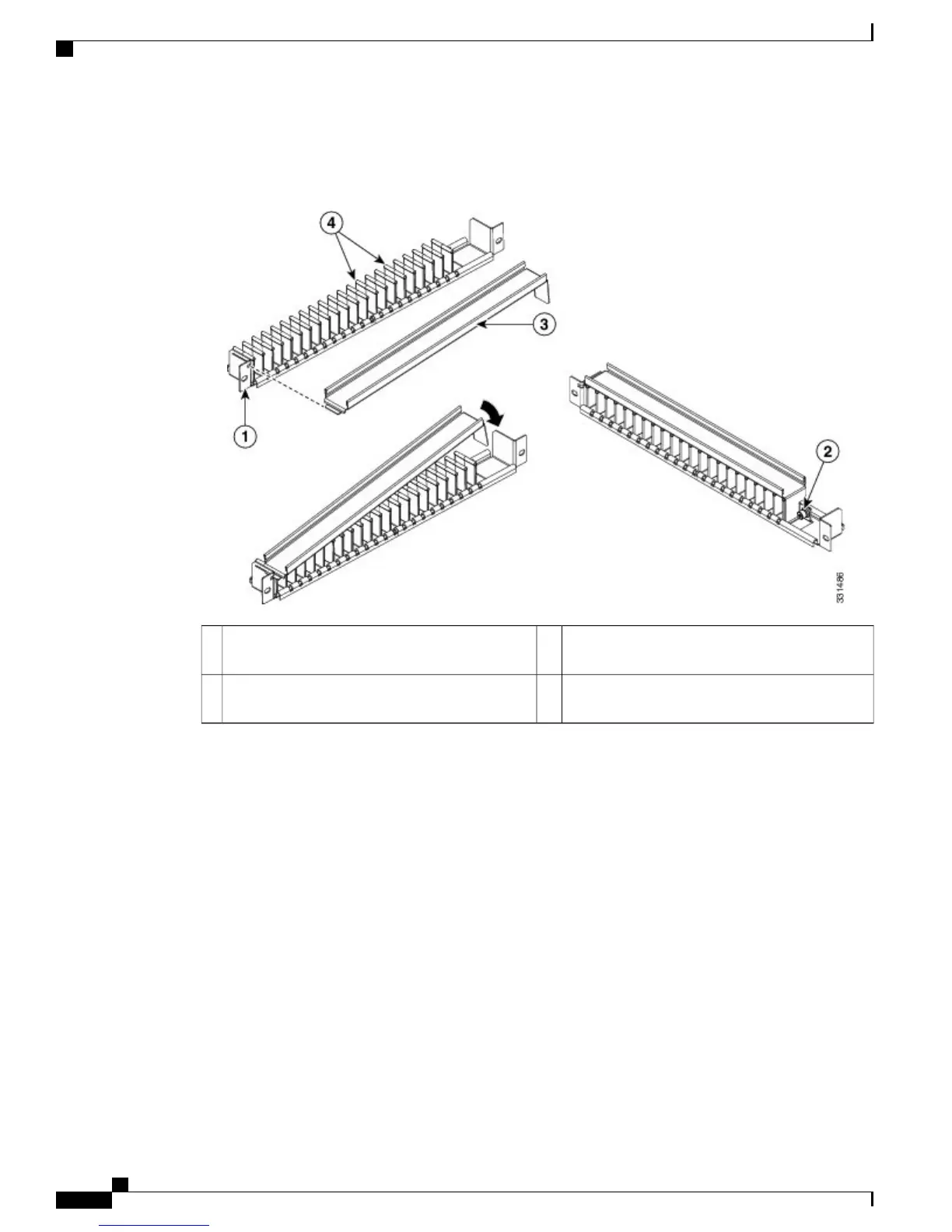

The figure below shows the Cisco UBR-RFSW-ADV cable-management bracket.
Figure 14: Cisco UBR-RFSW-ADV — Cable-Management Bracket
Cable locking bar3Captive sheetmetal slot into which the tab of the
locking bar is inserted
1
Cable guides4Captive screw on the cable-management locking
bar
2
For information about the cable-management bracket PID, see Cisco UBR-RFSW-ADV Components Part
Numbers and Product Identifiers.
Interface Overview
This section describes the PRE AUX port interface on the Cisco CMTS router and its impact on the
Cisco UBR-RFSW-ADV.
PRE AUX Port Interface
The PRE AUX port is an RS-232 serial port with an RJ-45 style connector provided on all PRE cards shipped
with the Cisco uBR10012 router. It is available on the primary PRE as well as the secondary PRE. It is located
next to the console port on the PRE. If the AUX port is not used to control the Cisco UBR-RFSW-ADV, it
may be used as an alternate console connection to the PRE.
Cisco uBR Advanced RF Switch Hardware Installation Guide
16 OL-24104-01
Introduction
Interface Overview
