Rack-Mount Kit

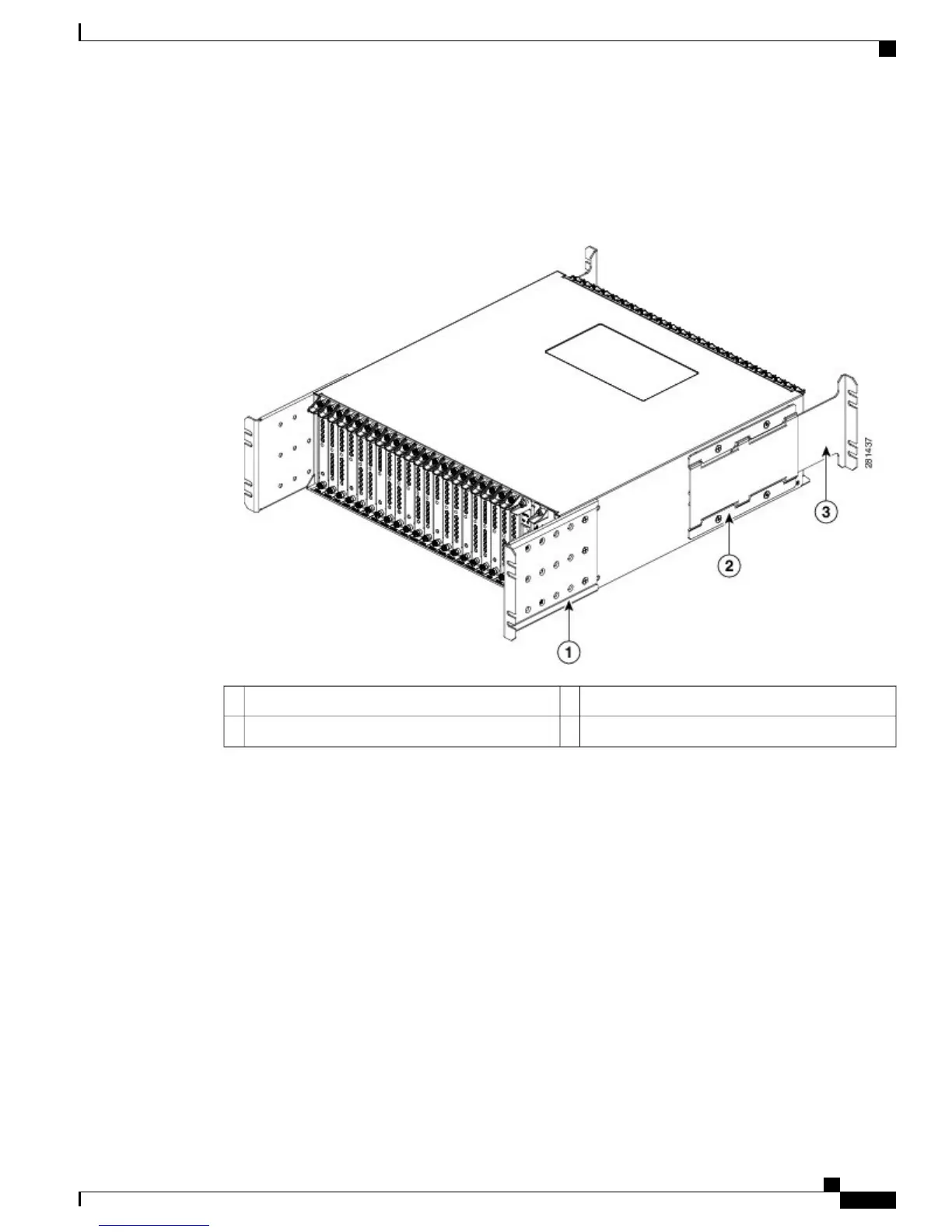

Figure 13: Rack-Mount Kit
Rear-mounting (CMTS side) slide3Front-mount (cable plant side) bracket1
—
Rear-mounting (CMTS side) slide bracket2
For information about the PIDs for the rack-mount kit, see Cisco UBR-RFSW-ADV Components Part Numbers
and Product Identifiers.
Cable-Management Bracket
A new cable-management bracket used for securing the cable bundles for easy management and maintenance
is introduced with the Cisco UBR-RFSW-ADV. This cable-management bracket mounts directly to the rack
rails above a Cisco UBR-RFSW-ADV. It uses an additional one rack-unit (RU) of rack space when used
without the cable locking bar and two RUs when the cable locking bar is used.
