Cisco UBR-RFSW-ADV—Hardware Components Description
The Cisco UBR-RFSW-ADV consists of the following hardware components:
Upstream Switch Cards

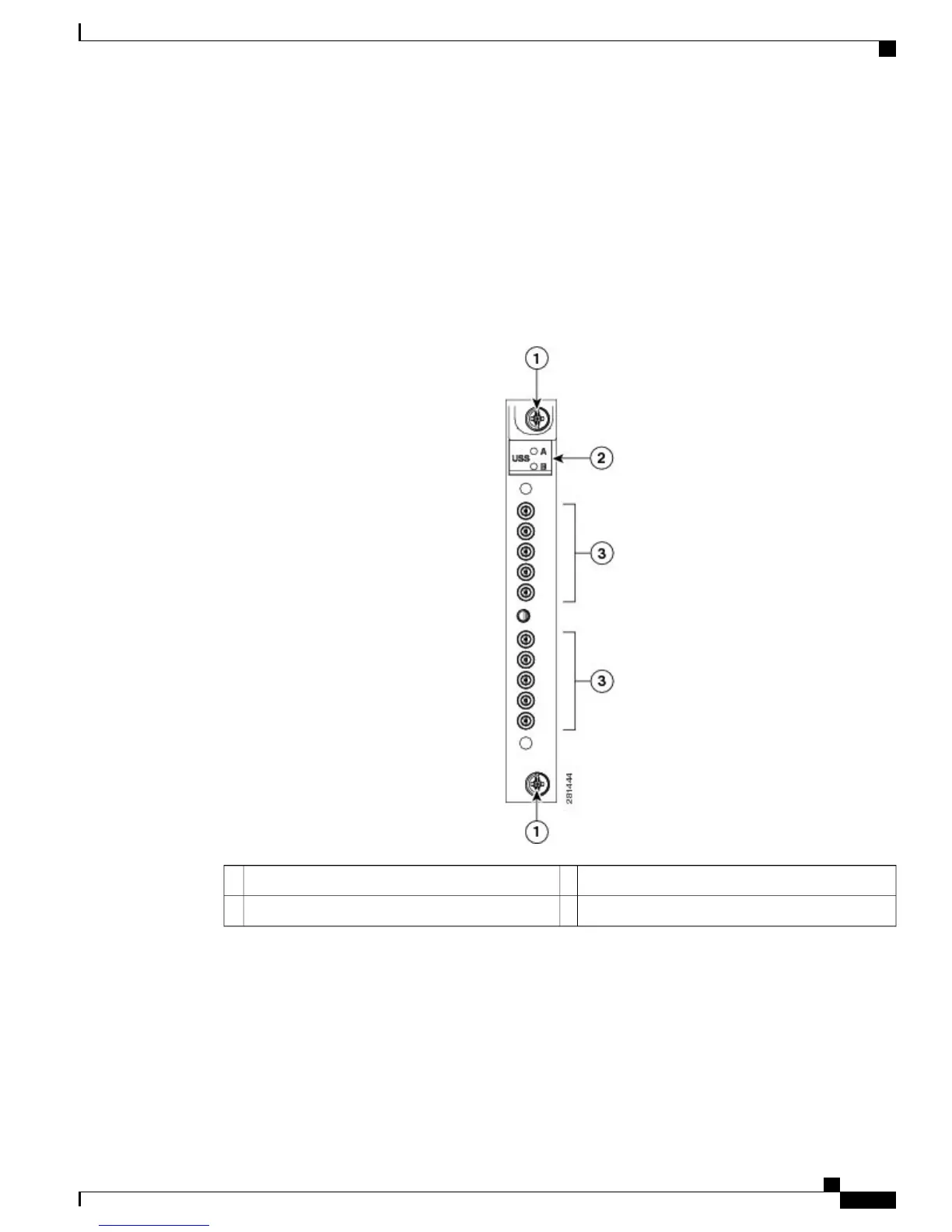

Figure 5: Upstream Switch Card Faceplate
Two sets of five upstream ports3Captive screws1
—
LEDs2
On the Cisco uBR10012 router side of the Cisco UBR-RFSW-ADV, there are 14 upstream switch cards.
Two upstream switches are used for each line card on the Cisco uBR10012 router (CMTS side).
For information about the PIDs for the upstream switch card and upstream protect card, see Cisco
UBR-RFSW-ADV Components Part Numbers and Product Identifiers.
