Controller Card

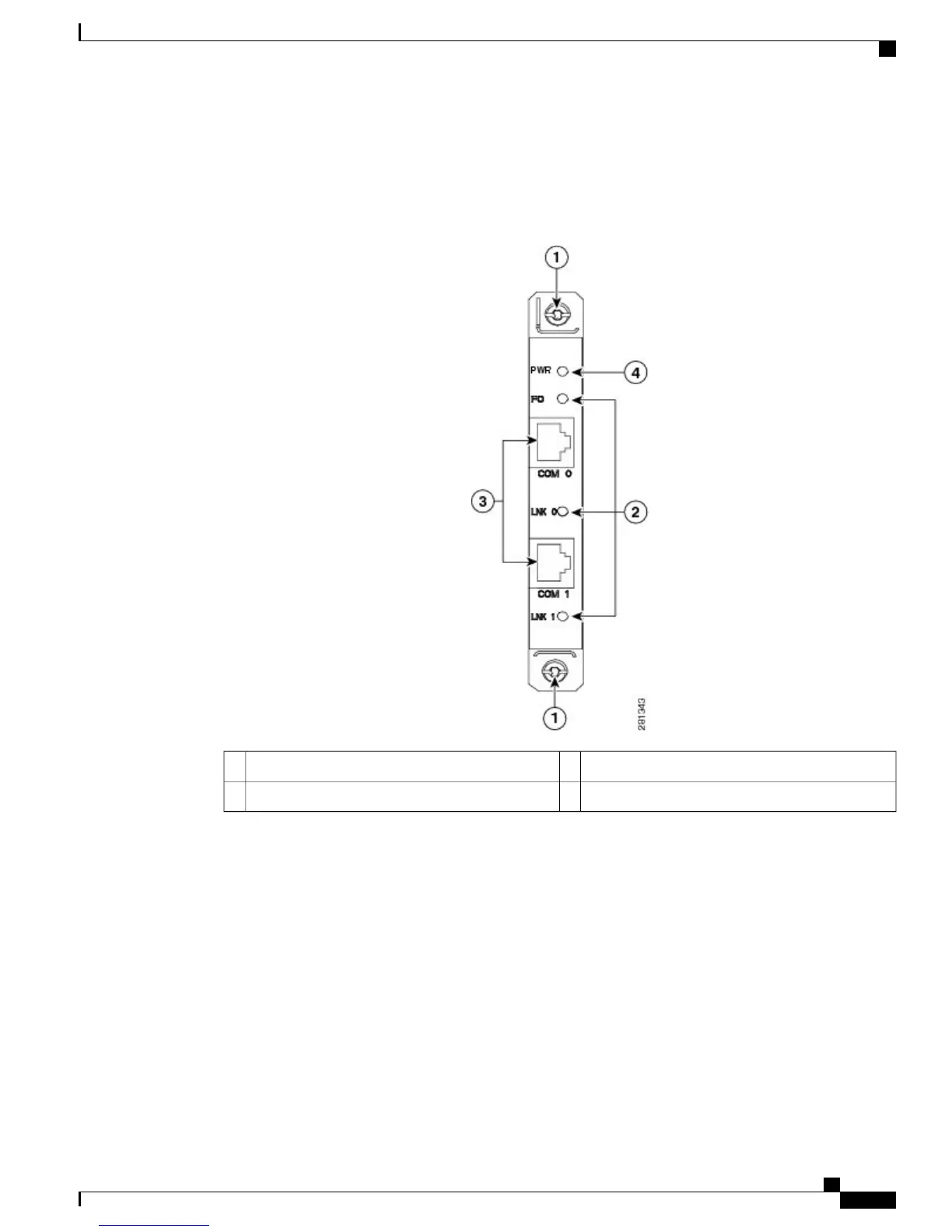

Figure 12: Controller Card Faceplate
RJ-45 ports3Captive screws1
Power LED4LEDs2
The controller card in the Cisco UBR-RFSW-ADV has two RS-232 COM ports—COM 0 and COM 1. COM
0 must be connected to the AUX port of the primary Performance Routing Engine (PRE) on the Cisco
uBR10012 router using an RJ-45 to RJ-45 rollover cable.
COM 1 may be connected to the AUX port of the secondary PRE, for redundancy purposes.
The table below describes the LEDs on the controller card.
Cisco uBR Advanced RF Switch Hardware Installation Guide
OL-24104-01 13
Introduction
Controller Card
