Cisco UBR-RFSW-ADV User Manual

The figure below shows the rear view (CMTS side) of the upstream-only version of the
Cisco UBR-RFSW-ADV.

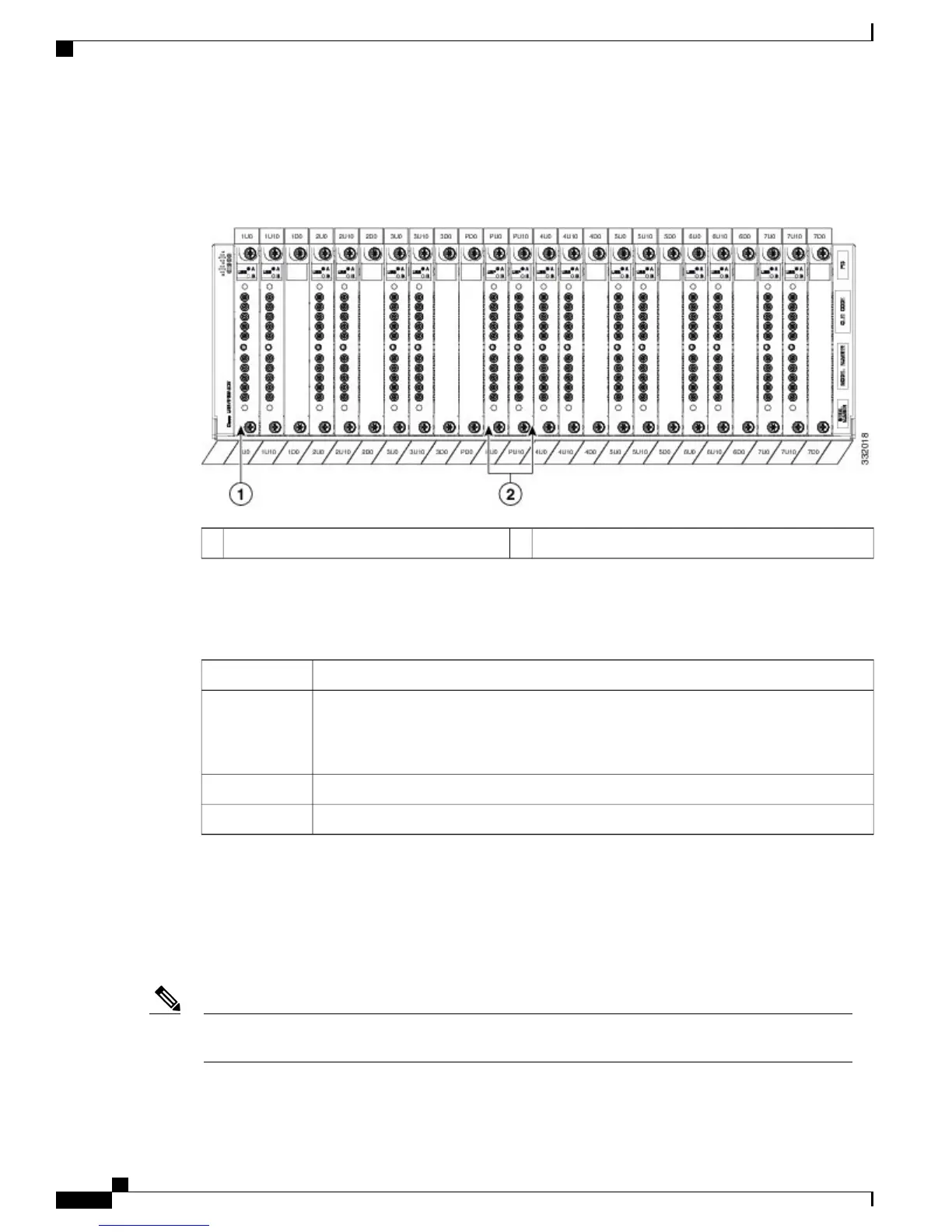

Figure 4: Upstream-Only Version of Cisco UBR-RFSW-ADV — Rear View (CMTS Side)
Upstream protect cards2Upstream switch card1
The table below lists the Cisco UBR-RFSW-ADV chassis dimensions.
Table 1: Cisco UBR-RFSW-ADV Chassis Dimensions
DimensionUnit
17.70 in (44.96 cm)—measured from front connector panel face to rear connector panel
face
19.46 in (49.43 cm)—measured from front connector handle to rear connector handle
Chassis Depth
17.28 in (43.89 cm)Chassis Width
3 rack unitsChassis Height
Two types of rack-mounting are supported for the Cisco UBR-RFSW-ADV:
•
Mounting a Single Cisco UBR-RFSW-ADV Above a Cisco uBR10012 Universal Broadband Router
•
Mounting Two Cisco uBR10012 Universal Broadband Routers and Two Cisco UBR-RFSW-ADVs in
a Single Rack
For more details on rack-mounting, see Rack-Mounting the Cisco UBR-RFSW-ADV with the Cisco
uBR10012 Router.
Note
For more information about the Cisco UBR-RFSW-ADV product identifiers (PIDs), see Power Requirements.
Cisco uBR Advanced RF Switch Hardware Installation Guide
4 OL-24104-01
