DETAILED VIEWS
DETAILED VIEWS
Chassis Front View

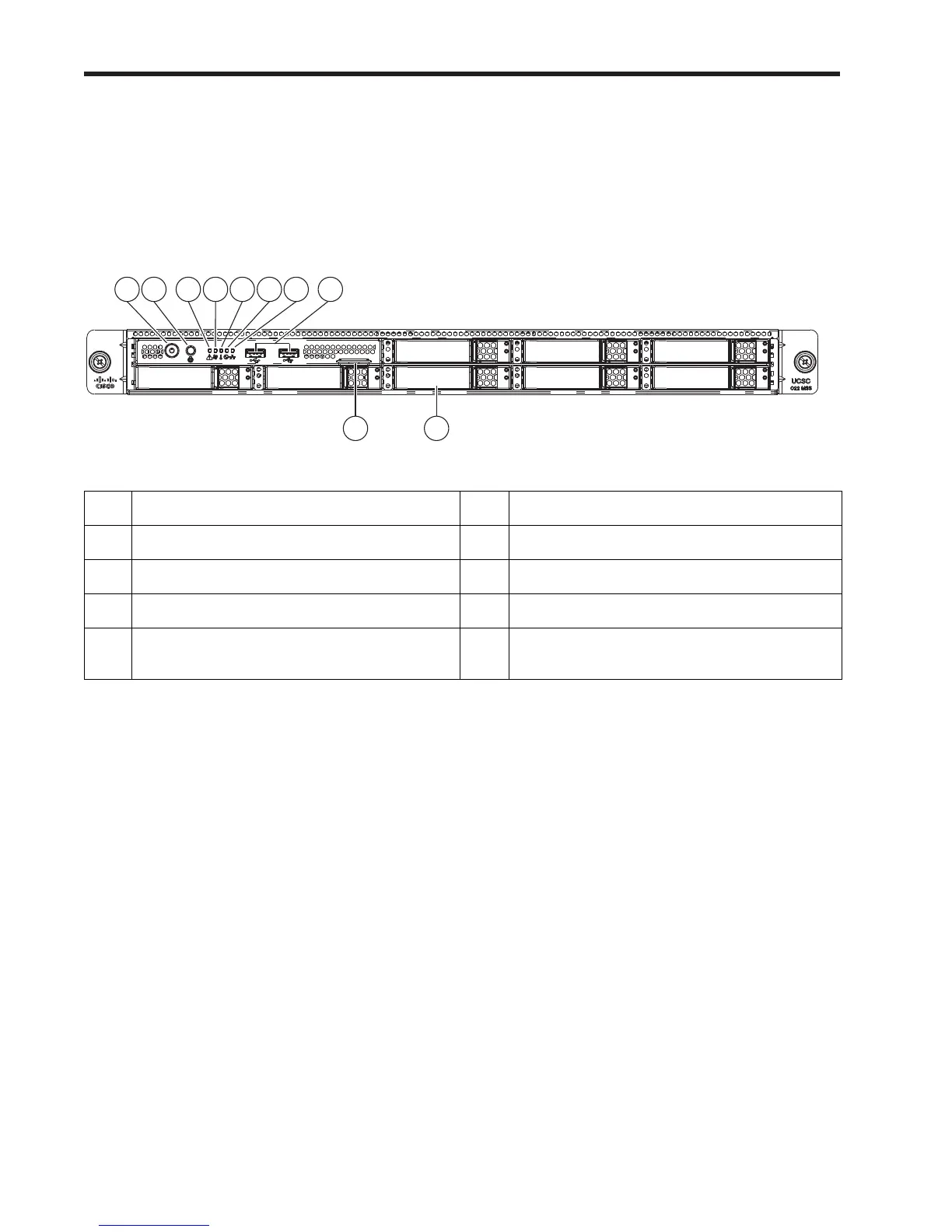

Figure 2 shows the Cisco UCS C22 M3 High-Density SFF Rack Server.
Figure 2 Chassis Front View
1 Power button/power status LED 6 Power supply status LED
2 Identification button/LED 7 Network link activity LED
3 System status LED 8 USB 2.0 ports (two)
4 Fan status LED 9 Pull-out asset tag
5 Temperature status LED 10 Drives
(up to eight hot-swappable 2-5-inch drives)
HDD06
HDD01
HDD07
HDD02
HDD08
HDD03
HDD04HDD04HDD04 HDD05HDD05HDD05
1 2 3 4
9 10
5 6 7 8
302158
