Cisco UCS C22 M3

Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
50
SUPPLEMENTAL MATERIAL

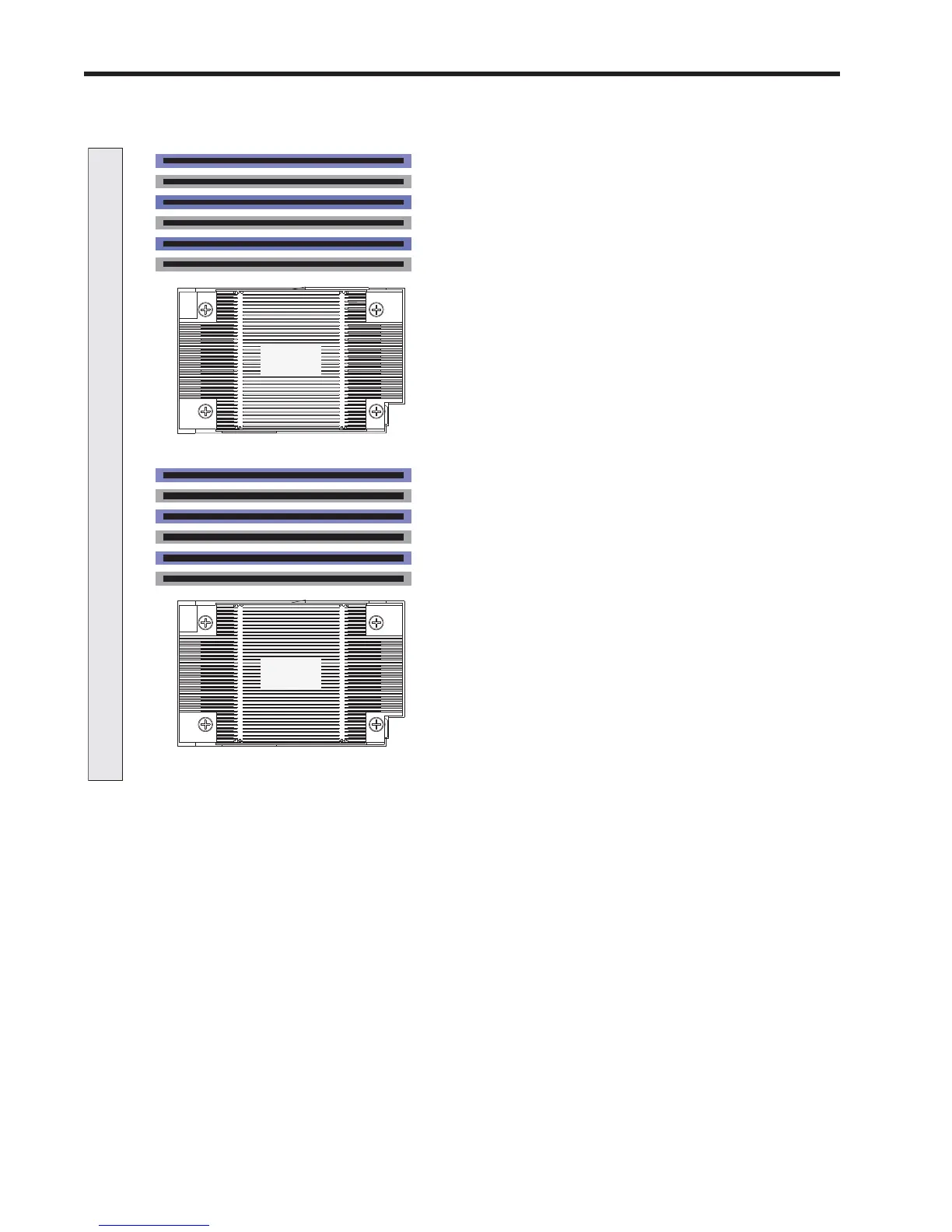

Figure 7 Physical Layout of CPU DIMM Channels and Banks
285209
A1
A2
B1
B2
C1
C2
D1
D2
E1
E2
F1
F2
Front of Server
CPU1
CPU2
