Cisco UCS C220 Installation And Service Guide

1-2
Cisco UCS C220 Server Installation and Service Guide
OL-25760-01
Chapter 1 Overview

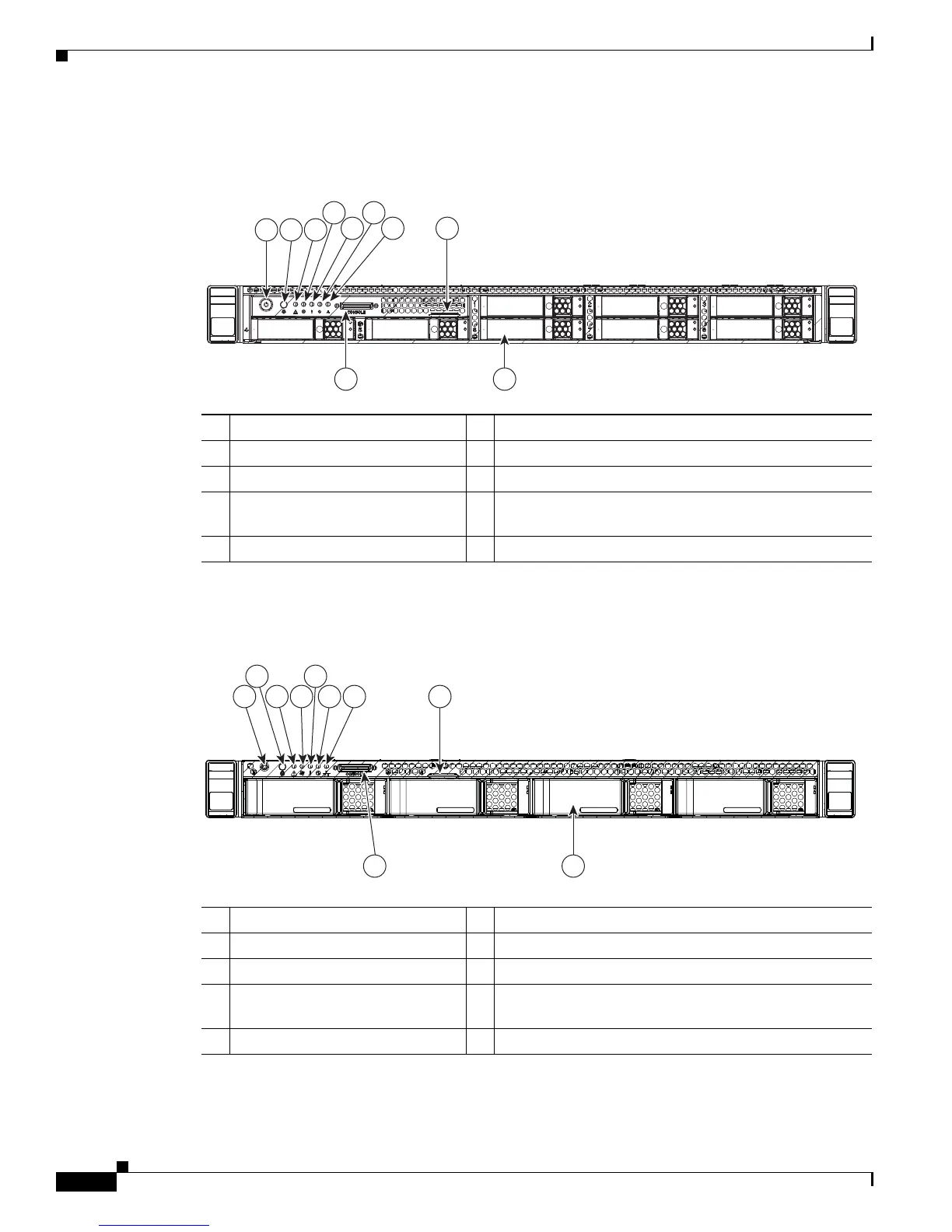

Figure 1-1 shows the front panel features of the SFF drives version of the server.
Figure 1-1 Cisco UCS C220 Server (Small Form Factor Drives) Front Panel Features
Figure 1-2 shows the front panel features of the LFF drives version of the server.
Figure 1-2 Cisco UCS C220 Server (Large Form Factor Drives) Front Panel Features
1 Power button/Power status LED 6 Power supply status LED
2 Identification button/LED 7 Network link activity LED
3 System status LED 8 Pull-out asset tag
4 Fan status LED 9 KVM connector (used with KVM cable that provides
t
wo USB, one VGA, and one serial connector)
5 Temperature status LED 10 Drives, hot-swappable (up to eight 2.5-inch drives)
HDD4 HDD5
HDD1
HDD6
HDD2
HDD7
HDD3
HDD8
8
9 10
1 3
4
5 7
6
2
331682
1 Power button/Power status LED 6 Power supply status LED
2 Identification button/LED 7 Network link activity LED
3 System status LED 8 Pull-out asset tag
4 Fan status LED 9 KVM connector (used with KVM cable that provides
t
wo USB, one VGA, and one serial connector)
5 Temperature status LED 10 Drives, hot-swappable (up to four 3.5-inch drives)
HDD1 HDD2 HDD3 HDD4
109
84 6 7
5
31
2
331684
