Cisco UCS C220 Server Installation and Service Guide
OL-25760-01
Chapter 3 Maintaining the Server
Installing or Replacing Server Components

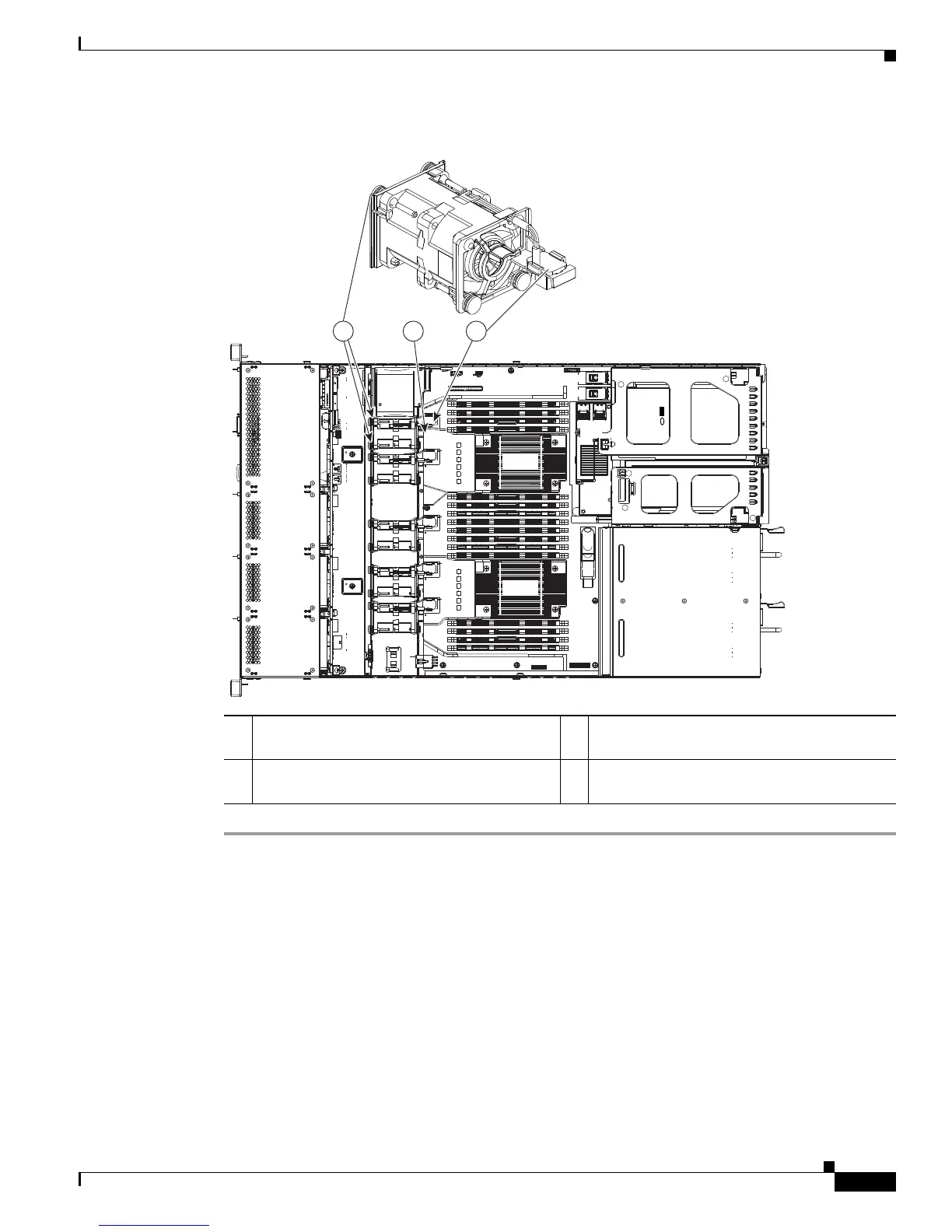

Figure 3-11 Replacing Fan Modules
1 Rubber dampening gaskets (two on each fan
module)
3 Fan connector to motherboard
2 Fan module fault LED on motherboard
(one for each fan module)
FAN1FAN1FAN1
FAN2FAN2FAN2
FAN3FAN3FAN3
FAN4FAN4FAN4FAN4
FAN5FAN5FAN5
PSU2
PCIe1
PCIe2
PSU1
CPU1
CPU2
SAS1
SAS2
SAS1 SAS2
1 2 3
331724

Cisco UCS C220 Specifications

General

Processor	Intel Xeon Scalable Processors
Management	Cisco Integrated Management Controller (CIMC)
Memory	Up to 3TB DDR4
Network Interface	Up to 4 x 10Gb Ethernet ports
Power Supply	Redundant power supplies, various wattage options
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
