Cisco UCS C240 M3 Service Note

3
Cisco UCS C240 M3 NEBS Server Service Note
OL-28629-01
Features Specific to the Cisco UCS C240 M3 NEBS Server

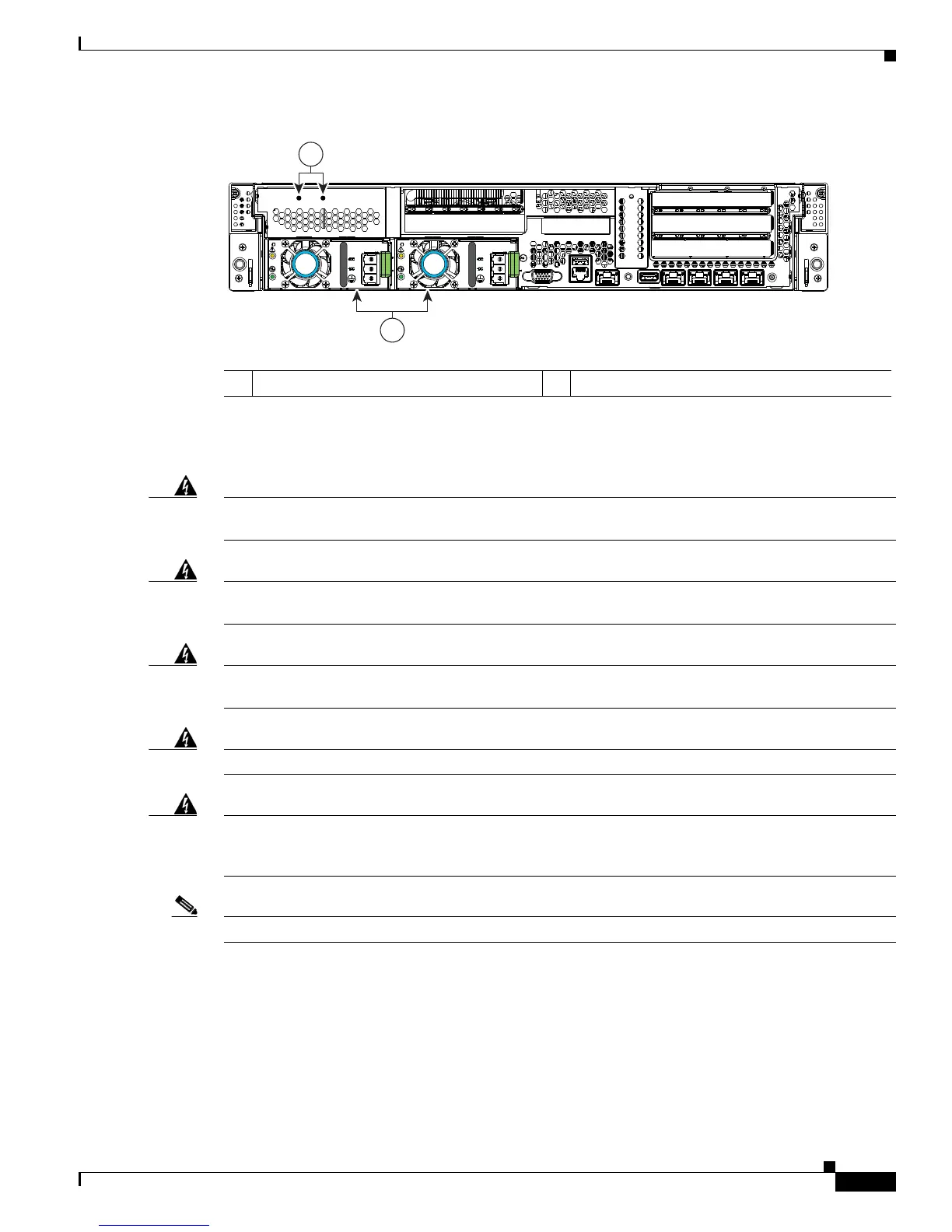

Figure 1-1 Cisco UCS C240 M3 NEBS Server Rear Panel (DC Power Supply Version)
Wiring a DC Power Supply
Warning A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.
Statement 1022
Warning This product requires short-circuit (overcurrent) protection, to be provided as part of the building
installation. Install only in accordance with national and local wiring regulations. Statement 1045
Warning When installing or replacing the unit, the ground connection must always be made first and
disconnected last. Statement 1046
Warning Installation of the equipment must comply with local and national electrical codes. Statement 1074
Warning Hazardous voltage or energy may be present on DC power terminals. Always replace cover when
terminals are not in service. Be sure uninsulated conductors are not accessible when cover is in
place. Statement 1075
Note The recommended wire gauge is 8 AWG. The minimum wire gauge is 10 AWG.
1 Screw holes for grounding lugs 2 DC power supplies (up to two)
PSU1 PSU2
PCIe 1
PCIe 2
PCIe 3
PCIe 4
PCIe 5
930W DC930W DC
1
2
346117

Cisco UCS C240 M3 Specifications

General

Processor cores	8
Processor model	E5-2600
Processor frequency	2.7 GHz
Number of processors installed	2
HDD size	2.5 \
RAID support	Yes
HDD interface	-
Optical drive type	No
Total storage capacity	300 GB
Maximum storage capacity	- TB
Number of HDDs installed	16
Memory slots	24
Internal memory	96 GB
Memory clock speed	1866 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
PCI Express x8 slots	3
Chassis type	Rack (2U)
Power supply	650 W
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 12000 m
Operating temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	712 mm
Width	445 mm
Height	87 mm
