Cisco UCS C240 M3 NEBS Server Service Note
OL-28629-01
Power Supply Specifications
Power Supply Specifications
This section contains the following topics:
• Power Supply LEDs (AC and DC), page 6
• 650 W AC Power Supply Specifications, page 7
• 930W DC Power Supply Specifications, page 7
Power Supply LEDs (AC and DC)
Figure 1-4 shows the rear of the 930 W DC power supply, but the LEDs and their states are the same for
the 650 W AC power supply. See Table 1-1 for an explanation of the LED states.

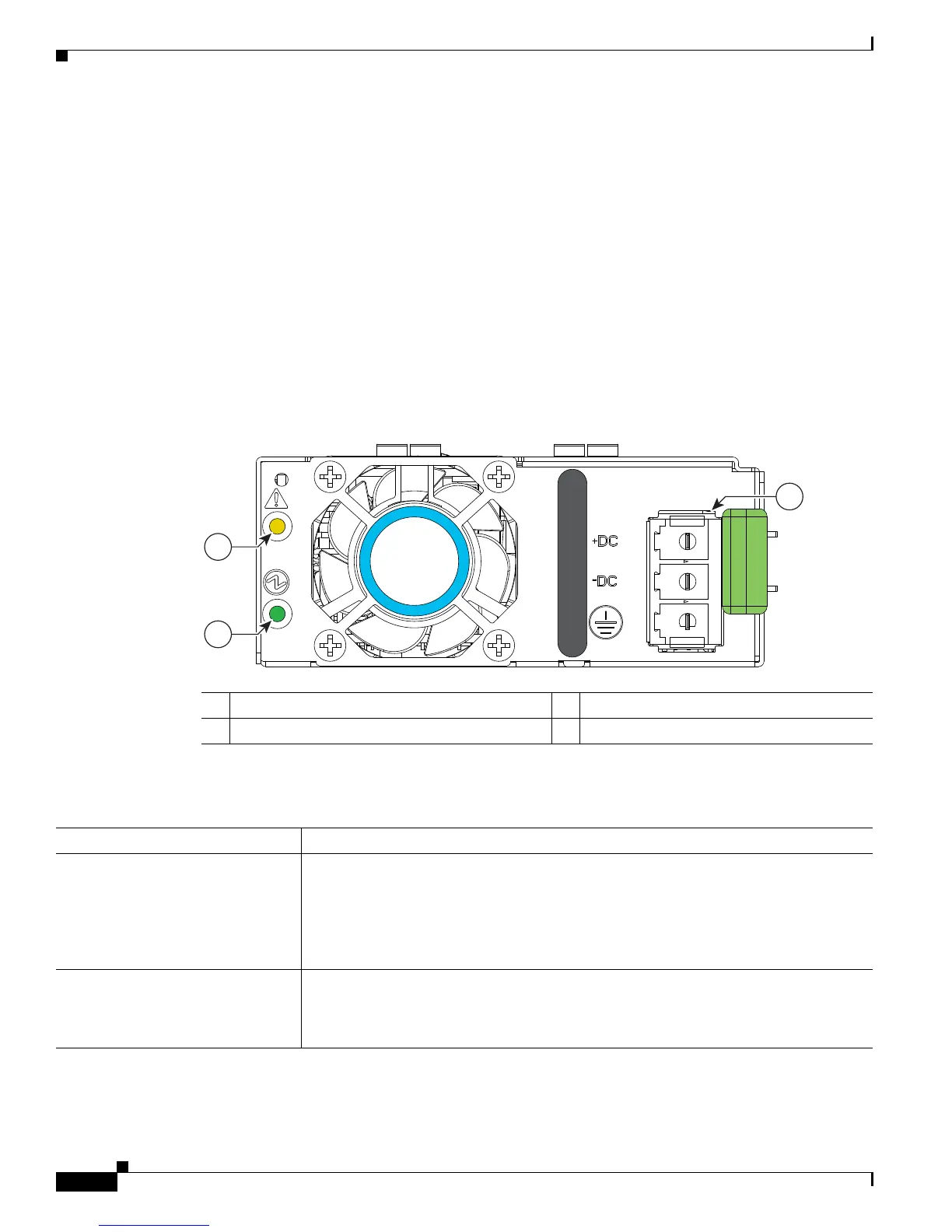

Figure 1-4 930 W, –48 VDC Power Supply (Rear View)
1 Power supply fault LED 3 DC input connector
2 Power supply status LED
930W DC
346116
1
2
3
Table 1-1 Power Supply LEDs, Definition of States
LED Name State
Power supply fault
• Off—The power supply is operating normally.
• Amber, blinking—An event warning threshold has been reached, but the power
supply continues to operate.
• Amber, solid—A critical fault threshold has been reached, which causes the power
supply to shut down (for example, a fan failure or an over-temperature condition).
Power supply status
• Off—There is no DC power to the power supply.
• Green, blinking—DC power OK; DC output not enabled.
• Green, solid—DC power OK; DC outputs OK.

Cisco UCS C240 M3 Specifications

General

Processor cores	8
Processor model	E5-2600
Processor frequency	2.7 GHz
Number of processors installed	2
HDD size	2.5 \
RAID support	Yes
HDD interface	-
Optical drive type	No
Total storage capacity	300 GB
Maximum storage capacity	- TB
Number of HDDs installed	16
Memory slots	24
Internal memory	96 GB
Memory clock speed	1866 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
PCI Express x8 slots	3
Chassis type	Rack (2U)
Power supply	650 W
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 12000 m
Operating temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	712 mm
Width	445 mm
Height	87 mm
