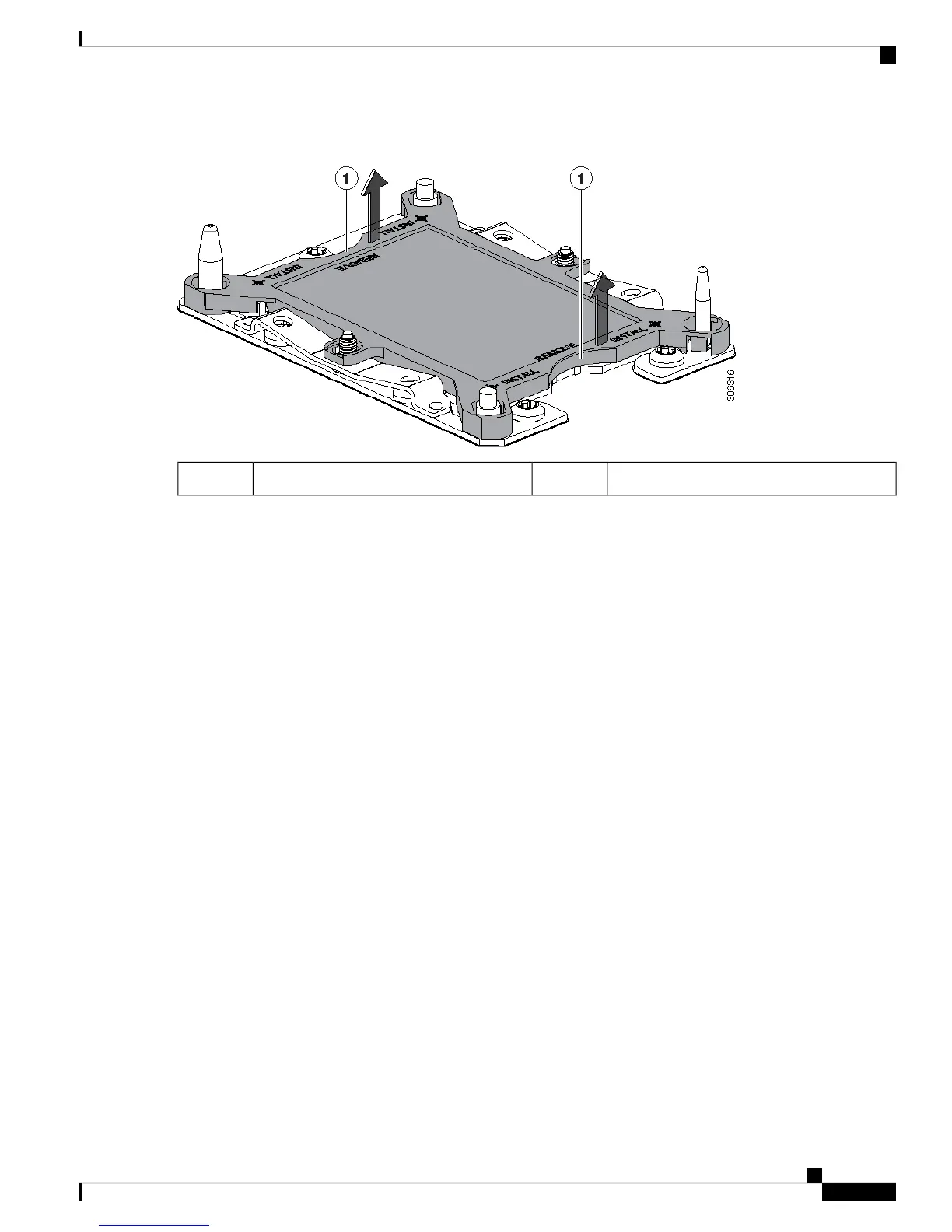

Figure 50: Removing a CPU Socket Dust Cover
-Finger-grip areas marked "REMOVE"1
b) With the wording on the dust cover facing up, set it in place over the CPU socket. Make sure that all alignment posts
on the socket plate align with the cutouts on the cover.
In the next step, do not press down anywhere on the cover except the two points described. Pressing
elsewhere might damage the socket pins.
Caution
c) Press down on the two circular markings next to the word "INSTALL" that are closest to the two threaded posts (see
the following figure). Press until you feel and hear a click.
You must press until you feel and hear a click to ensure that the dust covers do not come loose during
shipping.
Note
Cisco UCS C480 M5 Server Installation and Service Guide
105
Maintaining the Server
Moving an M5 Generation CPU
