Cisco Unified Access CT5760 Getting Started Guide

17
Catalyst 3850 Switch Getting Started Guide
OL-26778-02
Installing the Network Module (Optional)
StackPower Cabling Configurations
You can configure a StackPower stack of up to four switches for either power-sharing or redundancy.
This illustration shows the recommended stack configuration with connections using 0.3-meter
StackPower cables.
For more examples, see the Catalyst 3850 Switch Hardware Installation Guide on Cisco.com at:
http://www.cisco.com/go/cat3850_hw

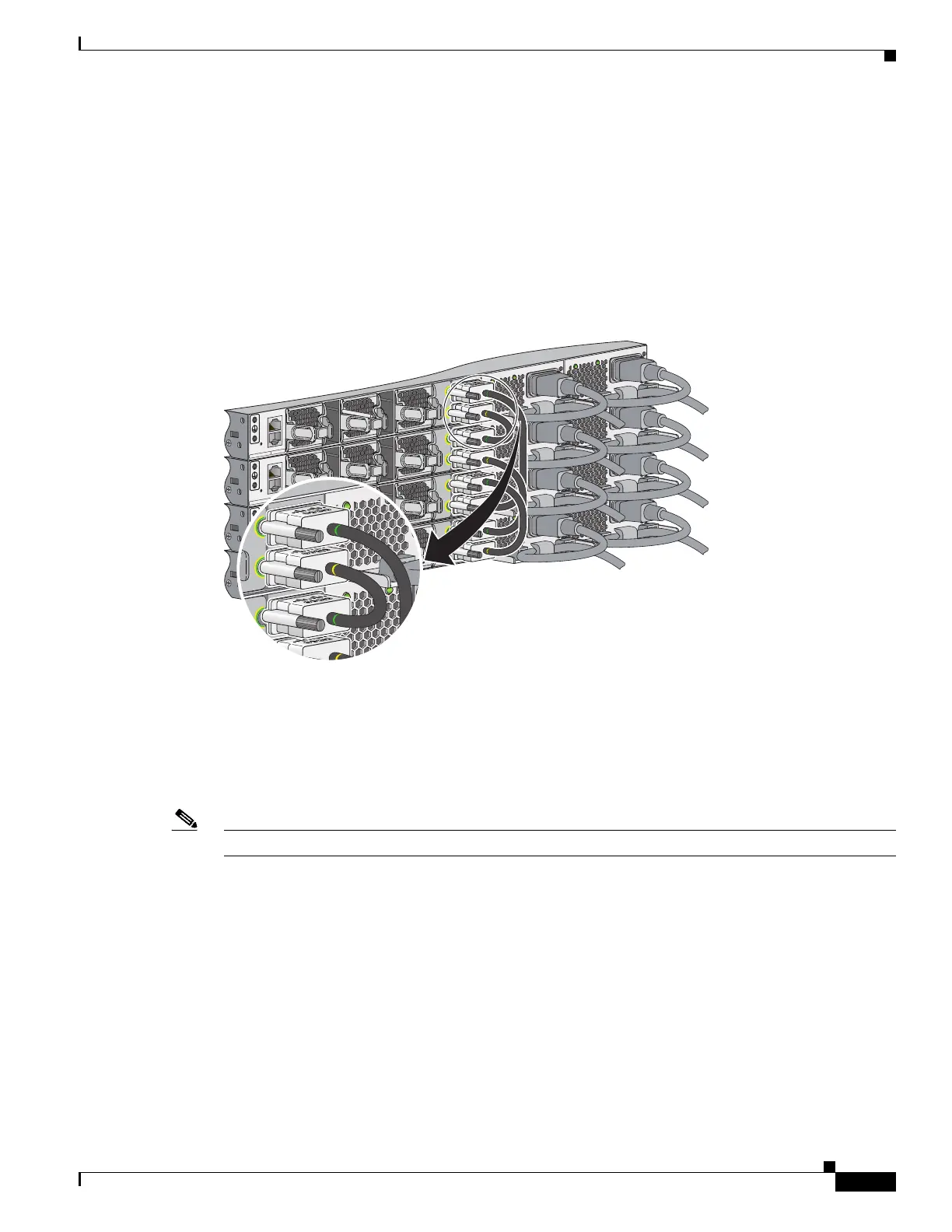

Figure 8 Example of a StackPower stack configuration
Installing the Network Module (Optional)
The switch accepts a hot-swappable network expansion module that provides SFP (1 Gigabit) and
depending on the model, SFP+ (10 Gigabit) uplink ports.
Note You need a number-2 Phillips screwdriver to install the network module.
