Cisco Webex Room Kit Pro User Manual

8 9
Choisissez l’emplacement de la Quad Camera
Coloque el soporte de pared de la Quad Camera
Decidir o posicionamento da Quad Camera
Decidere dove posizionare di Quad Camera
Positionieren der Quad Camera
FR
ES
PT
IT
DE
Montez la caméra sous l'écran si la hauteur de montage de l'écran est supérieure à 120 cm.
Coloque la cámara bajo la pantalla cuando la altura de montaje de la pantalla sea superior a 120 cm.
Instale a câmara por baixo do ecrã se a altura de montagem do ecrã for superior a 120 cm.
Installare la videocamera sotto lo schermo quando lo schermo è montato a un’altezza superiore ai 120 cm.
Montieren Sie die Kamera unter dem Bildschirm, wenn die Montagehöhe des Bildschirms höher als 120 cm ist.
FR
ES
PT
IT
DE
H > 120 cm / 47 "
A
H < 120 cm / 47 "
B
Montez la caméra au-dessus de l'écran si la hauteur de montage de l'écran est inférieure à 120 cm. Dans ce cas, la
hauteur de montage recommandée de l'écran est de 80 cm.
Coloque la cámara sobre la pantalla cuando la altura de montaje de la pantalla sea inferior a 120 cm. En este caso, la
altura de montaje recomendada de la pantalla es de 80 cm.
Instale a câmara por cima do ecrã se a altura de montagem do ecrã for inferior a 120 cm. Neste caso, a altura de
montagem recomendada do ecrã é de 80 cm.
Installare la videocamera al di sopra dello schermo quando lo schermo è montato a un’altezza inferiore ai 120 cm. In
questo caso, l'altezza consigliata per il montaggio dello schermo è di 80 cm.
Montieren Sie die Kamera über dem Bildschirm, wenn die Montagehöhe des Bildschirms niedriger als 120 cm ist. In
diesem Fall beträgt die empfohlene Montagehöhe des Bildschirms 80 cm.
FR
ES
PT
IT
DE
1

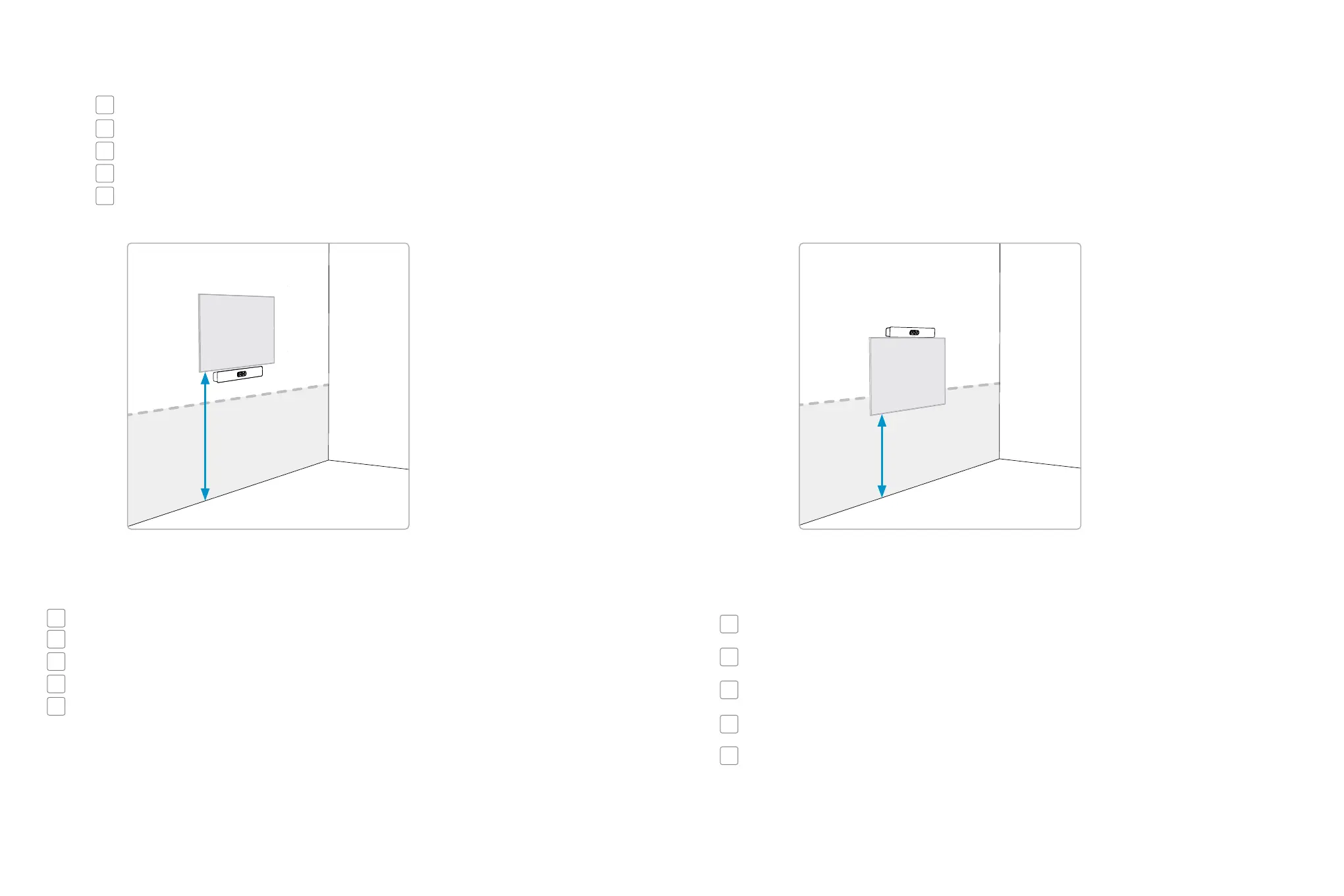

Decide where to position the Quad Camera
Mount the camera below the screen when the mounting height of the screen is higher than
120 cm / 47
".
Mount the camera above the screen when the mounting height of the screen is lower than 120 cm / 47
". In
this case, the recommended mounting height of the screen is 80 cm / 31.5
".

Cisco Webex Room Kit Pro Specifications

General

PTZ control	Yes
Product type	Personal video conferencing system
Product color	White
Tilt angle range	-20 - 20 °
Number of persons	1 person(s)
Display diagonal	10 \
Display resolution	1280 x 800 pixels
Viewing angle, vertical	48.8 °
Viewing angle, horizontal	80 °
Internal memory	4064 MB
Storage temperature (T-T)	10 - 90 °C
Operating temperature (T-T)	0 - 40 °C
Interface module RJ-45 ports quantity	1
Megapixel	- MP
Sensor type	CMOS
Digital zoom	2 x
Optical zoom	10 x
Image sensor size	- \
Video codecs	H.264, G.711, G.722, G.729, G.729ab, G.722.1, AAC-LD, Opus
Maximum frame rate	60 fps
Supported video modes	720p, 1080p, 2160p
Resolution at capture speed	1920x1080@30fps
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Data link protocols	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, NTP, DHCP, DNS
Current	3 A
DC input voltage	12 V
Harmonized System (HS) code	85176990
