8. CARBURATION REGULATION

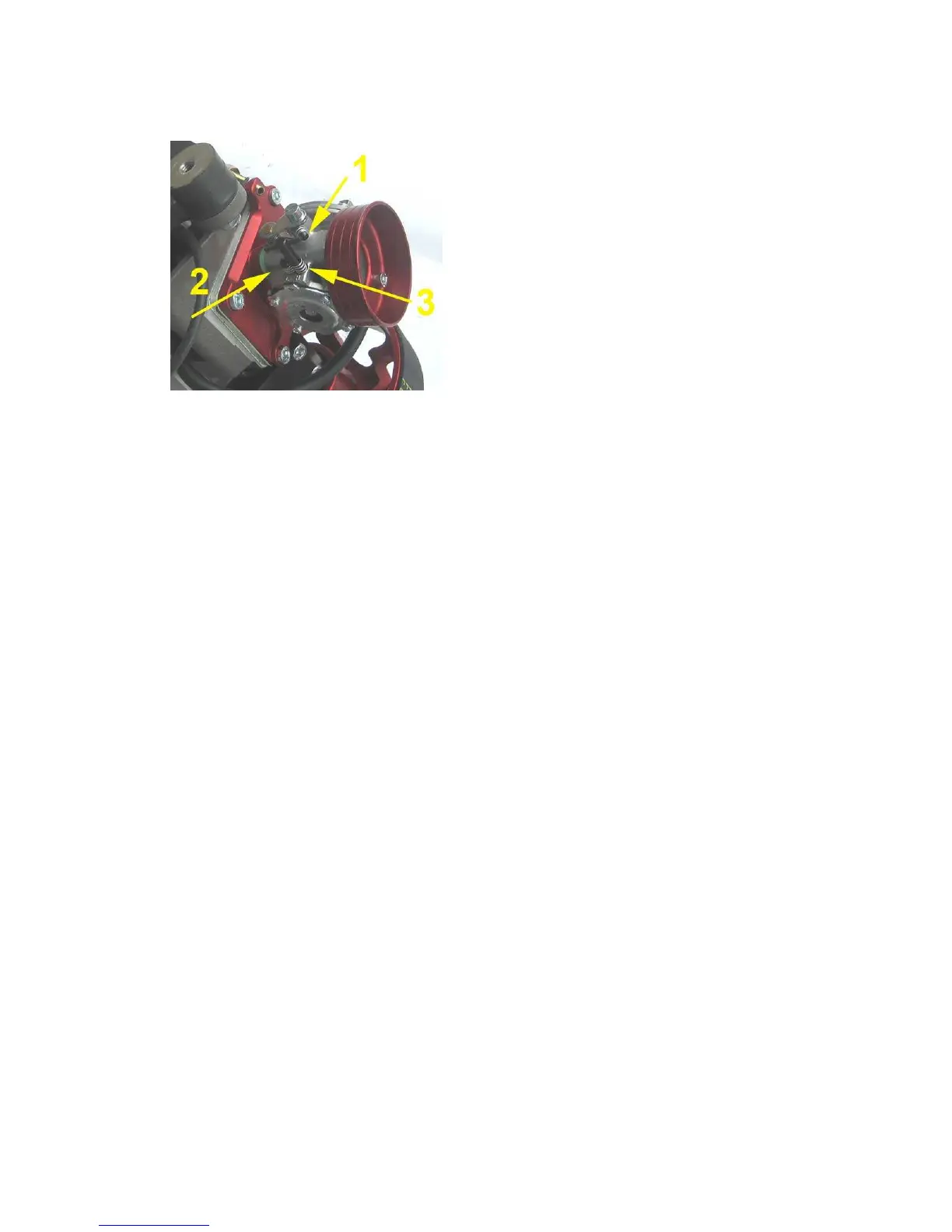

Figure 35
1. Regulation min.throttle engine
2. Regulation gasoline/air min. (L)
3. Regulation gasoline/air max (/H)
Standard regulation
In case problems of wrong carburation , replace the originals levels.
Screw regulation of min. 1 turn from all closing. . (Fig.35 point 2)
Attention: regulation of carburation must be made at warm motor.
1. Start the engine.
2. To warm the motor for 4 or 5 minute to the regimen of spin of 3500/4000rpm;
3. Regulate the screw of max jet H, ((Fig.35 point 3) from 1 turn to 1-1/4 from all closing.
4. Regulate the screw of the minimal jet L, (Fig. 35 point 2)from 3/4 to 1 turn, to put the
motor to 5000 rpm, to screw or to unscrew the screw until when the motor turns cleaned up
and does not mutter;
5. To leave the motor for some second ones at minimum, to accelerating normally , now the
motor must quickly accelerate without mumbling or to come less.
6. To regulate the lessened motor spin of the 2000/2200 rpm. (Fig. 35 point 1) C-Max clutch
7. To regulate the lessened motor spin of the 2500/2600 rpm. (Fig. 35 point 1) C-Max electric
or manual starter.
