Page 13

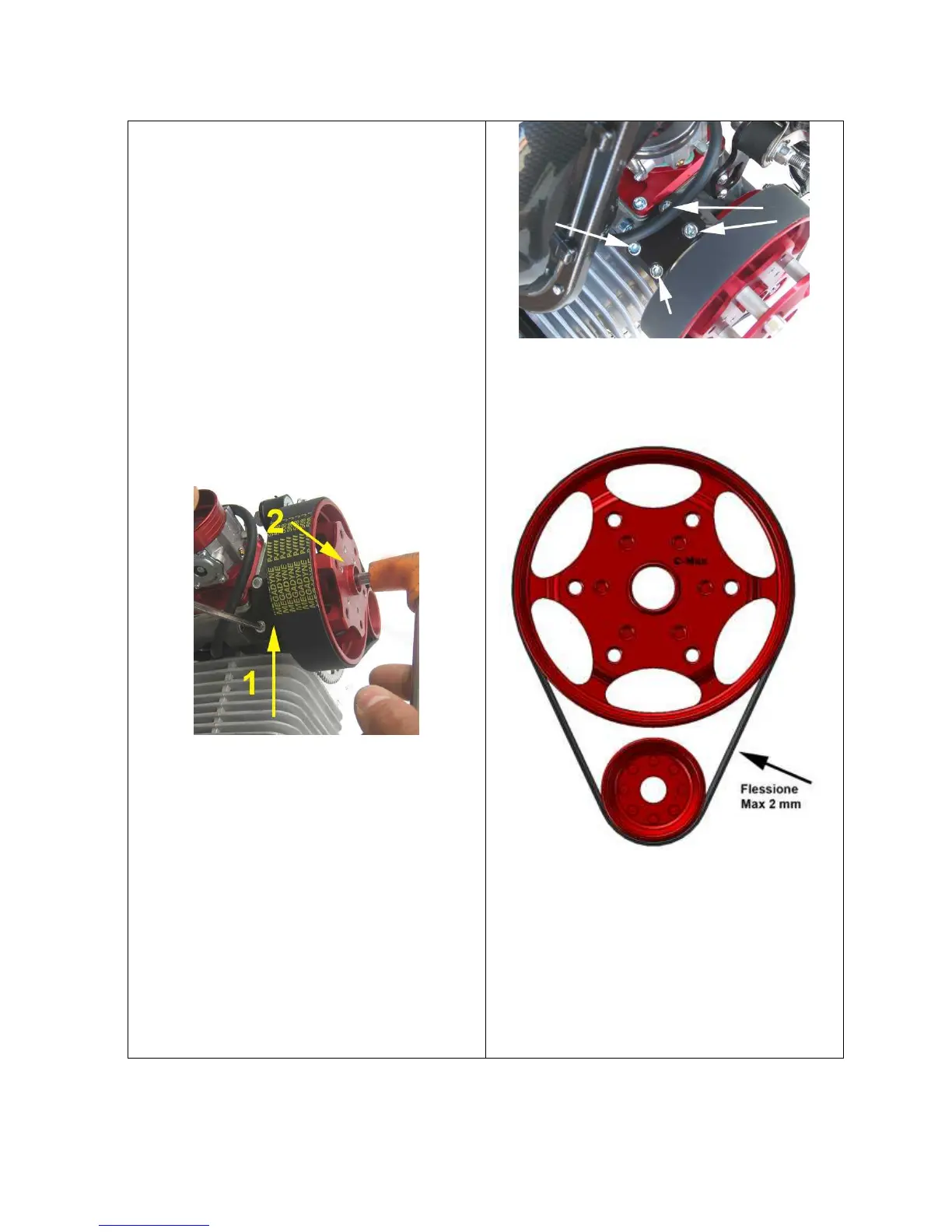

7. REGULATION BELT TRANSMISSION
The tension of belt must be done very carefully
1. Slightly little the 4 fix screws of
bracelet (Fig.32)
2. Insert an Allen key 8 m / m in the seat
(Fig32-1 point 2) and rotate counter-
clockwise torque of 400 Nm (40kgf / m)
3. Tighten the 4 Allen using the cross
method the specified torque
• TORQUE: 12Nm (1,2 kgf/m)
Figure 32-1
CAUTION:
Control the tension as Fig.32-2
1. Tension too taut it’s cause of early usury
of bearing
2. Tension too loose it’s cause of exessive
consumpion of belt.
Figure.32
Figure.32-2
