— 7 —

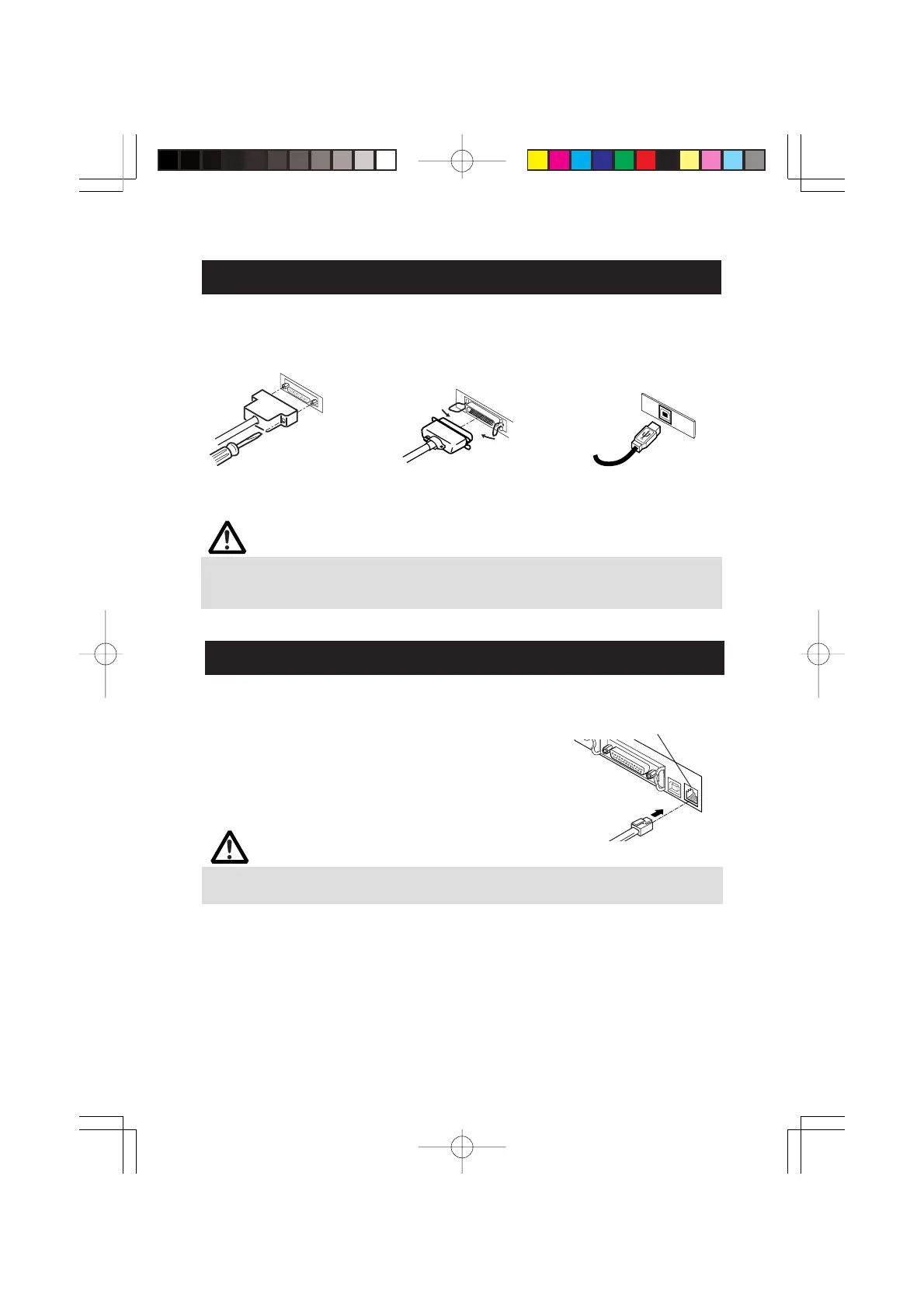

4 Connecting Interface Cables
Confirm that the power switch is OFF and connect the interface cable.
Orient the interface cable terminal correctly and insert it into the interface connector.
CAUTION!
■ For the method of using the Ethernet interface, refer to Separate volume.
■ When disconnecting the cable, always hold the connector.
■ Be careful not to insert the USB interface cable into the cash drawer kick-out connector.
Serial Interface Parallel Interface USB Interface
Cash drawer
kick-out connector
Cash drawer cable
connector
5 Connecting the Cash Drawer
1. Confirm that the power switch is OFF.
2. Confirm the top and bottom of the cash drawer
cable connector and insert it into the cash
drawer kick-out connector at the back of the
printer.
3 Screw the cash drawer's ground wire to the body
of the printer.
CAUTION!
DO NOT connect any other device than the specified cash drawer to the cash drawer
kick-out connector. (DO NOT connect a telephone line either.)
To Next Page
