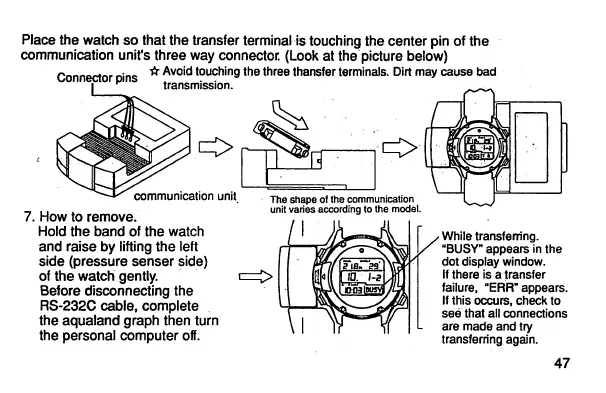

Place the watch so that the transfer terminalis touching the center pin of the
communication unit's three way connector. (Look at the picturebelow)
Connector pins
tV Avoid touching the three thansfer terminals. Dirtmay cause bad
transmission.
. How to remove.
Hold the band of the watch
and raise by lifting the left
side (pressure senser side)
of the watch gently.
Before disconnecting
the
RS-232C cable, complete
the aqualand graph then turn
the personal computer off.
The shape of the communication
unit varies according to the model.
While transferring.
"BUSY" appears in the
dot display window.
If there is a transfer
failure, "ERR" appears.
If this occurs, check to
see that all connections
are made and try
transferring again.
