Citizen JCTV1586 - Location of Controls

8
POWER
POWER
T.REC
REC/OTR
REC/OTR
VOLUME
CHANNEL
STOP/EJECT
REW
F.FWD
VIDEO IN AUDIO IN PHONES
PLAY

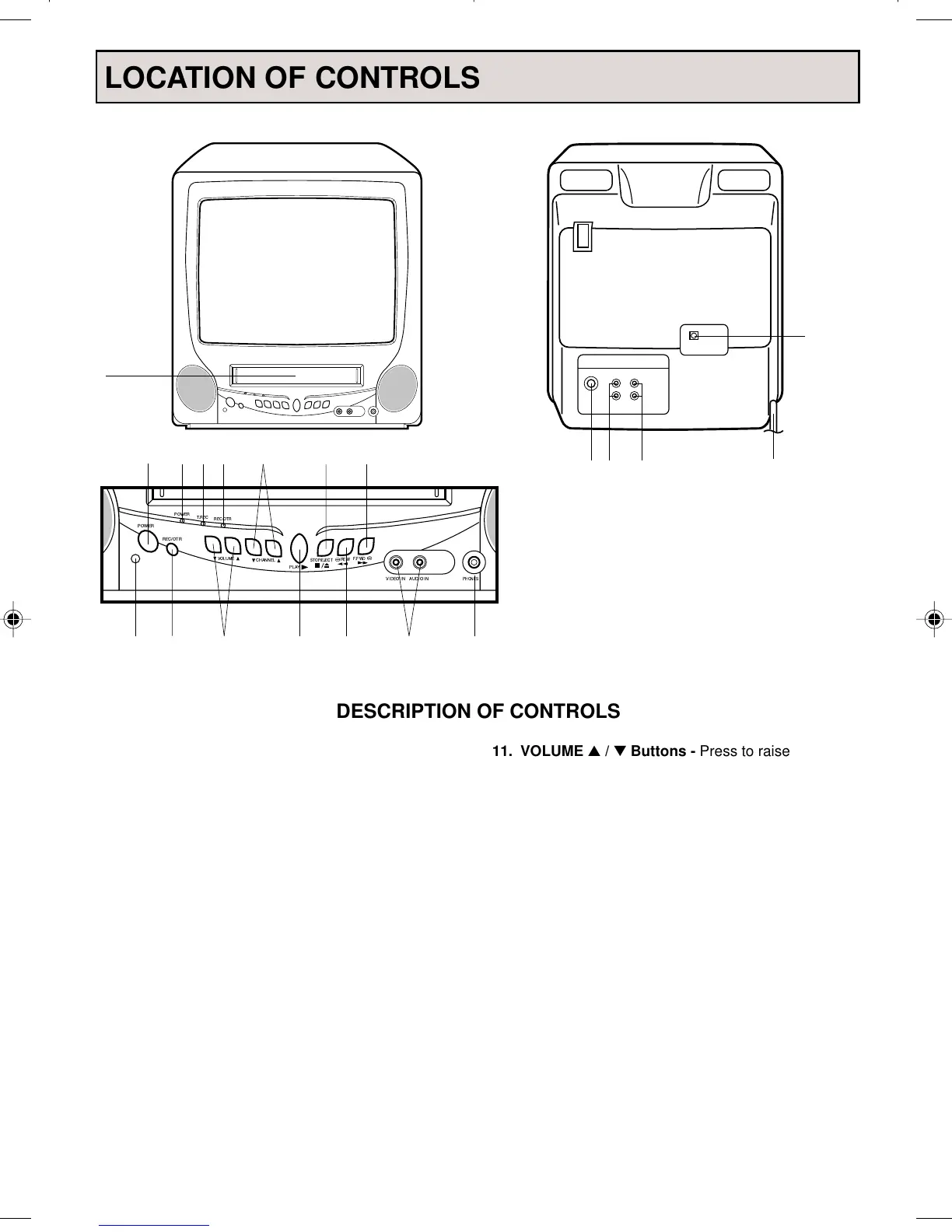

LOCATION OF CONTROLS
DESCRIPTION OF CONTROLS
11. VOLUME ▲ / ▼ Buttons - Press to raise or lower
the level of the sound.
12. PLAY Button - Press to play a prerecorded tape.
13. REW (Rewind) Button - In the Stop mode, this
button rapidly winds the tape backwards. In the
Play mode, this button activates reverse search.
14. AUDIO/VIDEO IN (LINE 2) Jacks - Audio and video
signal cables from an external source can be
connected here.
15. PHONES Jack - Plug monaural headphones or an
earphone with an 1/8" miniplug into this jack for
private listening.
REAR:
16. UHF/VHF Antenna Jack - Connect the 75 ohm
coaxial cable from the antenna or Cable TV service
to this jack.
17. AUDIO/VIDEO OUT Jacks - Used to output audio
and video signals to a TV, amplifier or VCR.
18. AUDIO/VIDEO IN (LINE 1) Jacks - Audio and video
signal cables from an external source can be
connected here.
19. AC Power Cord - Connect to a 120V, 60Hz outlet.
20. DC Input Jack - Connect the 12V DC car cord
(supplied) here for DC operation.
FRONT:
1. Cassette Loading Slot - To insert or remove a
video tape.
2. POWER Button - Press to turn the TV/VCR on or off.
3. POWER Indicator - Lights when the power is
turned on.
4. T.REC Indicator - Lights when the unit is in the
Timer Record Mode.
5. REC/OTR Indicator - Lights up when the TV/VCR
is recording.
6. CHANNEL ▲ / ▼ Buttons - Press to select a chan-
nel for viewing or recording.
7. STOP/EJECT Button - Press once to stop the tape
in any mode. Press again to eject the tape.
8. F.FWD (Fast Forward) Button - In the Stop mode,
this button rapidly winds the tape forward. In the
Play mode, this button activates forward search.
9. Remote Sensor - Signals from the Remote Control
are received here.
10. REC/OTR Button - Press once to start normal
recording. Additional presses activate One-touch
Timer Recording.
VIDEO
AUDIO
LINE1OUT
UHF/
VHF
FRONT REAR
16
19
17 18
20
32 54 678
119 12 13 14 15
1
10
