For information about performing initial configuration of your appliance, see Initial Configuration.
Citrix ADC MPX 25000A
September 22, 2022
The Citrix ADC MPX 25100A, MPX 25160A, and MPX 25200A are 2U appliances. Each model has two
eight‑core processors, 256 GB of memory, eight 40G QSFP+ ports (8x40G QSFP+).
The front panel of the MPX 25100A, MPX 25160A, and MPX 25200A appliances has a (8x40G QSFP+) port
configuration.

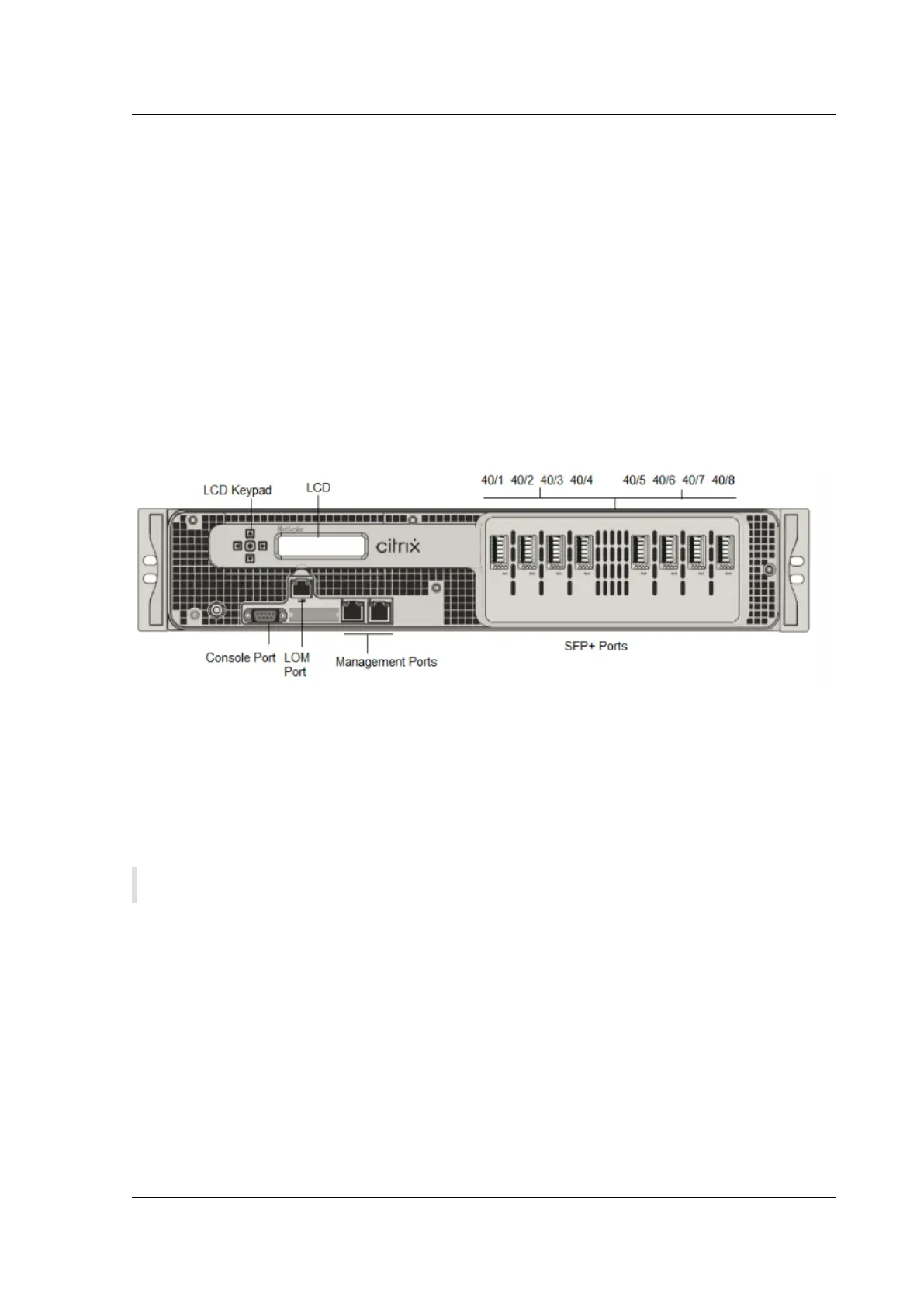

Figure 1. Citrix ADC MPX 25100A, MPX 25160A, and MPX 25200A, front panel
The Citrix ADC MPX 25100A, MPX 25160A, and MPX 25200A appliances have the following ports:
• RS232 serial Console Port.
• 10/100Base‑T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Network Ports, eight 40G QSFP+ ports. For information about supported transceivers per port,
see 25G, 40G, 50G, and 100G ports.
Note: 40G ports do not support 10G and 1G transceivers.
The following figure shows the back panel of the MPX 25100A, MPX 25160A, and MPX 25200A appli‑
ances.
