Note
There are no native 10G ports on 26000‑100G. The 100G ports support native 40G/50G/100G
transceivers, DAC and AoCs. To support native 10G and 25G transceivers, DAC and AoCs, use
an SFP+ to QSFP+ adapter.
The following figure shows the back panel of the Citrix ADC MPX 26000‑100G and Citrix ADC MPX
26000T‑100G appliances.

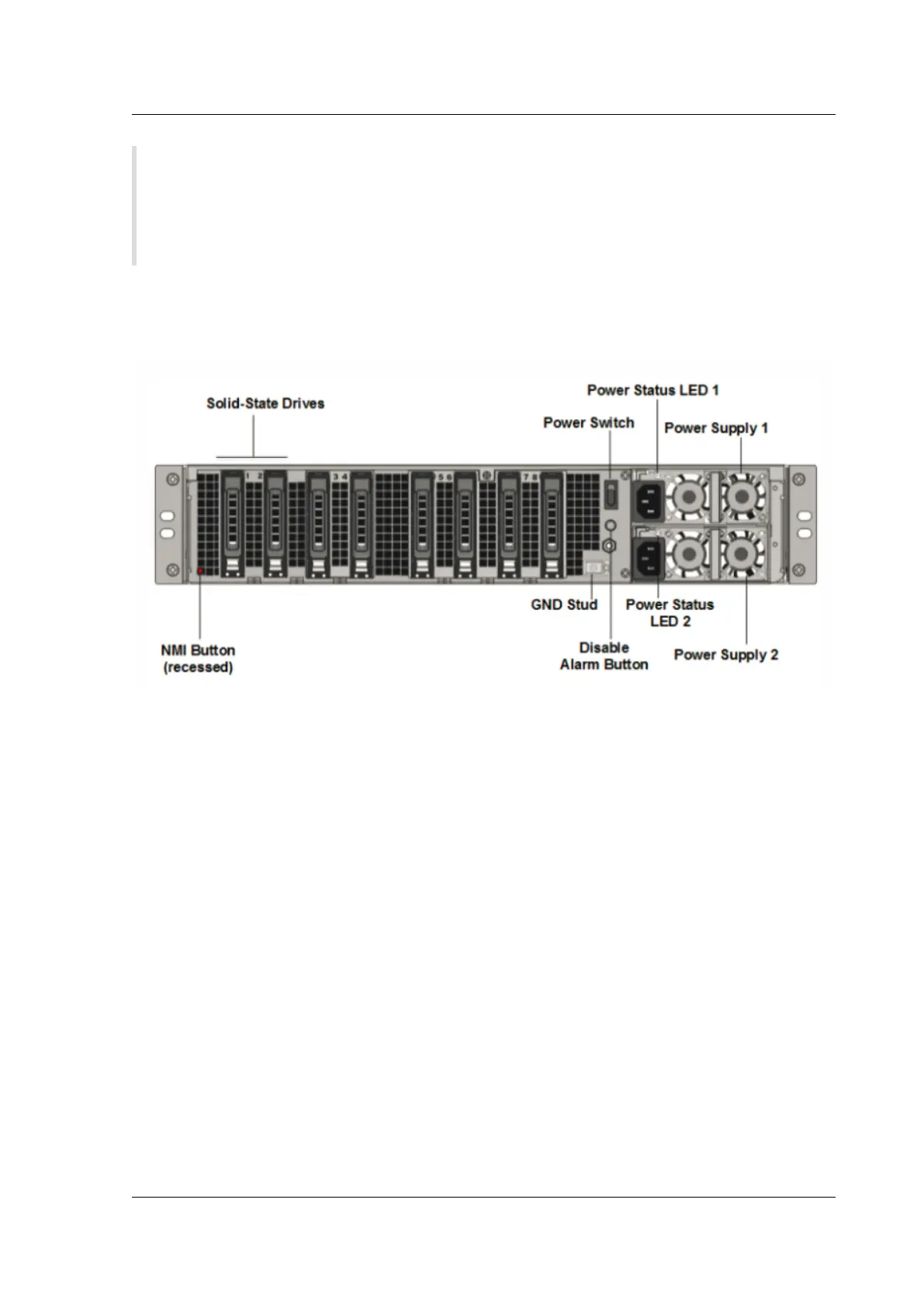

Figure 2. Citrix ADC MPX 26000‑100G and Citrix ADC MPX 26000T‑100G, back panel
The following components are visible on the back panel of the Citrix ADC MPX 26000‑100G and Citrix
ADC MPX 26000T‑100G appliances:
• Two 480 GB or larger removable solid‑state drives in a redundant array of independent disks
(RAID) configuration. In a RAID configuration, the same data is stored on multiple drives to im‑
prove performance, increase storage capacity, lower the risk of data loss, and provide fault tol‑
erance. The two SSDs store the same data. If one fails and you replace it, the new SSD mirrors
the other one.
Note: Drive densities might increase as components become EOL but its size is never smaller
than the original.
• Power switch, which turns power to the appliance on or o.
– Ifthe OS is functional, press the switch for less than two secondstopower down the system
with a graceful shutdown.
– If the OS is not responsive, press the power switch for more than 4 seconds to force the
power o.
• Two hot‑swappable 100–240 VAC input power supply modules. Each power supply has an LED
indicating its status:
