The Citrix ADC
MPX 22040/22060/22080/22100/22120 are 2U appliances. Each model has two 8‑core processors and
256 GB of memory. The
MPX 22040/22060/22080/22100/22120 appliances are available in two port configurations:
• Twelve 1G SFP ports and twenty‑four 10G SFP+ ports (12x1G SFP + 24x10G SFP+)
• Twenty‑four 10G SFP+ ports (24x10G SFP+)
The following figure shows the front panel of the MPX 22040/22060/22080/22100/22120 (12x1G SFP +
24x10G SFP+) appliance.

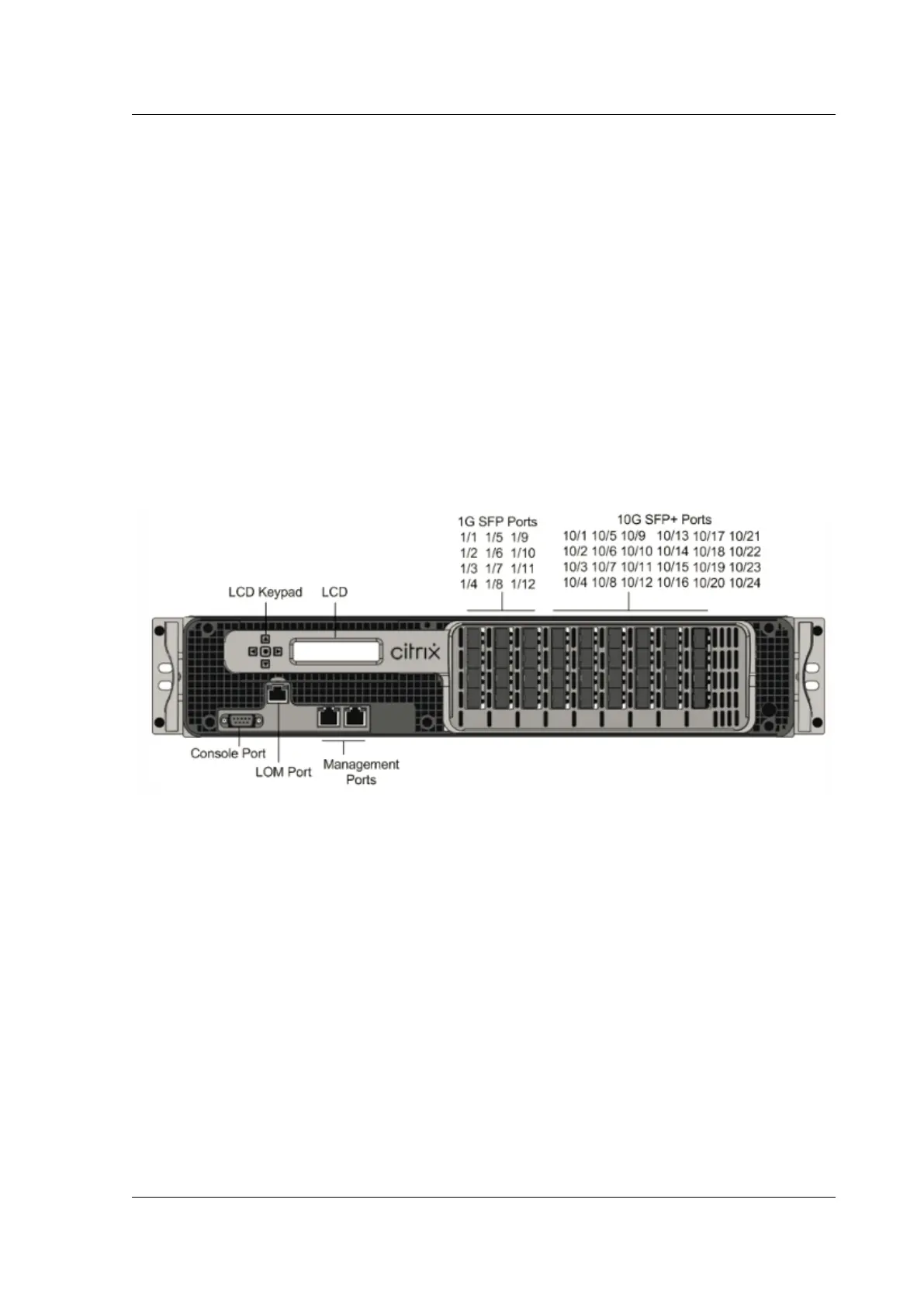

Figure 1. Citrix ADC MPX 22040/22060/22080/22100/22120 (12x1G SFP + 24x10G SFP+), front panel
The following figure shows the front panel of the MPX 22040/22060/22080/22100/22120 (24x10G SFP+)
appliance.
Figure 2. Citrix ADC MPX 22040/22060/22080/22100/22120 (24x10G SFP+), front panel
