In the event of a breakdown

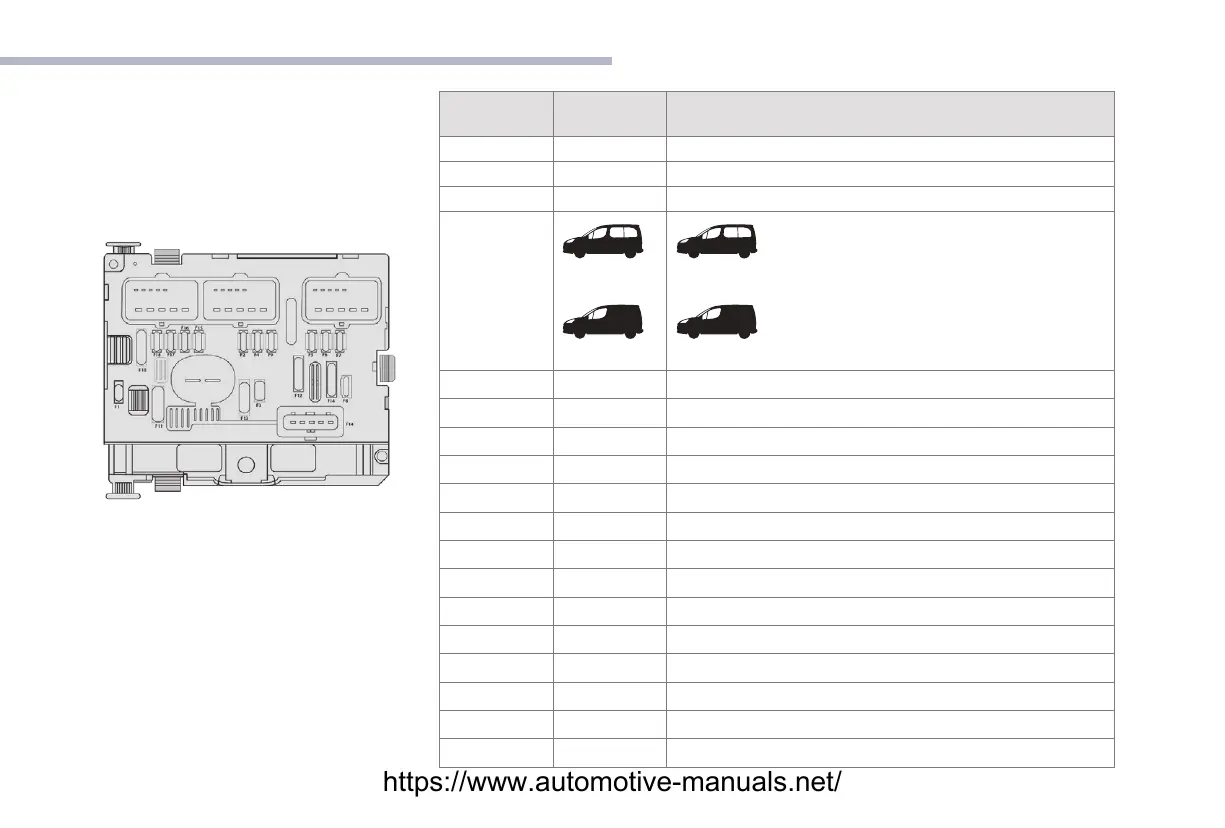

Underbonnet fuses
After opening the bonnet, unclip and tilt the
corresponding box to access the fuses.
Fuses
F
Amps
A
Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear screenwash pump
4
–
20
Free
LED
5 15 Engine components
6 10 Steering wheel angle sensor, ESC
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp adjustment motor, vehicle data recording control unit
10 30 Engine components
11 40 Free
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp
