CITROEN C5 2000 - Page 85

ENGINE
82
CHECKING AND SETTING THE VALVE TIMING
Engines : RHY - RHZ
Setting the valve timing (continued).
- Retighten the screws (21) by hand.
- Turn the pinion (24) (clockwise) to the bottom of the buttonhole.
- Refit the belt on the crankshaft (25).
- Hold the belt, using tool [4].
Reposition the timing belt, keeping the belt tight at «a»,
in the following order :
- Guide roller (23).
- Fuel high pressure pump pinion (26).
- Camshaft pinion (24).
- Water pump pinion (18).
- Tensioner roller (20).
NOTE : If needed, slightly turn the pinion (24) anti-clockwise (not by
more than one tooth).
- Remove the tool [4].

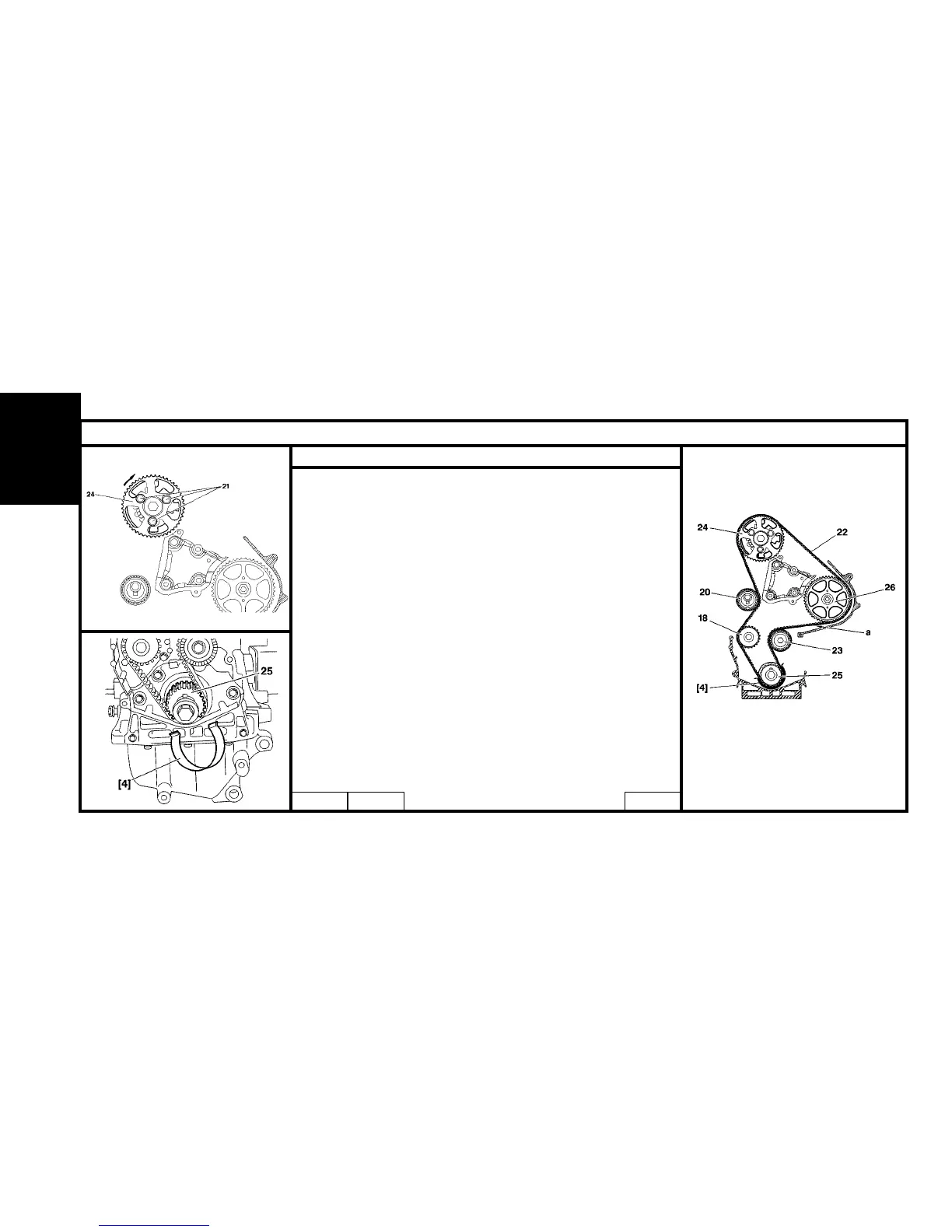

B1EP154C
B1EP155D
B1EP153D
