CITROEN C5 2000 - Page 86

ENGINE
83
Setting the valve timing (continued).

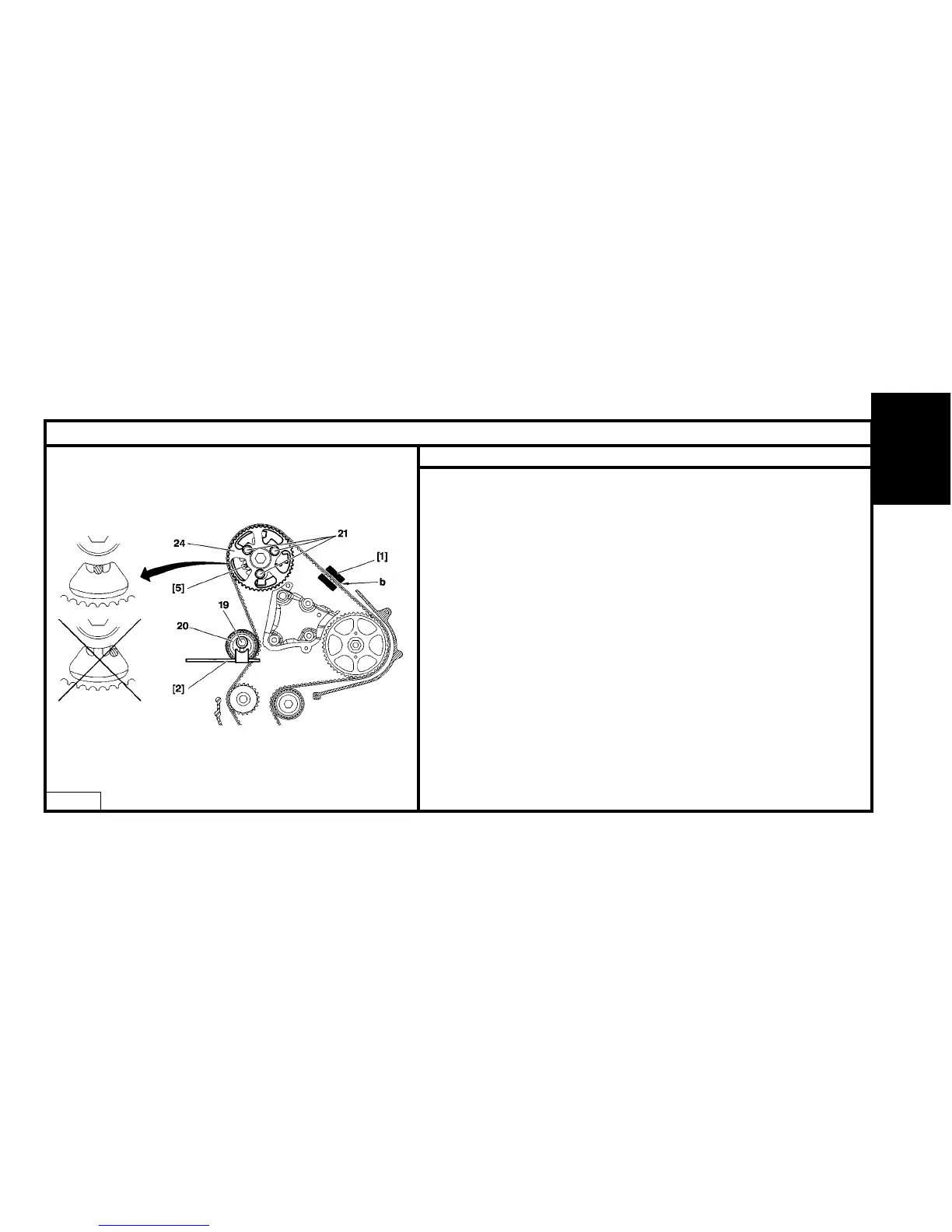

- Position tool [1] on the belt at «b».
- Turn the roller (20) (anti-clockwise) using tool [2] to attain a tension of :
98 ± 2 SEEM units.
- Tighten the screw of the roller (19), tighten to 2.5 m.daN.
- Remove one screw (21) from the pinion (24).
(to check that the screws are not against the end of the buttonhole).
- Tighten the screws (21) to 2.m daN.
- Remove tools [1], [2], [3] and [5].
- Rotate the crankshaft 8 times (normal direction of rotation).
- Fit the tool [3].
- Loosen screws (21).
- Fit tool [5].
- Loosen screw (19) (to free the roller).
- Fit tool [1].
- Turn the roller (20) (anti-clockwise), tool [2], to attain a tension of :
54 ± 2 SEEM units.
CHECKING AND SETTING THE VALVE TIMING
Engines : RHY - RHZ
B1EP156D
