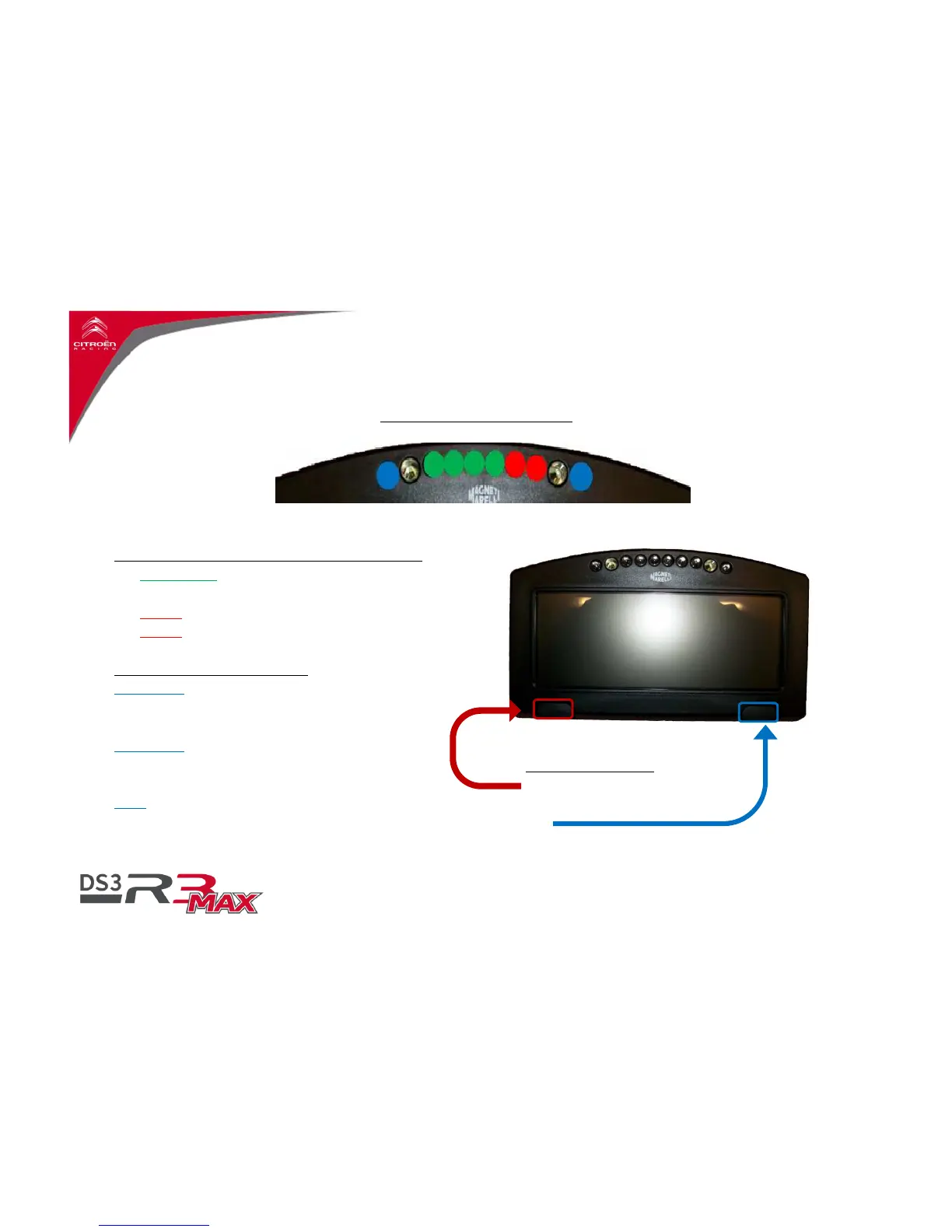

Driver System Overview
3. Dashboard Overview
10
System User Guide - 03.12.14
LED 1
/
LED A
/
LED B
/
LED C
/
LED D
/
LED E
/
LED F
/
LED 2
Revolution Information (if GDU is not installed)

LED A to D:
Engine’s approaching upshift rev
 Lighted 1 by 1

LED E:
Ideal time to shift

LED F:
Over revolution
Mode and Alarm Information
Led 1 only
 Blinking : Not used
 Freeze : Information
Led 2 only
 Blinking : Alarm medium level
 Freeze : Alarm Low level
Both
 Blinking : Start engaged or Alarm High Level
 Freeze : Not Used
DashBoard Information
Dashboard buttons
P1
 Zeroing fuel consumption
P2
 Scroll pages
