5. Hydraulic System
15
System User Guide - 03.12.14
Must be done if
Brand new parts lifted
High pressure network has been opened
Pump, Block, Pipes
Before
the standard clutch bleed
(thru pedal) has to be done.
Process
Check tank is full
Open the bleed screw w/ pipe
and catch tank as a standard clutch bleed
CAR Main SW ON
Switch Power OFF
Don’t touch on Clutch pedal!!!
Press on unlabeled switch during 5s
then switch Power ON

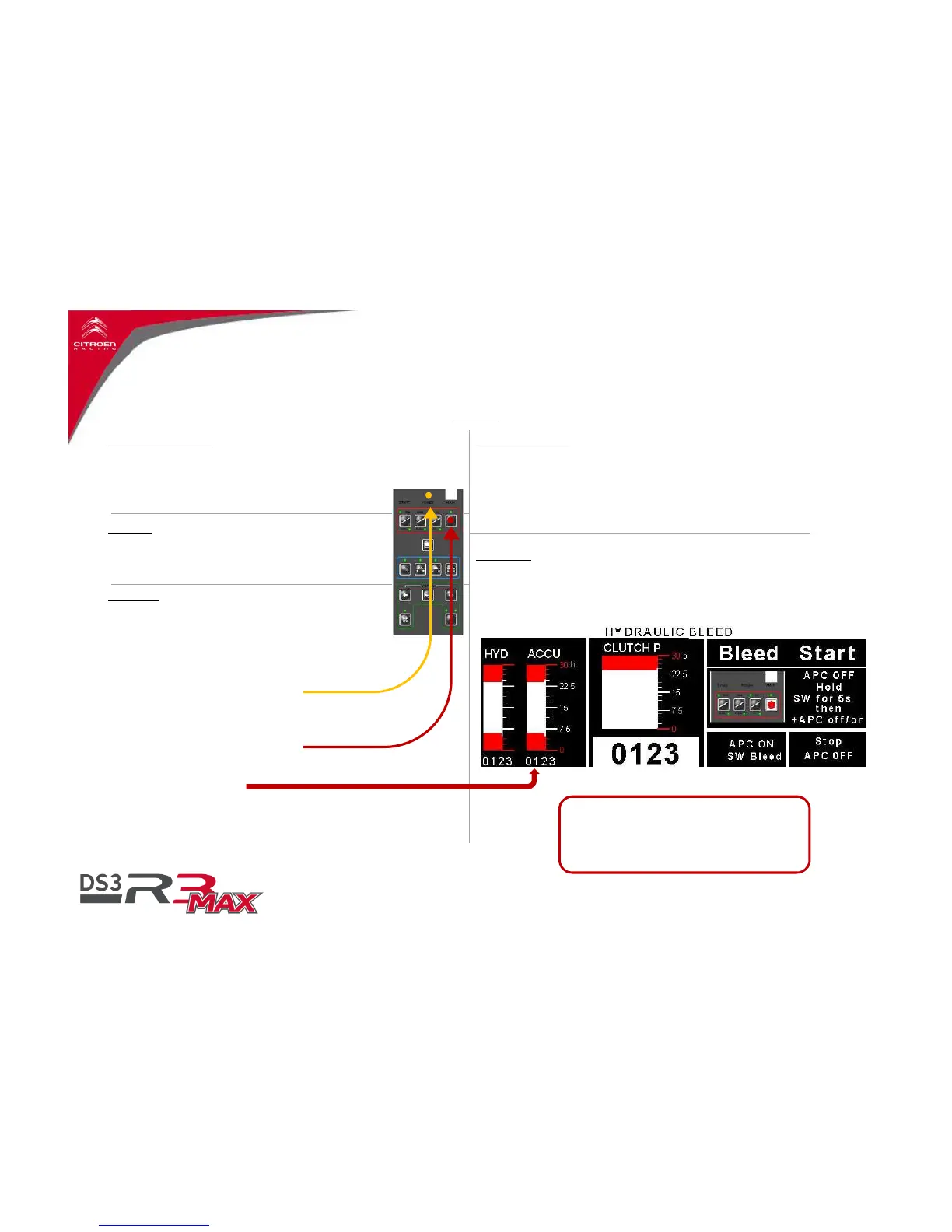

That page will appear if it is not already
displayed
The system will open the valves and start
running the pump
Will stop after
10s
If Power is switched OFF
If 40b is reached, meaning the bleeding
screw has been closed.
Must do
A complete reset (Power then Main) to go back to
standard hydraulic management.
Bleed
Nb: Please be aware that there are two
hydraulic networks, one linked to clutch
pedal ‘Standard’ and a second controlled
by ECU ‘System’. Check schematic for
further details…
