8. Calibration
19
System User Guide - 03.12.14
Steering Angle Calibration
Before
1. Engine Stopped
2. Gearbox in Neutral
3. APC OFF
4. Road mode ON
5. Make sure the wheels are straight (with zero pipe on)
6. Switch to “Verification Chassis” mech page

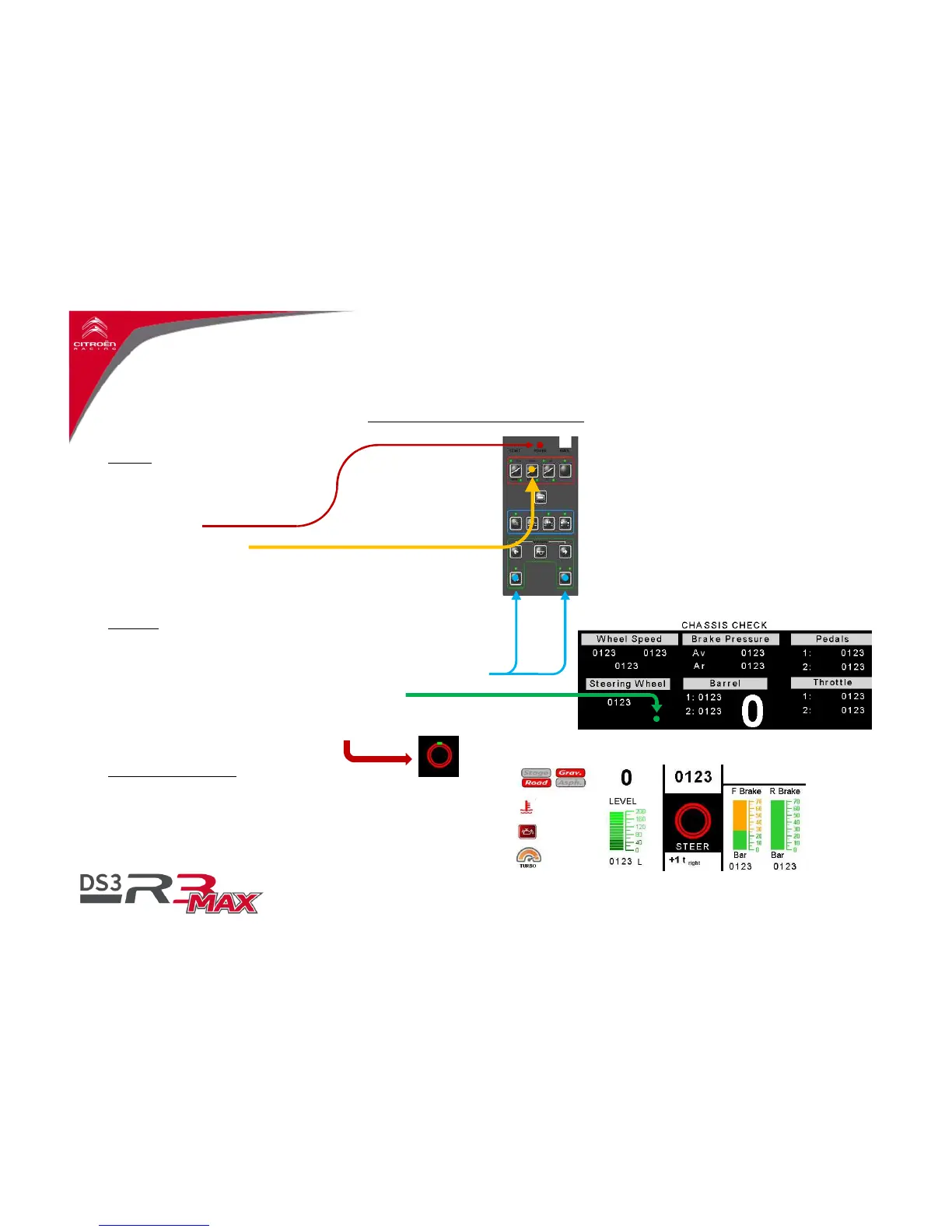

Process
1. Hold Steering wheel with straight line tool.
2. Press on Fan and Aux sw. at the same time during 5s
3. If OK, a green “OK“ icon should appear
4. Accuracy can be checked on driver checking page
Green tab appears when angle ±1°
Must be done after
1. Bosch steering angle module has been changed
2. ECU has been changed
3. Any work on steering system has been undertaken
