Micro-Touch® Stabilizer (Dual-Sided Table Mount) English
1
INTENDED USE
The equipment is intended to provide fixation, support and manipulation of transrectal ultrasound imaging probes during insertion and final placement.
ASSEMBLING TRANSPORTATION STAND
For use with Micro-Touch
®
Stabilizer (Dual-Sided Table Mount)

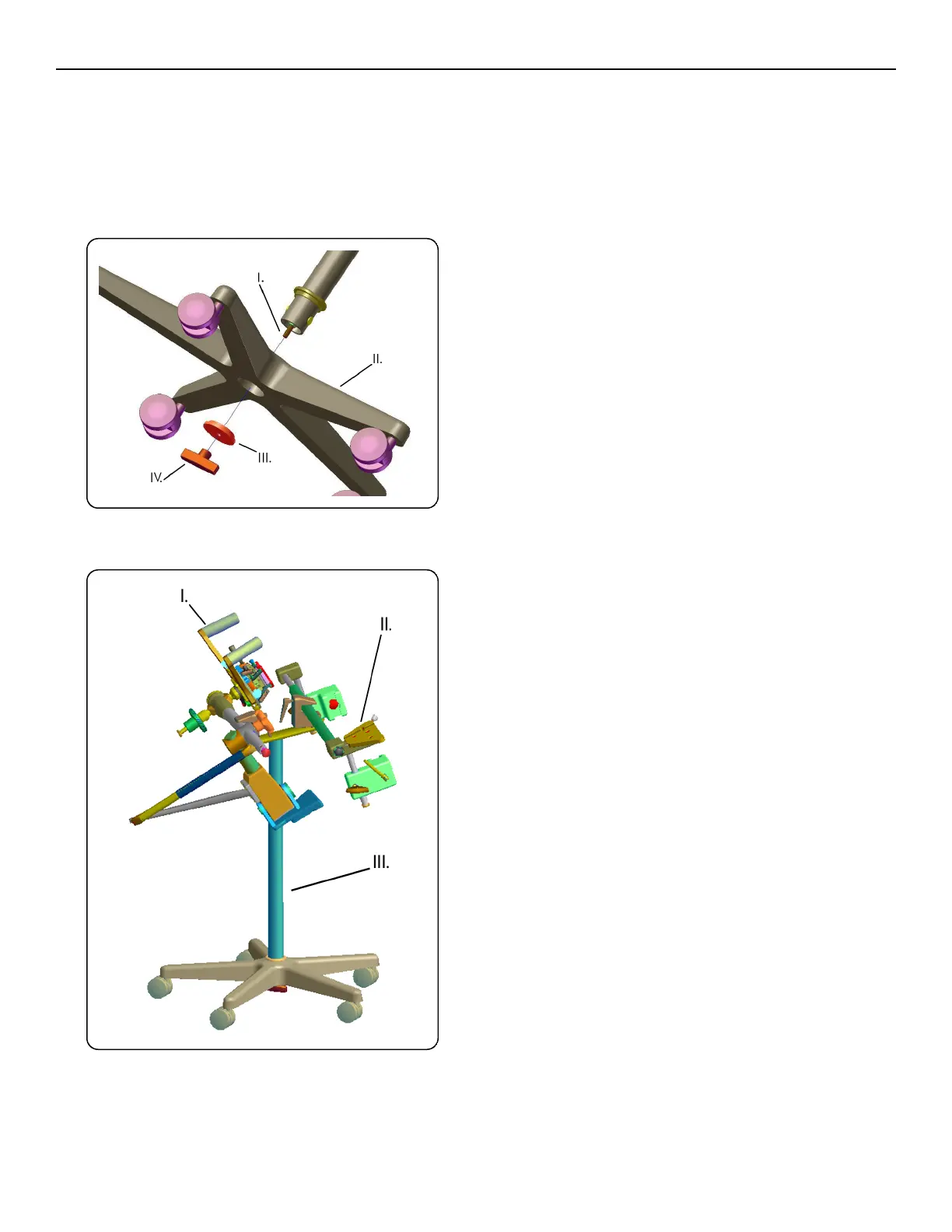

1. Insert threaded stud end of tube through center of rolling base.
2. Slide locating washer over threaded stud and nest into center of hole in rolling base.
3. Turn locking knob onto threaded stud and secure firmly.
I. Threaded stud
II. Rolling base
III. Locating washer
IV. Locking knob
4. The transportation stand provides a convenient and mobile platform to allow ease of cleaning and handling within the surgical environment. Stand
shown with stabilizer and table mount clamped in place.
I. Stabilizer
II. Table mount
III. Transportation stand
To Next Page
