CKD GX8275D User Manual

13
GX Series
CAUTION
Maintenance space
Ensure the following space to provide good ventilation
and make maintenance and inspection easier.
4 surrounding directions: 600mm and over in each direction
Top: 600mm and over
CAUTION

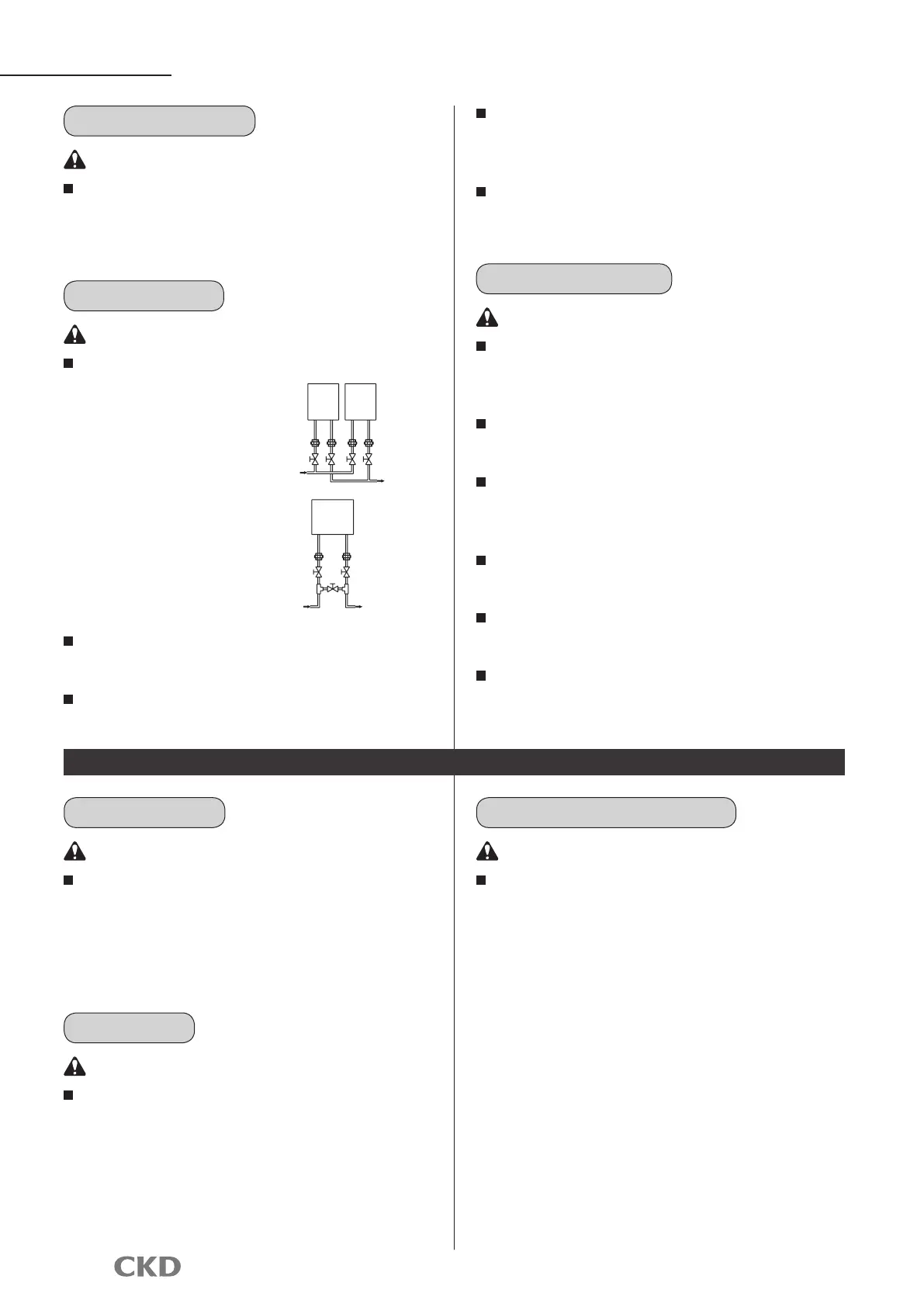

Air pipe method
Pipe the dryer as the following diagram.
24 hour operation:
A parallel installation
for emergencies is
recommended.
Use a unit for normal
operation and the
other as a spare.
Galvanized steel pipes (white pipes) are recommended
for pipe materials. Use stainless steel pipes according
to specications and applications.
Intermittent operation:
Install the bypass
pipe for maintenance.
Install the lter if necessary to prevent dirt in piping
from entering the dryer.
Design piping so that pipe weight is not applied on
the product.
Use piping that sufficiently withstands working
pressure. Check that air does not leak from
connections.
CAUTION
Drain piping method
Insert the nylon drain tube piping of 5.7 to 6.0mm
inner diameter directly into the drain cock of the
drain discharger.
Keep the tube length within 5m, and leave the
discharge end open to the atmosphere.
If the drain piping slopes upward or if piping is too
long, drainage may not be discharged. Pipe with a
downward slope so that drainage is ows naturally.
If oil enters drainage, it must be drained and treated.
Contact an industrial waste specialist for treatment.
Securely x the drain discharge tube, etc., so that it
does not sway during drain discharge.
Fully open the ball valve installed before the drain
discharger during normal operation. Operate the
ball valve during maintenance.
During Use & Maintenance
Freon collection
WARNING
This product complies with the Japanese “Law for
practice for Freon collection and destruction on
specific products (Freon recovery and destruction
law)”. Ensure to recover Freon gas for
environmental protection during disposal or repair
even in a country where this law is not applicable.
CAUTION
Periodical maintenance part
To ensure long use, regularly inspect maintenance
parts and replace them based on the standard
replacement cycle.
Refer to the Instruction Manual enclosed with the
product for details.
CAUTION
Repair parts
To ensure use for a long time, always periodically
inspect the wear state, and replace the parts. Refer
to the Instruction Manual enclosed with the product
for details.
From air compressor
To the end
IN
OUT
Gate valve
Union tting
From air compressor
By-pass
piping
Dryer
To the end
Gate valve
Union tting
Dryer Dryer
IN
OUT
IN
OUT
