CKD SD300E User Manual

1
<SM-431626-A>
1-1. Specifications
Model
Item
SD
301E
-W
SD
302E
-W
SD
401E
-W
SD
402E
-W
SD
301D
-W
SD
302D
-W
SD
401D
-W
SD
402D
-W
Media Compressed air
Inlet pressure MPa 0.4～1.0
Proof pressure MPa 1.5
Inlet air temperature ℃ 5～50
Applicable
conditions
Ambient temperature ℃ 5～50
Outlet atmospheric dew point -15 -20
Inlet air flow /min(ANR)
75 150 300 450 125 250 500 750
Purge flow /min(ANR)
67 135 270 405 100 200 400 600
Inlet pressured dew point ℃ 25
Inlet air pressure MPa 0.7
Inlet air temperature ℃ 25
Ambient temperature ℃ 25
Standard
rating
Mass kg 0.6 0.9 1.4 1.8 0.6 0.9 1.4 1.8
Note：Water drop and oil(less than 0.1mg/m
3
)to be eliminated from the compressed air
supplied to Super dryer.

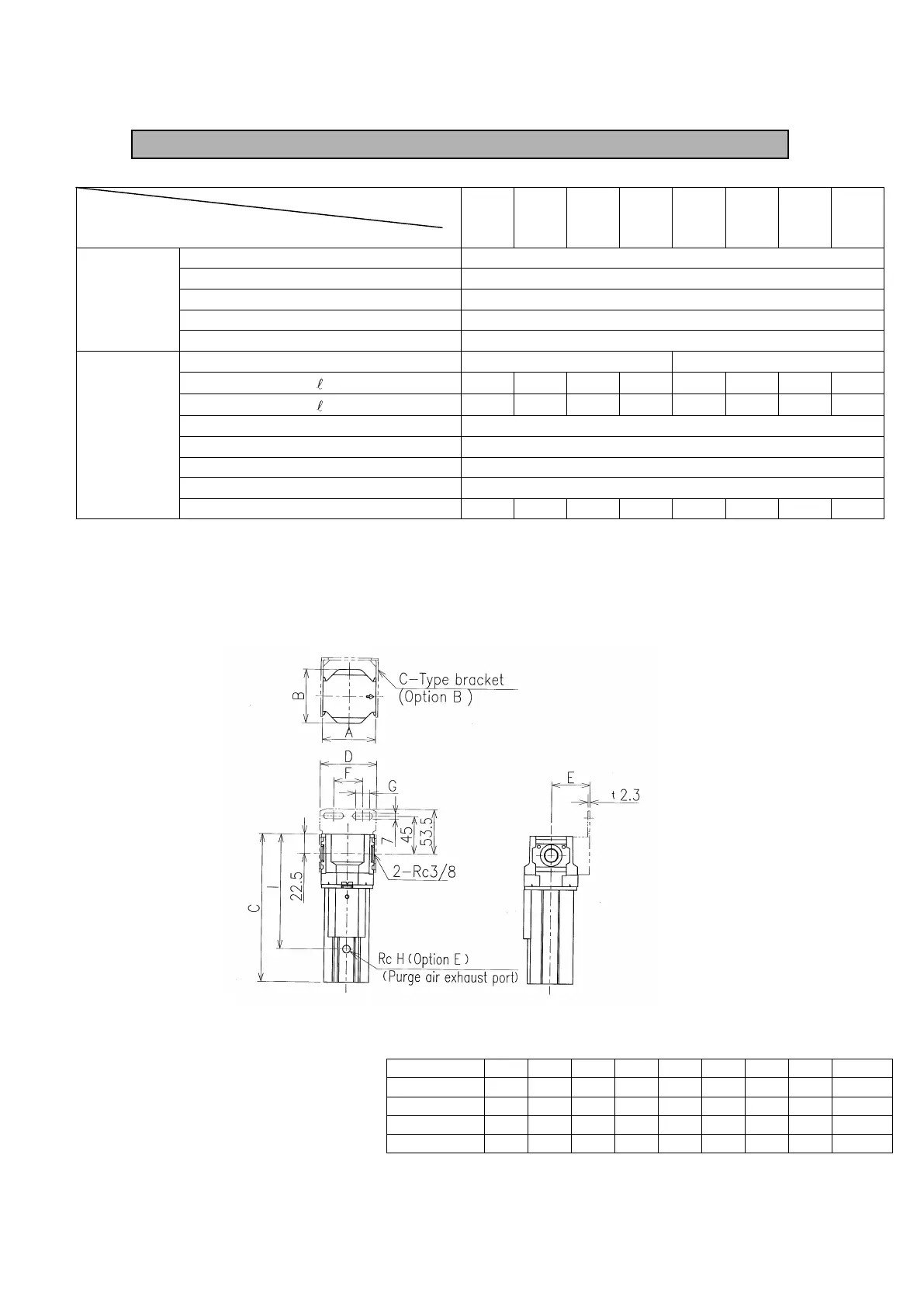

1-2. Outside drawing
Fig.1
Model A B C D E F G H I
SD301E/D-W 63 63 175 67 45
34.5 16.5
1/8
135.5
SD302E/D-W 63 63 245 67 45
34.5 16.5
1/8
135.5
SD401E/D-W 80 79 245 84 55 55 14 1/4 164
SD402E/D-W 80 79 315 84 55 55 14 1/4 164
１
１１
１
．
．．
．
