<SM-436126-A>
6

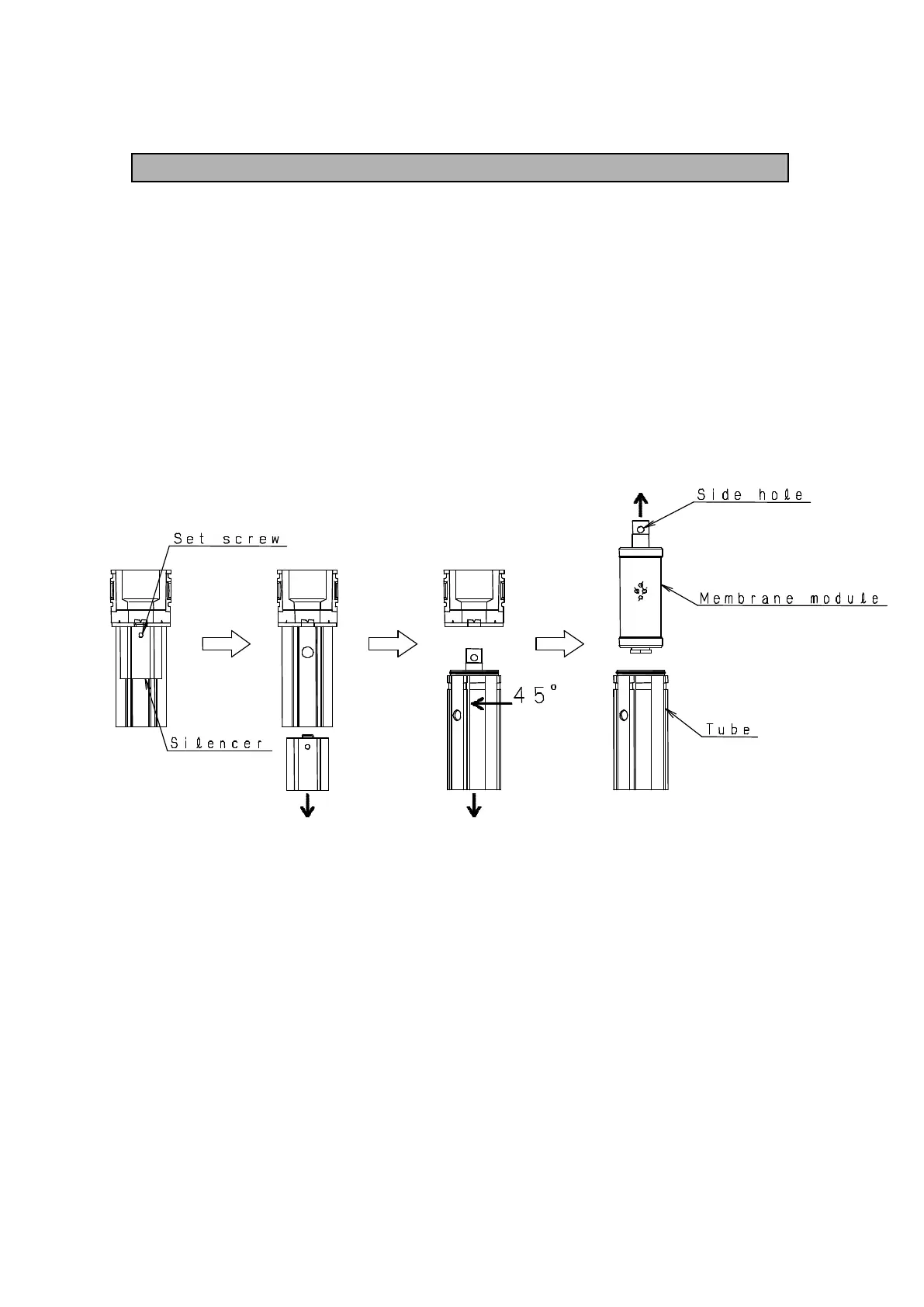

4-1.Membrane module replacement
1)
Ｓlide silencer downward by loosening two set screws at silencer portion with hex.
ｂar spanna. (Round nominated 2)
2)
Turn the tube about 45 degrees in clockwise or in counter clockwise direction
and pull it down to remove.
3)
Remove the membrane module in the down ward. It can be easily removed from
the tube using by the side hole in which a tool such as screw driver is pushed.
4)
Insert a new module to the bottom of the tube. Follow above steps in reverse
manner when the tube and silencer is assembled.
Fig.6
