CKD WKF2 Series User Manual

4
WFK2-005, 020, 050
Cable option
Common for WFK2
• Standard cable
Discrete option model No.:
WF-FL-280741
• Double ended connector cable
Discrete option model No.:
WF-FL-662453
Finished outer diameter 6 mm, core wire 0.5 mm
2
,
insulator outer diameter 1.9 mm
Bracket option
WFK2-005, 020, 050
Discrete option model No.:
WF-FL-315544
WFK2-100, 250
Discrete option model No.:
WF-FL-636342

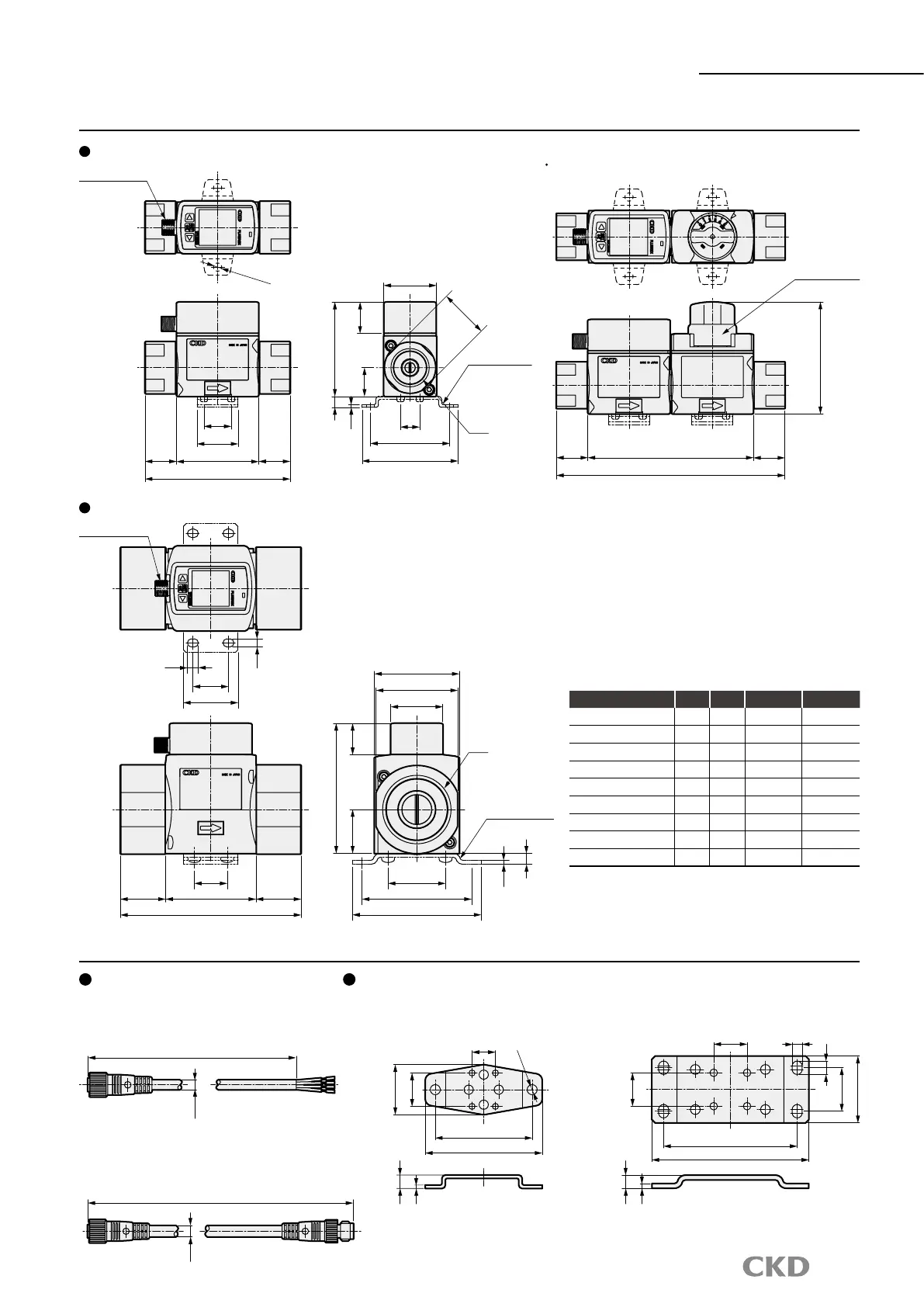

Dimensions
Optional dimensions
WFK2-100, 250
With manual valve (cock type)
Model No. A B C
Opposite side D
WFK2-[*1]A[*3]**N 90 15 Rc3/8 24
WFK2-[*1]B[*3]**N 90 15 Rc1/2 27
WFK2-[*1]C[*3]**N 106 23 Rc3/4 32
WFK2-[*2]D[*3]**N 106 20 Rc1 46
WFK2-[*2]E[*3]**N 125 29.5 Rc1 1/4 50
WFK2-[*2]F[*3]**N 132 33 Rc1 1/2 55
WFK2-[*1]A[*3]**A 151 15 Rc3/8 24
WFK2-[*1]B[*3]**A 151 15 Rc1/2 27
WFK2-[*1]C[*3]**A 167 23 Rc3/4 32
[*1]: Select from 005, 020, and 050
[*2]: Select from 100 and 250
[*3]:
Select from A, G, and N (dimension lines of the G screw
and NPT screw are the same)
Dimensions
WFK2
Series
M12 Connector
M12 Connector
20
26
40
14
C
42
14
20
58
80
70
94
38.5
Opposite
side D
38
62
Opposite side D
23
23
82
69
95
21
32
30 20 20 26 40
2
3
φ6
φ6
φ6
8
8
8 8
8
6
2 2
6
8
30
20
58
80
60
66
70
94
B
B
B
B
A
A
3000
3000
2-φ6
Bracket
Bracket
With manual
valve
(Option)
(Option)
(Option)
B B
A
121
C
