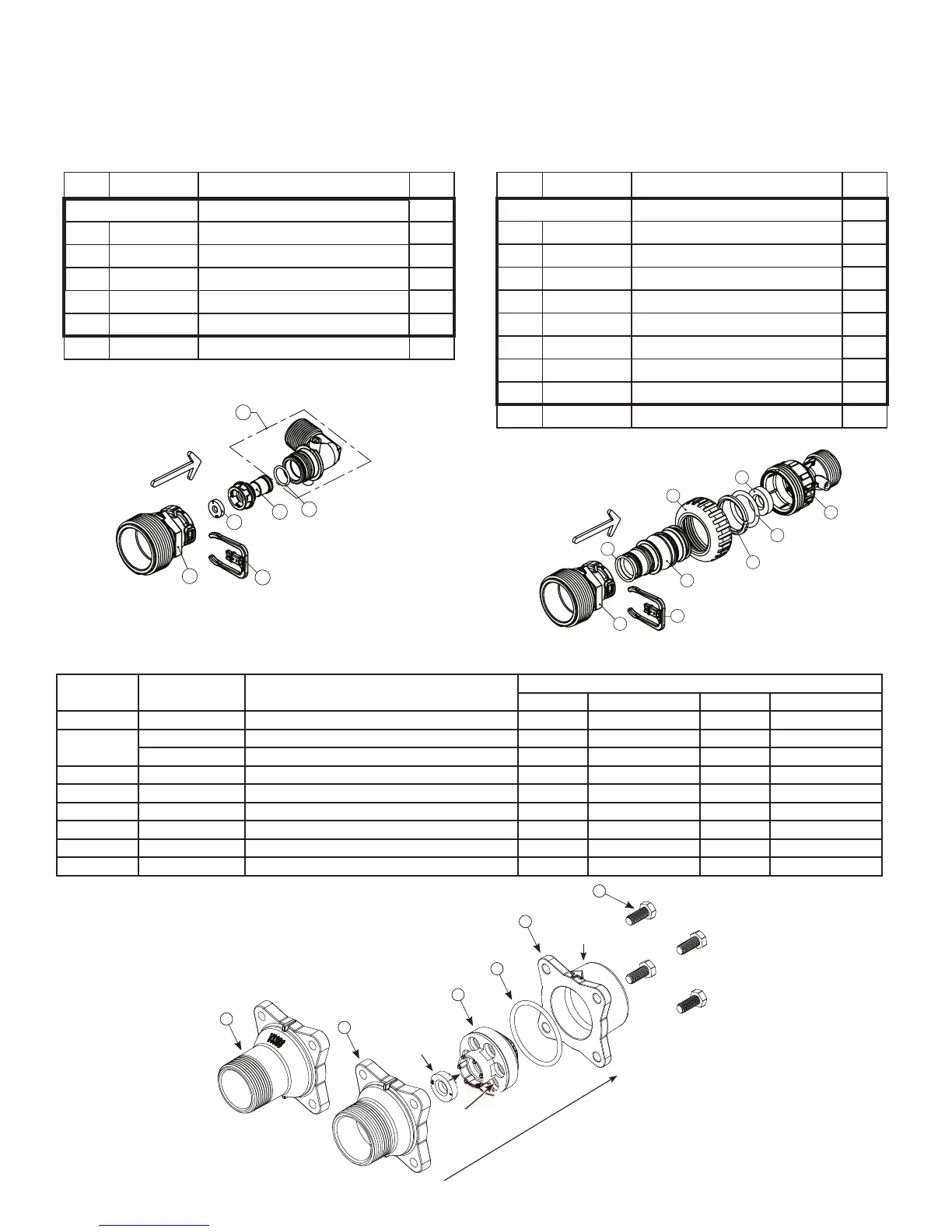

Clack Valves WS1.5 - Drain Line Flow Controls

Page 40 WS1.5", 2" and 2"QC Drawings and Service Manual
Item Part# Description Qty.
V3158-04 WS Drain Fitting, 3/4” Elbow
1 V3158-03 Drain Elbow, 3/4 NPT 1
2 V3159-01 DLFC Retainer Assembly 1
3 V3163 O-ring, -019 1
4 H4615 Locking Clip 1
5 V3983 WS2 DLFC Adapter 1
6 V3162-xx See DLFC Section 1
PVC Elbow, 0.7 - 10 GPM
Item Part# Description Qty.
V3008-05 WS Drain Fitting, 1” Straight
1 V3167 WS Drain Fitting Adapter, 1” NPT 1
2 V3166-01 Drain Fitting Body 1
3 V3151 WS1 Nut, QC 1
4 V3150 WS1 Split Ring 1
5 V3105 O-ring -215 1
6 V3163 O-ring -019 1
7 H4615 Locking Clip 1
8 V3983 WS2 DLFC Adapter 1
9 V3190-xx See DLFC Section 1
Inline Plastic, 9 - 25 GPM
MxF Stainless Steel, 9 - 85 GPM
3
2
6
4
5
1
Direction of Flow
2
5
4
6
1
3
9
8
7
Direction of Flow
All drain line fl ow control housings are shipped without fl ow control washers.
See drain line fl ow control washer section for available fl ow selections.
Drain Line Flow Controls
1
3
4
DLFC not supplied.
At least one V3190-XXX
must be installed in
center hole.
Plugs may be knocked out
or drilled to use up to six
V3162-XXX.
Direction of Flow
2
5
6
B indictates BSPT
N indicates NPT
Drawing
No.
Order No. Description
Quantity
V3079 V3079BSPT V3080 V3080BSPT
1 V3081 WS15 RETAINER DLFC ASY 1111
2
V3645 WS15 DLFC FLANGE OUTLET FNPT 1 1
V3645BSPT WS15 DLFC FLANGE OUTLET FBSPT 1 1
3 V3646 WS15 DLFC FLANGE INLET MNPT 1 1
4 V3388 WS125 DLFC FLANGE INLET MNPT 1 1
5 V3652 BOLT HEXHD S/S HCS 5/16-18x3/4 4444
6 V3441 O-RING 226 1111
7 V3162-xx See DLFC Section 0-6 0-6 0-6 0-6
8 V3190-xx See DLFC Section 1111
