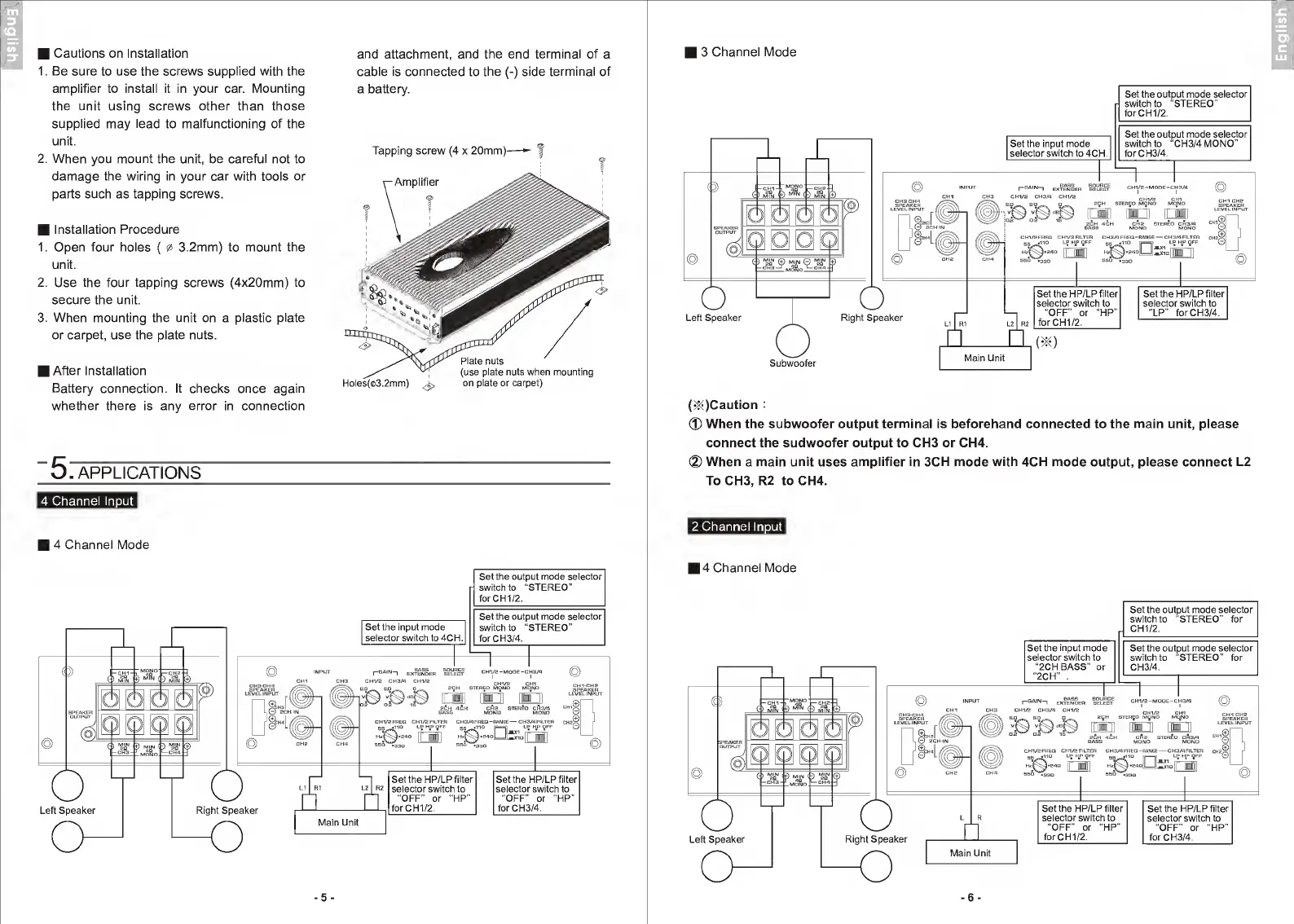

■ Cautions on Installation
1. Be sure to use the screws supplied with the
amplifier to install it in your car. Mounting
the unit using screws other than those
supplied may lead to malfunctioning of the
unit.
2. When you mount the unit, be careful not to
damage the wiring in your car with tools or
parts such as tapping screws.
■ Installation Procedure
1. Open four holes ( 0 3.2mm) to mount the
unit.
2. Use the four tapping screws (4x20mm) to
secure the unit.
3. When mounting the unit on a plastic plate
or carpet, use the plate nuts.
■ After Installation
Battery connection. It checks once again
whether there is any error in connection
and attachment, and the end terminal of a
cable is connected to the (-) side terminal of
a battery.
5 . APPLICATIONS
4 Channel Input
■ 4 Channel Mode
■ 3 Channel Mode
(jf-)Caution :
(D When the subwoofer output terminal Is beforehand connected to the main unit, please
connect the sudwoofer output to CH3 or CH4.
® When a main unit uses amplifier in 3CH mode with 4CH mode output, please connect L2
To CH3, R2 to CH4.
2 Channel Input
■ 4 Channel Mode
English

Clarion APA4320 Specifications

Audio Output

rated_output_4_channel_mode	80 W x 4
rated_output_3_channel_mode	80 W x 2 + 230 W x 1
rated_output_2_channel_mode	230 W x 2
maximum_power	160 W x 4
frequency_response	10 Hz ~ 50 kHz (+/- 1.0 dB)
harmonic_distortion	0.025% (1 kHz, 10 W, 4Ω)
s_n_rate	100 dB

Power Specifications

applicable_speaker_impedance	4Ω (2Ω-8Ω)
input_sensitivity	200 mV ~ 6, 000 mV
power_source_voltage	14.4 V
power_consumption	37 A (with 80 W x 4 rated output)
power_consumption_no_input	1.6 A (amplifier ON, no input)

Weight and Dimensions

external_dimensions	165(W) x 56(H) x 409(D) mm
weight	3.9 kg
